119-6653 - Toro Roll-Over Protection System Kit (2010 & After) ROLL-OVER PROTECTION SYSTEM ASSEMBLY NO. 119-6653 Parts Diagram

Roll-Over Protection System Kit

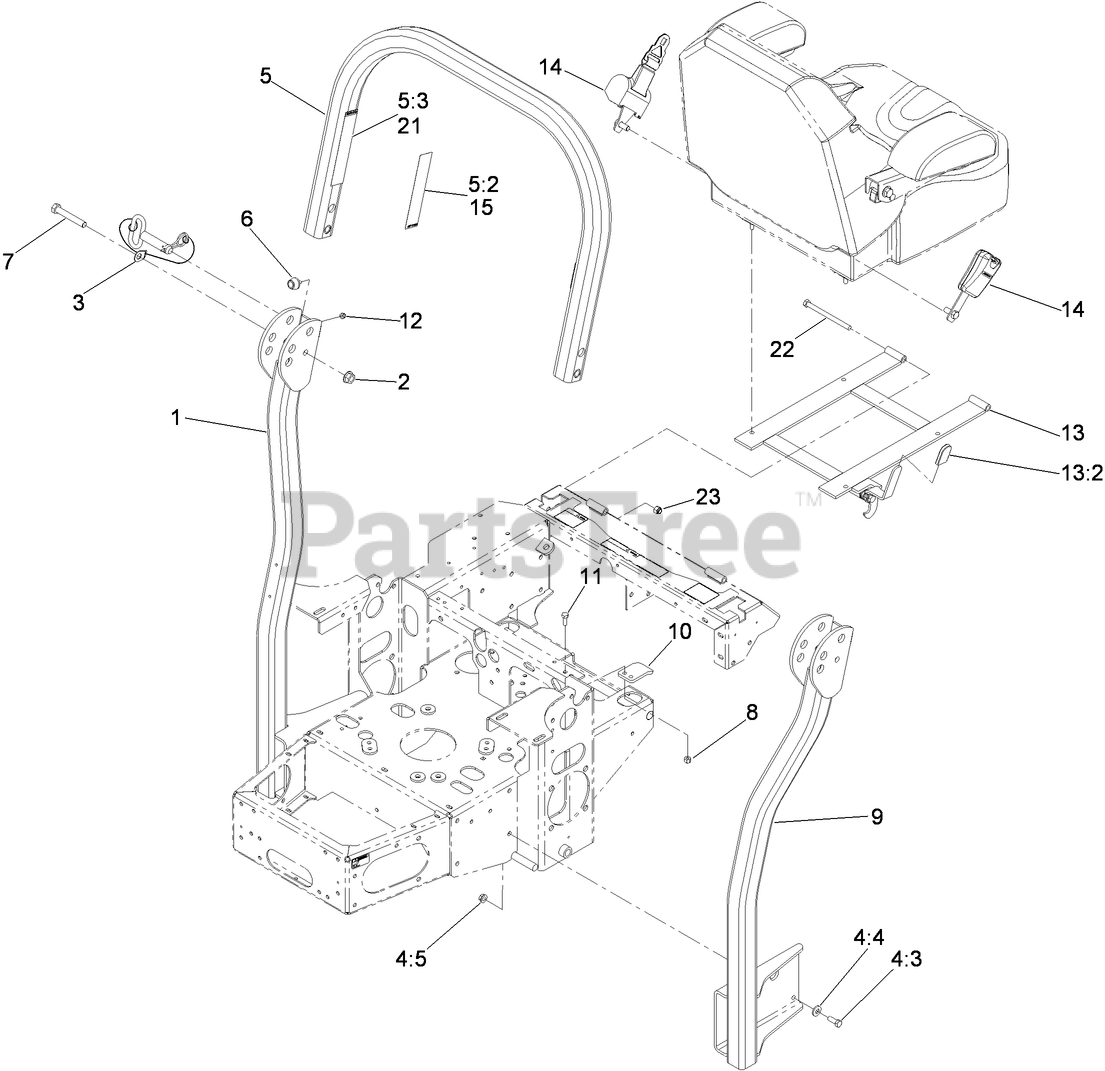

ROLL-OVER PROTECTION SYSTEM ASSEMBLY NO. 119-6653 Parts Diagram

  • Title

1

LH TUBE SUPPORT ASM

Note: Not serviced separately

$

$

Not available

2

Toro 32128-23

NUT-HF

$1.99

$

In Stock, Qty 20+

0

3

Toro 103-4553

PIN-FOLD, ROPS

$79.99

$

In Stock, only 3 left!

0

4:3

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

4:4

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4:5

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

4

BAG-BOLT, ROPS

Note: Not serviced separately

$

$

Not available

5

Upper Tube ASM

Note: Not serviced separately

$

$

Not available

5:2

Toro 107-2100

DECAL

$

$

Not available

5:3

Toro 107-2102

DECAL-WARNING, FOLDING ROPS

$8.99

$

In Stock, only 1 left!

0

6

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 19

0

7

Toro 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

RH TUBE SUPPORT ASM

Note: Not serviced separately

$

$

Not available

10

Toro 103-5961

CATCH-LATCH, SEAT

$

$

Not available

11

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

13

Toro 110-5850

SEAT FRAME AND LATCH ASM

$101.99

$

Usually ships in 3-6 days

0

13:2

Toro 103-4434

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

14

Toro 109-9805

SEAT BELT KIT

$318.99

$

Usually ships in 3-6 days

0

15

Toro 107-3069

DECAL-WARNING

$21.99

$

Usually ships in 3-6 days

0

21

Toro 107-2102

DECAL-WARNING, FOLDING ROPS

$8.99

$

In Stock, only 1 left!

0

22

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
