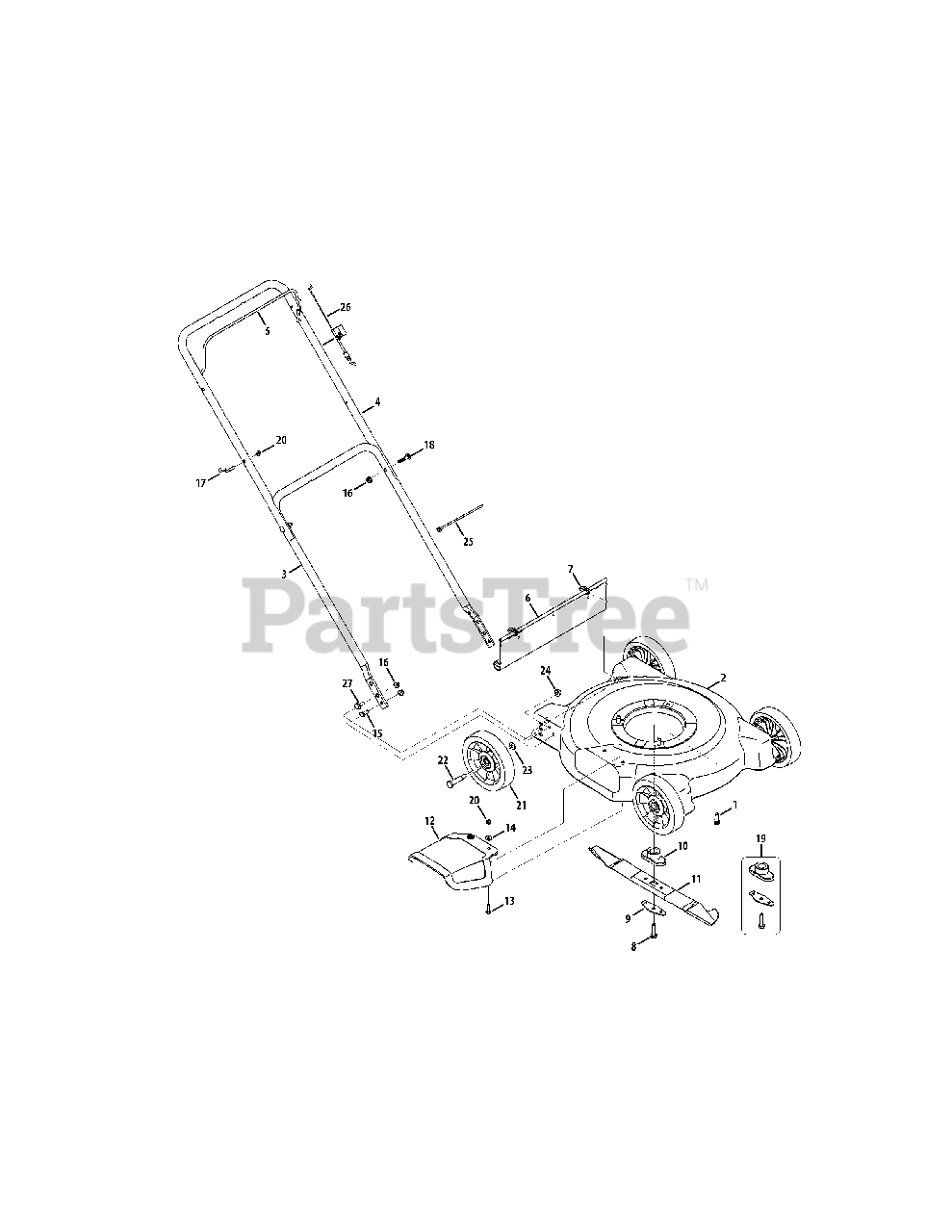

11A-020B006 - MTD 20" Walk-Behind Mower (2011) General Assembly 11A-02 Parts Diagram

20" Walk-Behind Mower

General Assembly 11A-02 Parts Diagram

  • Title
1

MTD 710-0654A

Hex Ind. Washer Screw, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 10

0

2

MTD 787-01759-0638

Cutting Deck, 20" - Red
(Superseded to 787-01759A-0638)

$131.99

$

Usually ships in 3-6 days

0

3

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$49.99

$

In Stock, Qty 19

0

$49.99

$

In Stock, Qty 19

0

4

MTD 749-1092A-0637

Upper Handle

$45.99

$

In Stock, Qty 5

0

5

MTD 747-1161A-0637

Blade Control

$12.99

$

In Stock, Qty 20+

0

6

MTD 731-06953

Rear Flap

$11.99

$

In Stock, Qty 12

0

7

MTD 732-04631

Hinge Clip
(Superseded to 732-04631A)

$3.99

$

In Stock, Qty 11

0

8

MTD 710-1044

Screw, 3/8-24 x 1.5"

$3.99

$

In Stock, Qty 20+

0

9

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

10

MTD 748-0376E

Blade Adapter

$19.99

$

In Stock, Qty 20+

0

11

MTD 942-0640

Cutting Blade

$28.99

$

In Stock, Qty 16

0

12

MTD 731-0064

Discharge Chute
(Superseded to 731-0064A)

$21.99

$

In Stock, Qty 5

0

13

MTD 710-0932

Carriage Screw, 1/4-20 x 1.0"
(Superseded to 710-0932A)

$3.99

$

In Stock, Qty 5

0

14

MTD 736-0173

Flat Washer

$3.99

$

In Stock, Qty 12

0

15

MTD 710-3008

Hex Screw, 5/16-18 x .75"

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-0262

Carriage Bolt, 5/16-18 x 1.5"

$3.99

$

In Stock, Qty 14

0

19

MTD 753-06315

Blade Adapter Kit (Incl. Ref. 8-10)

$15.99

$

In Stock, Qty 13

0

20

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

21

MTD 734-04063

Wheel, 7" Star-Dia., Oys. Gray
(Superseded to 734-04063B)

$16.99

$

In Stock, Qty 20+

0

22

MTD 938-0533

Shoulder Screw, .498 x 1.635
(Superseded to 738-0533)

$7.49

$

Usually ships in 3-6 days

0

23

MTD 736-0105

Bell Washer

$3.99

$

In Stock, Qty 20+

0

24

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

25

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 3 left!

0

26

MTD 946-0957

Control Cable, B&S Engine 37.25"

$16.99

$

In Stock, Qty 20+

0

26

MTD 946-04703

Control Cable, MTD OHV Engine 48"
(Superseded to 946-04703A)

$19.99

$

In Stock, Qty 20+

0

27

MTD 938-04033

Shoulder Screw, 5/16-18 x.428"
(Superseded to 738-04033)

$

$

Not available
