11A-032A752 - Yard Machines Walk-Behind Mower (2005) (Walmart)

Walk-Behind Mower

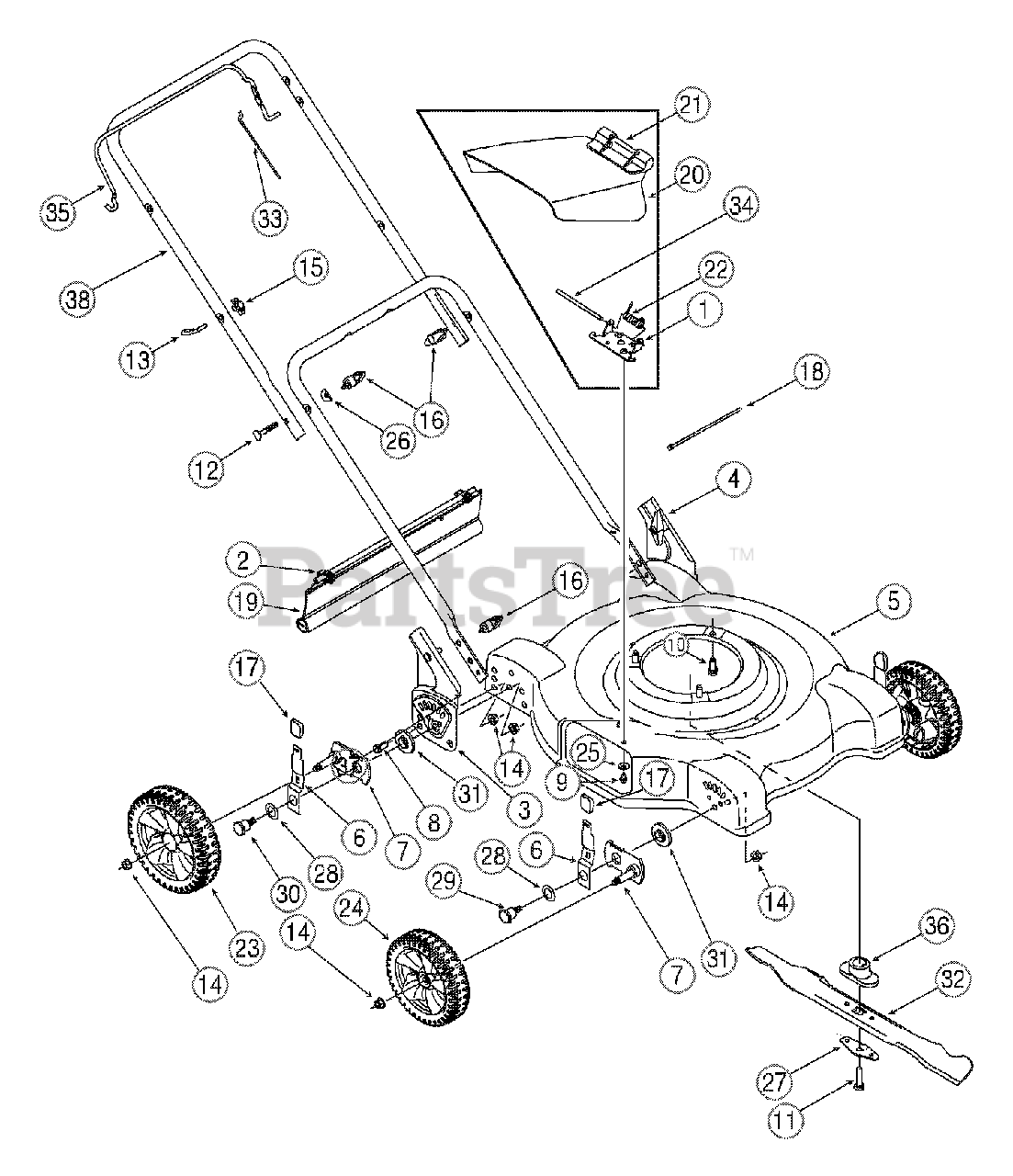

11A-032A752 - Yard Machines Walk-Behind Mower (2005) (Walmart) > Parts Diagrams (1) > General Assembly

  • Title
17032A

1

Chute Hinge

Part# 17032A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.96

17098

2

Hinge Clip

Part# 17098 (Superseded to 17098P)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.03

682-3064

3

Handle Bracket Assembly RH

Part# 682-3064

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET ASM-HNDL RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.05

682-3065

4

Handle Bracket Assembly LH

Part# 682-3065

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET ASM-HNDL LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.05

787-01097

5

Deck Assembly 22" (no logo)

Part# 787-01097

OEM Warranty Repair Part for MTD

Variations

SILVER FLAKE (0629)

KIT-DECK REPLACE F

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

KIT-DECK REPLACE F

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

KIT-DECK REPLACE F

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

BLACK JACK (0691)

KIT-DECK REPLACE F

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Not available

MASTERCRAFT GREEN (0709)

KIT-DECK REPLACE F

Part# MASTERCRAFT GREEN (0709)

OEM Warranty Repair Part for MTD

Not available

687-02051

6

Lever Assembly

Part# 687-02051 (Superseded to 987-02051)

Note: (includes Ref. #17)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.63

687-02094

7

Pivot Arm

Part# 687-02094 (Superseded to 987-02094)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.48

710-0216

8

Hex Cap Screw 3/8-16 x .75

Part# 710-0216

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.12

710-0599

9

TT Screw 1/4-20 x 0.5"

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-0654A

10

TT Screw 3/8-16 x 1.0

Part# 710-0654A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

710-1044

11

Hex Cap Screw 3/8-24 x 1.5

Part# 710-1044

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.79

710-1174

12

Carriage Bolt 5/16-18 x 2.0

Part# 710-1174

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.03

710-1205

13

Eye Bolt

Part# 710-1205

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

712-0431

14

Lock Nut 3/8-16

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.45

720-0279

15

Wing Nut

Part# 720-0279

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

720-0284

16

Wing Nut

Part# 720-0284 (Superseded to 920-0284)

OEM Warranty Repair Part for MTD

Not available

720-0426

17

Height Adjuster Knob

Part# 720-0426

OEM Warranty Repair Part for MTD

Not available

725-0157

18

Cable Tie

Part# 725-0157

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.74

731-04019

19

Trail Shield

Part# 731-04019

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.34

731-1034B

20

Hinged Chute Deflector Assembly

Part# 731-1034B (Superseded to 931-1034B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $51.19

731-1035B

21

Chute Deflector

Part# 731-1035B (Superseded to 931-1034B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $51.19

732-1014

22

Torsion Spring

Part# 732-1014 (Superseded to 732-1014C)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.87

734-1987

23

Rear Wheel 8 x 1.8

Part# 734-1987

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $17.37

734-1988

24

Front Wheel 7 x 1.8

Part# 734-1988

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.08

736-0270

25

Bell Washer .265 ID x .75 OD

Part# 736-0270

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0451

26

Saddle Washer .320 ID x .93 OD

Part# 736-0451 (Superseded to 936-0451)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

736-0524B

27

Blade Bell Support

Part# 736-0524B

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.87

736-0741

28

Bell Washer .760 ID x 1.25 OD

Part# 736-0741

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.21

738-1172

39

Shoulder Screw

Part# 738-1172

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.02

738-1173

30

Shoulder Screw

Part# 738-1173

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.69

741-0751

31

Height Adjuster Bearing

Part# 741-0751

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.03

742-0642A

32

Standard Blade 22"

Part# 742-0642A (Superseded to 942-0642A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $22.43

746-0957

33

Blade Control Cable - 37.25"

Part# 746-0957 (Superseded to 946-0957)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.95

746-0946

Blade Control Cable - 48.25"

Part# 746-0946 (Superseded to 946-0946)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $14.58

747-0710

34

Hinge Pin

Part# 747-0710 (Superseded to 747-0710A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

747-1161A

35

Blade Control Handle

Part# 747-1161A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.18

Variations

POWDER BLACK (0637)

Operator Bail, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.18

748-0376C

36

Blade Adapter

Part# 748-0376C (Superseded to 748-0376E)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.19

749-04037

37

Lower Handle

Part# 749-04037

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Long Lower Handle, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $40.15

749-1092A

38

Upper Handle

Part# 749-1092A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.87

Variations

POWDER BLACK (0637)

Upper Handle, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $36.87

MTD/TROY-BILT RED (0638)

HANDLE-UPPER

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.87
