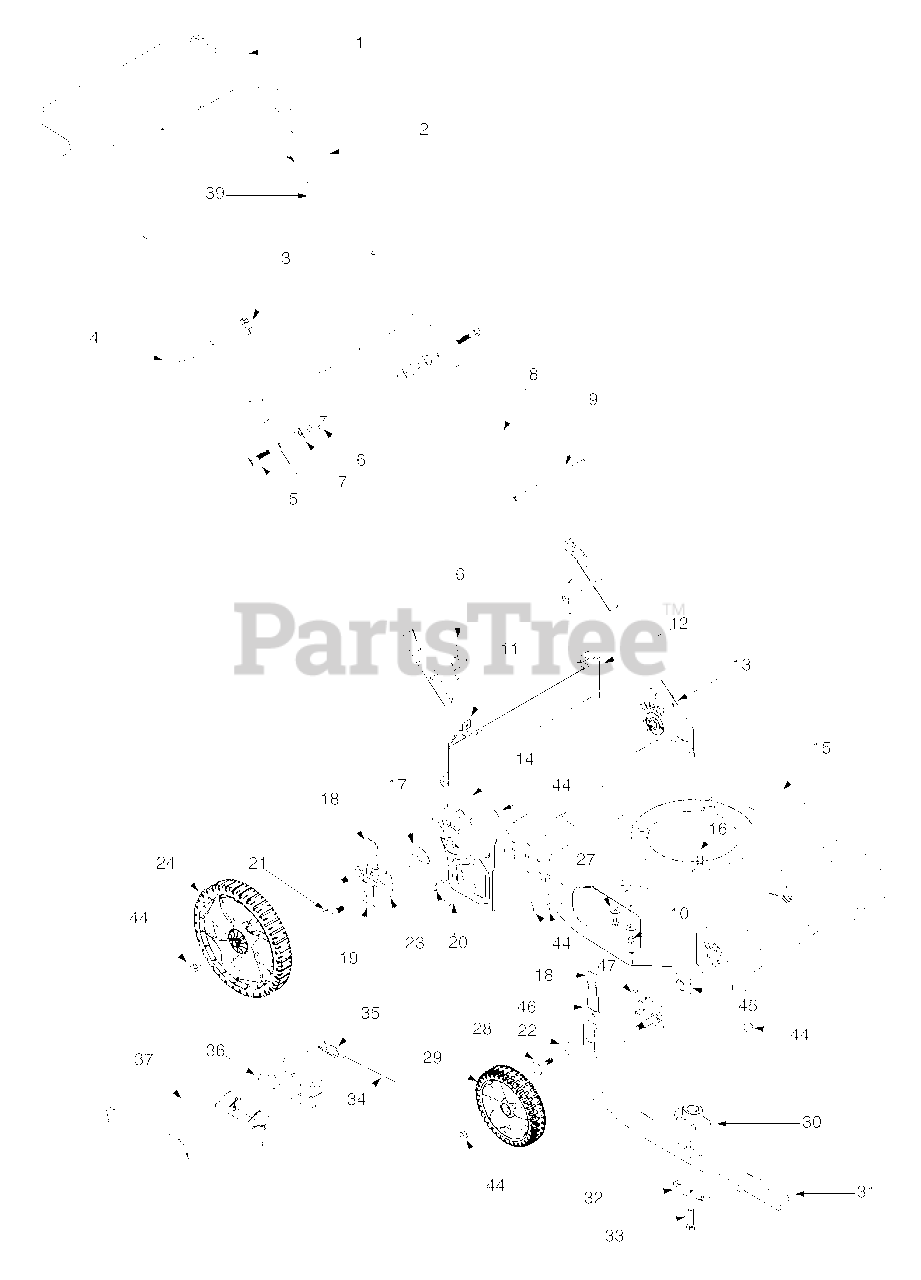

11A-054D731 - Huskee Walk-Behind Mower (2005) (Tractor Supply) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 6

0

$14.99

$

In Stock, Qty 6

0

2

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$51.99

$

In Stock, only 3 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$51.99

$

Usually ships in 3-6 days

0

$51.99

$

Usually ships in 3-6 days

0

3

MTD 720-0279

Wing Nut

$4.99

$

In Stock, Qty 15

0

4

MTD 710-1205

Eye Bolt

$4.49

$

In Stock, Qty 12

0

5

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.99

$

In Stock, Qty 16

0

6

MTD 720-0284

Wing Nut

$7.49

$

In Stock, Qty 20+

0

7

MTD 736-0451

Shoulder Washer.320 ID x.93 OD

$4.99

$

In Stock, Qty 8

0

8

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$56.99

$

In Stock, only 2 left!

0

$56.99

$

In Stock, only 2 left!

0

9

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

11

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

12

MTD 731-2537

Trail Shield

$21.99

$

Usually ships in 3-6 days

0

13

MTD 682-3063A

Handle Bracket Assembly LH

Variations

MTD 682-3063A-0637

No Longer Available BRACKET-HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 682-3062A

Handle Bracket Assembly RH
(Superseded to 982-3062A)

Variations

MTD 682-3062A-0637

BRACKET-HANDLE RH - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

15

MTD 787-01097

22" Deck Assembly
(Superseded to 787-01097A)

Variations

MTD 787-01097-0629

KIT-DECK REPLACE F - SILVER FLAKE (0629)

$121.99

$

Usually ships in 3-6 days

0

MTD 787-01097-0638

KIT-DECK REPLACE F - MTD/TROY-BILT RED (0638)

$121.99

$

Usually ships in 3-6 days

0

MTD 787-01097-0665

KIT-DECK REPLACE F - YARDMAN GREEN (0665)

$121.99

$

Usually ships in 3-6 days

0

MTD 787-01097-0691

KIT-DECK REPLACE F - BLACK JACK (0691)

$121.99

$

Usually ships in 3-6 days

0

MTD 787-01097-0709

KIT-DECK REPLACE F - MASTERCRAFT GREEN (0709)

$121.99

$

Usually ships in 3-6 days

0

$121.99

$

Usually ships in 3-6 days

0

16

MTD 710-0654A

TT Screw 3/8-16 x 1.0

$4.99

$

In Stock, Qty 20+

0

17

MTD 741-0717

Thrust Bearing

$

$

Not available

18

MTD 720-0426

Height Adjuster Knob
(Superseded to 731-13116-1)

$14.99

$

In Stock, only 1 left!

0

19

MTD 687-02052

Lever Assembly

Note: (Includes Ref. #18)

$

$

Not available

20

MTD 710-0216

Hex Cap Screw 3/8-16 x.75

$4.49

$

In Stock, Qty 8

0

21

MTD 738-1127

Shoulder Screw
(Superseded to 738-1127B)

$7.99

$

In Stock, Qty 14

0

22

MTD 736-0741

Bell Washer.760 ID x 1.25 OD

$4.99

$

In Stock, only 1 left!

0

23

MTD 687-02080

Rear Pivot Arm Assembly - RH

$

$

Not available

MTD 687-02079

Rear Pivot Arm Assembly - LH

$16.99

$

Usually ships in 3-6 days

0

24

MTD 734-04082

Rear Wheel 12 x 1.8

$48.99

$

In Stock, only 2 left!

0

27

MTD 736-0270

Bell Washer.265 ID x.75 OD

$4.49

$

In Stock, Qty 20+

0

28

MTD 738-1172

Shoulder Screw

$6.49

$

Usually ships in 3-6 days

0

29

MTD 734-1988

Front Wheel 7 x 1.8

$21.99

$

In Stock, only 2 left!

0

30

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$21.99

$

In Stock, Qty 20+

0

31

MTD 742-0642A

Standard Blade 22"
(Superseded to 942-0642A)

$27.99

$

In Stock, only 3 left!

0

32

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$6.49

$

In Stock, Qty 20+

0

33

MTD 710-1044

Hex Cap Screw 3/8-24 x 1.5

$4.49

$

In Stock, Qty 20+

0

34

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

35

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$8.49

$

In Stock, Qty 20+

0

36

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 1 left!

0

37

MTD 731-1034B

Hinged Chute Deflector
(Superseded to 931-1034B)

Note: (Includes 34, 35, & 36)

$

$

Not available

39

MTD 746-0957

Blade Control Cable - 37.25" Lg.
(Superseded to 946-0957)

$18.99

$

In Stock, Qty 20+

0

44

MTD 712-0431

Lock Nut 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

45

MTD 741-0751

Height Adjuster Bearing

$9.49

$

In Stock, only 1 left!

0

46

MTD 687-02051

Lever Assembly

Note: (Includes Ref. # 18)

$9.99

$

Usually ships in 3-6 days

0

47

MTD 687-02094

Pivot Arm
(Superseded to 987-02094)

$30.99

$

Usually ships in 3-6 days

0
