11A-071D304 - Lawnflite Walk-Behind Mower (1998) (Target) Handle & Engine Parts Diagram

Walk-Behind Mower

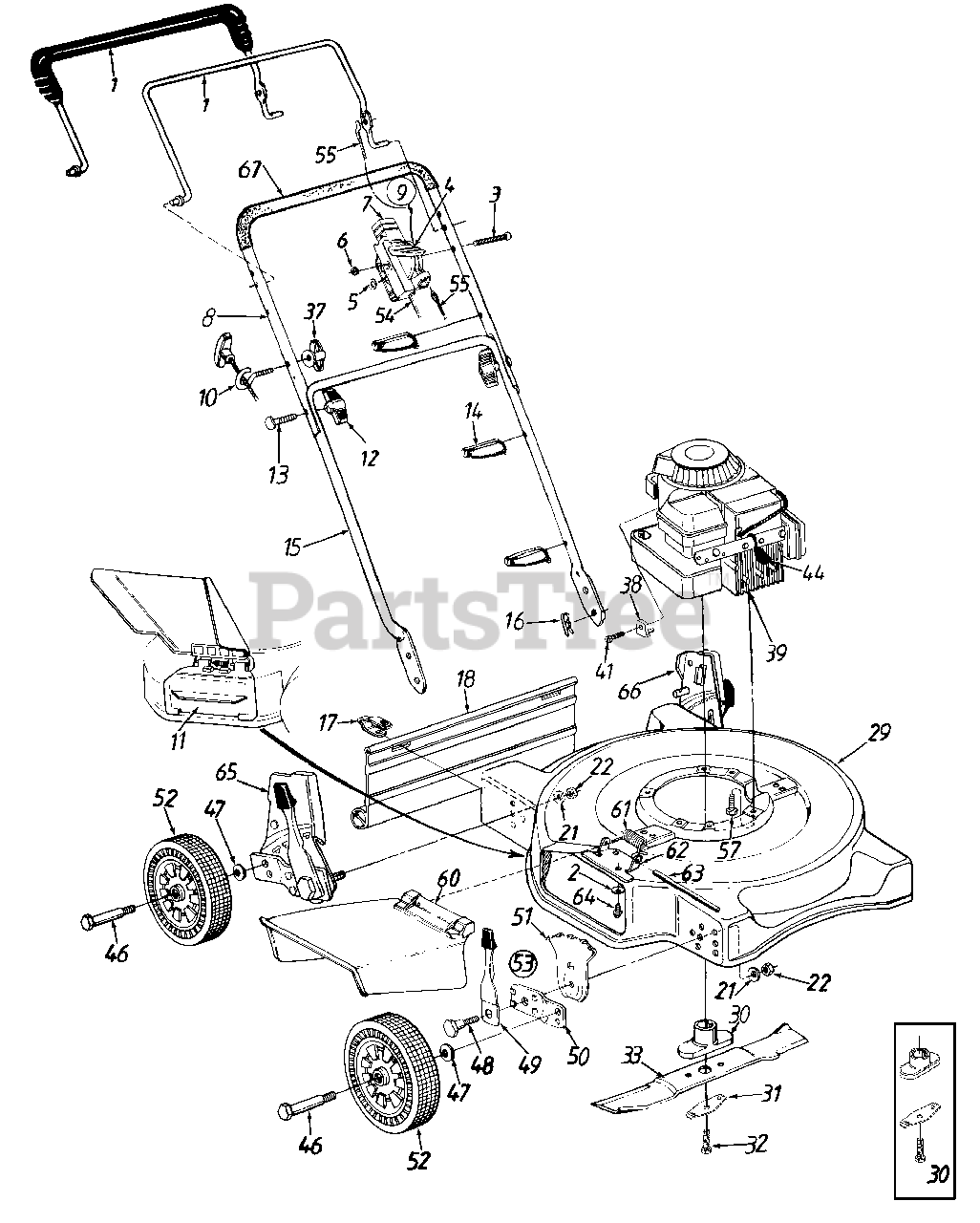

Handle & Engine Parts Diagram

  • Title
1

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Note: (Std.)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle Ass'y. w/Plastic
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

MTD 747-0615

Control Handle Ass'y.
(Superseded to 747-0956-0637)

Note: (Opt. Gull Wing-Not Illustrated)

$55.99

$

Usually ships in 3-6 days

0

2

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 3 left!

0

4

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

5

MTD 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

6

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

7

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

8

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 749-0920A

Upper Handle

Note: (Opt. Gull Wing-Not Illustrated)

Variations

MTD 749-0920A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 3,4,5,6,7

$36.99

$

In Stock, only 1 left!

0

10

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

11

MTD 731-1386A

Mulching Plug
(Superseded to 731-1386D)

Note: (Optional)

$

$

Not available

12

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

13

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

15

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

16

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

17

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

MTD 731-0872A

Rear Flap (20")
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

MTD 731-1026

Rear Flap (22")

$

$

Not available

21

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

29

MTD 682-0033

20" Deck Ass'y.

Variations

MTD 682-0033-0480

No Longer Available DECK ASM- - BRILLIANT GREEN (0480)

$

$

Not available

MTD 682-0033-0483

No Longer Available DECK ASM- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0033-0498

No Longer Available DECK ASM- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-0033-0499

No Longer Available DECK ASM- - CUB BEIGE (0499)

$

$

Not available

MTD 682-0033-0629

No Longer Available DECK ASM- - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0033-0638

No Longer Available DECK ASM- - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0033-0662

No Longer Available DECK ASM- - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0033-0665

No Longer Available DECK ASM- - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0033-0692

No Longer Available DECK ASM- - AGWAY BLUE (0692)

$

$

Not available

$

$

MTD 682-0221A

22" Deck Ass'y.

Variations

MTD 682-0221A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0221A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-0221A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0221A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0221A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0221A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

30

MTD 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0

31

MTD 736-0524A

Support, Bell-Blade
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 17

0

32

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 7

0

33

MTD 742-0640

20" Blade
(Superseded to 942-0640)

$28.99

$

In Stock, only 1 left!

0

MTD 742-0642

22" Blade
(Superseded to 942-0642A)

$26.99

$

In Stock, only 1 left!

0

MTD 742-0740

20" Mulching Blade
(Superseded to 942-0740)

Note: (Optional)

$23.99

$

In Stock, only 3 left!

0

MTD 742-0742

22" Mulching Blade
(Superseded to 942-0742A)

Note: (Optional)

$24.99

$

In Stock, only 1 left!

0

37

MTD 720-0279

Wing Nut 1/4-20 Thd.

$4.49

$

Usually ships in 3-6 days

0

38

MTD 751B213146

Cable Clamp
(Superseded to BS-690798)

Note: (B&S)

$5.49

$

In Stock, only 1 left!

0

MTD 7510007775

Casing Clamp
(Superseded to TC-27793)

Note: (Tec)

$1.99

$

In Stock, only 2 left!

0

39

Engine

$

$

Not available

41

MTD 710-1237

Hex Wash. Hd. Tap Scr. #10-32 x .62 Lg.

Note: (B&S)

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0871

Hex Sems Scr. #10-32 x .3" Lg

Note: (Tec)

$

$

Not available

44

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

46

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

48

MTD 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, only 4 left!

0

49

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

MTD 634-0020

Wheel Assy Comp. (8") Wheels w/o Bearings Grey - Bar Tread

$39.99

$

In Stock, Qty 6

0

52

MTD 734-1841

Wheel Assy Comp. (8") Wheels w/o Bearings Aero Grey P.B. - Bar Tread
(Superseded to 934-1841)

$

$

Not available

52

MTD 734-1779

Wheel Assy Comp. (7") Wheels w/o Bearings White - Diamond Tread
(Superseded to 734-1779A)

$20.99

$

In Stock, only 3 left!

0

52

MTD 734-1780

Wheel Assy Comp. (8") Wheels w/o Bearings White - Diamond Tread
(Superseded to 734-04585)

$20.99

$

In Stock, only 1 left!

0

52

MTD 734-1781

Wheel Assy Comp. (8") Wheels w/o Bearings Grey - Diamond Tread

$32.99

$

In Stock, Qty 7

0

52

MTD 734-1826

Wheel Assy Comp. (8") Wheels w/o Bearings Grey - S-Wave Tread

$33.99

$

In Stock, only 2 left!

0

52

MTD 734-1819

Wheel Assy Comp. Wheels with Bearings Grey - Link Tread
(Superseded to 734-1978)

$48.99

$

Usually ships in 3-6 days

0

52

MTD 734-1268

Wheel Assy Comp. Wheels with Bearings Grey - T-Tread

$71.99

$

Usually ships in 3-6 days

0

MTD 741-0484

Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

53

MTD 14578

Height Adj. Ass'y. Comp.-R.F.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp.-L.F.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

54

MTD 746-0842

Throttle Cable-51"
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0843

Throttle Cable-55"
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0847

Throttle Cable-45"
(Superseded to 946-1115)

$28.99

$

In Stock, only 1 left!

0

MTD 746-0844

Throttle Cable-39"

$

$

Not available

55

MTD 746-0550

Control Cable-39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

MTD 746-0552

Control Cable 49"
(Superseded to 946-0552)

$41.99

$

Usually ships in 3-6 days

0

MTD 746-0553

Control Cable 36"
(Superseded to 946-0553)

$24.99

$

Usually ships in 3-6 days

0

MTD 746-0737

Control Cable-51"
(Superseded to 946-0737)

$28.99

$

In Stock, only 1 left!

0

57

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, only 3 left!

0

60

MTD 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 6

0

61

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

62

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

63

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

64

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

65

MTD 682-3024

Height Adj. Ass'y. Comp.- R.R.
(Superseded to 987-02106A)

Variations

MTD 682-3024-0637

Handle Bracket Assembly, RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

66

MTD 682-3025

Height Adj. Ass'y. Comp.- L.R.
(Superseded to 987-02107A)

Variations

MTD 682-3025-0637

Handle and Height Bracket Assembly - POWDER BLACK (0637)

$45.99

$

In Stock, only 3 left!

0

$45.99

$

In Stock, only 3 left!

0

67

MTD 720-0295

Foam Grip

Note: (Opt.)

$33.99

$

Usually ships in 3-6 days

0

MTD 720-0249

Hub Cap Grey 3 1/2" Dia.
(Superseded to 920-0249)

Note: (Opt.) (N/I)

$

$

Not available

MTD 731-0354

Hub Cap Black 4 1/2" Dia.

Note: (Opt.)

$

$

Not available

MTD 731-0981A

Hub Cap Grey 5 1/2" Dia.
(Superseded to 731-0981C)

Note: (Opt.)

$10.99

$

Usually ships in 3-6 days

0

MTD 731-0982A

Hub Cap Beige 5 1/2" Dia.
(Superseded to 731-0982C)

Note: (Opt.)

$11.99

$

In Stock, Qty 18

0
