11A-106C401 - Yard-Man Walk-Behind Mower (1997) General Assembly Parts Diagram

Walk-Behind Mower

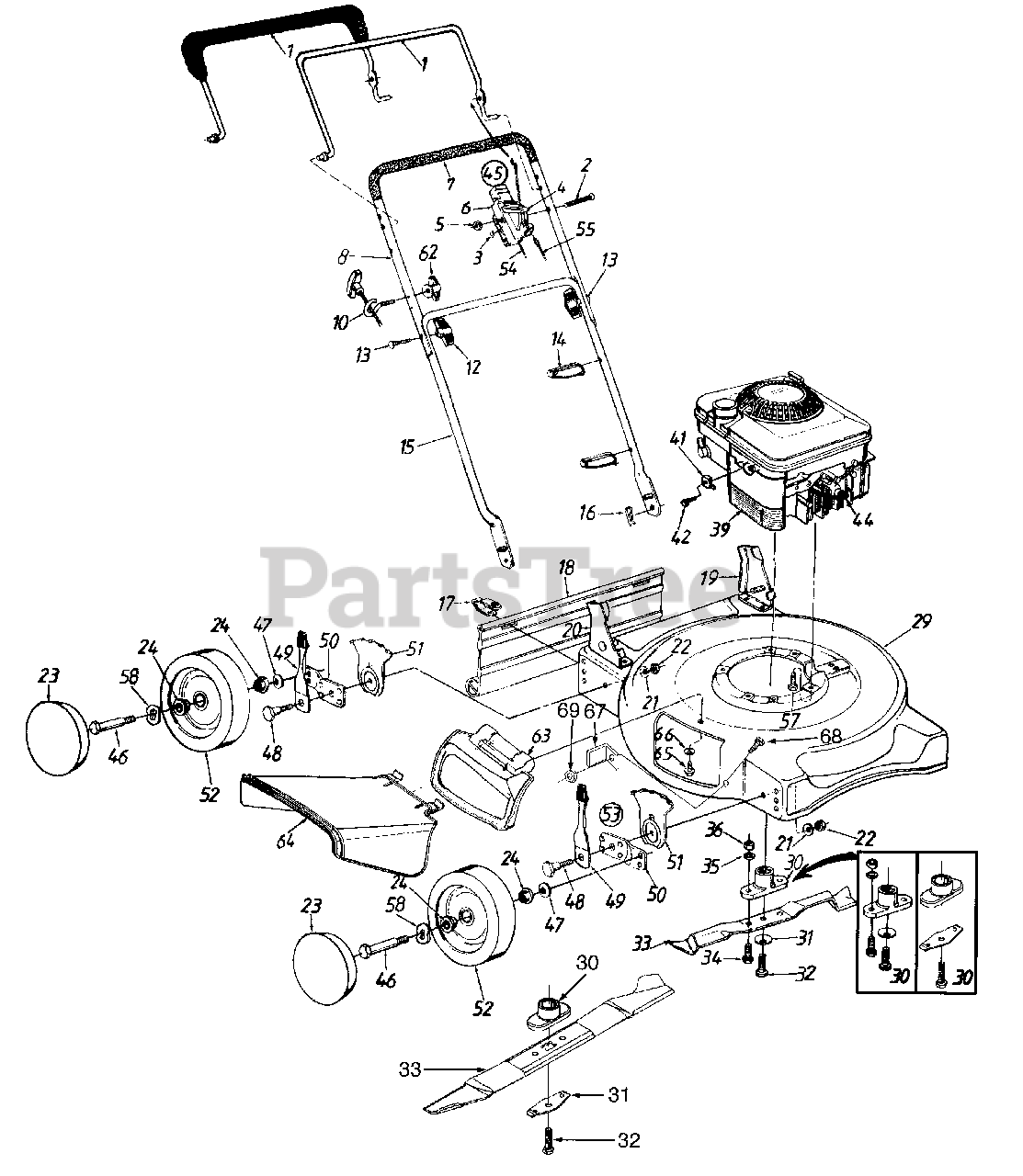

General Assembly Parts Diagram

  • Title

1

MTD 647-0004

Control Handle Ass'y. (Dlxe)
(Superseded to 747-0824B-0637)

$69.99

$

Usually ships in 3-6 days

0

MTD 747-0824

Control Handle Ass'y. (Std.)
(Superseded to 747-0824B-0637)

Variations

747-0824-0637

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

2

MTD 710-0605

Oval C-Sunk Scr.

$4.99

$

In Stock, only 2 left!

0

3

MTD 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$7.49

$

Usually ships in 3-6 days

0

4

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.99

$

In Stock, only 1 left!

0

5

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, only 3 left!

0

6

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.99

$

In Stock, Qty 5

0

7

MTD 720-0295

Grip

Note: (Optional)

$35.99

$

Usually ships in 3-6 days

0

8

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

749-0538C-0637

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 710-1205

Rope Guide

$4.49

$

In Stock, Qty 10

0

12

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 6

0

13

MTD 710-1174

Cur. Hd. Bolt 5/16 - 18 x 2" Lg.

$7.99

$

In Stock, Qty 16

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

749-0928-0637

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

$35.99

$

In Stock, only 1 left!

0

16

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 16

0

17

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

MTD 731-1447

Rear Flap

$

$

Not available

19

MTD 12935B

Handle Bracket Ass'y. - L.H.

Note: (Use 710-0603 bolt to secure bracket)

Variations

12935B-0637

MTD 12935B-0637

Handle Brkt. Ass'y L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 12936B

Handle Bracket Ass'y. - R.H.

Note: (Use 710-0603 bolt to secure bracket)

Variations

12936B-0637

MTD 12936B-0637

Handle Brkt. Ass'y R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 710-0603

Bolt

$5.49

$

Usually ships in 3-6 days

0

21

MTD 736-0356

Bell - Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

23

Hub Cap

$

$

Not available

24

Bearing

Note: (Optional)

$

$

Not available

29

MTD 682-0016

20" Deck Ass'y.

$

$

Currently unavailable

30

MTD 753-0484

Blade Adapter Kit

$24.99

$

In Stock, only 4 left!

0

MTD 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$17.99

$

In Stock, Qty 8

0

31

MTD 736-0452

Bell-Wash. .39" I.D

$4.99

$

In Stock, only 4 left!

0

MTD 736-0524A

Support, Bell, Blade
(Superseded to 736-0524B-1)

$6.49

$

In Stock, Qty 20+

0

32

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 742-0720

20" Mulching Blade
(Superseded to 742-0720-0637)

$30.99

$

Usually ships in 3-6 days

0

MTD 742-0740

20" Mulching Blade
(Superseded to 942-0740)

$24.99

$

In Stock, only 1 left!

0

34

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$5.49

$

Usually ships in 3-6 days

0

35

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

36

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 7

0

39

Engine

$

$

Not available

41

MTD 751B213146

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, Qty 9

0

42

MTD 710-1237

Hex Self-Tp Scr. #10-32 x .62"

$4.99

$

Usually ships in 3-6 days

0

?43

MTD 710-0607

Scr., Hex Wash. Tap

$6.99

$

In Stock, Qty 20+

0

44

MTD 735-0639

Spark Plug Boot

$

$

Not available

45

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 2,3, 4, 5, 6)

$38.99

$

In Stock, only 4 left!

0

46

MTD 738-0102

Axle Bolt

$10.99

$

In Stock, Qty 5

0

47

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.99

$

In Stock, Qty 20+

0

48

MTD 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.99

$

In Stock, Qty 14

0

49

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$11.99

$

In Stock, Qty 5

0

50

MTD 15262B

Pivot Bar

Variations

15262B-0637

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$15.99

$

In Stock, only 2 left!

0

$15.99

$

In Stock, only 2 left!

0

51

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

Usually ships in 3-6 days

0

52

Wheel Ass'y. Comp.

$

$

Not available

53

MTD 14578

Height Adj. Ass'y. Comp.- R.F. & L.R.
(Superseded to 753-06761)

$69.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp. - L.F. & R.R.
(Superseded to 753-06761)

$69.99

$

In Stock, Qty 7

0

54

MTD 746-0842

Throttle Cable - 51"
(Superseded to 946-0671A)

$14.99

$

In Stock, Qty 6

0

55

MTD 746-0550

Control Cable - 39"
(Superseded to 946-0550)

Note: For model (109A)

$22.99

$

In Stock, Qty 5

0

MTD 746-0553

Control Cable - 36"
(Superseded to 946-0553)

Note: For model (106C,108C)

$25.99

$

Usually ships in 3-6 days

0

57

MTD 710-0654A

Hex L-Wsh. Scr. 3/8-16 x 1.0" L

$4.99

$

In Stock, Qty 20+

0

58

MTD 736-0504

Wave Washer .51" I.D.
(Superseded to 936-0504)

Note: (Used w/Ball Bearings)

$4.99

$

In Stock, only 2 left!

0

62

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.99

$

In Stock, Qty 13

0

63

MTD 682-7000

Mulching Plug

$

$

Not available

64

MTD 731-1409

Chute Deflector
(Superseded to 731-1409B)

$29.99

$

In Stock, Qty 5

0

65

MTD 736-0270

Bell-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

66

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

67

MTD 782-7009

Chute Stop Bracket

Variations

782-7009-0637

MTD 782-7009-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

68

MTD 712-0324

Nut 1/4-20 Toplock

$3.99

$

In Stock, only 3 left!

0

69

MTD 710-0167

Scr. 1/4-20
(Superseded to 710-05177)

$5.49

$

In Stock, Qty 16

0

MTD 731-1426

Hub Cap Yellow - Rad. Spoke
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

MTD 731-0981A

Hub Cap Gray - Rad. Spoke
(Superseded to 731-0981C)

$11.99

$

In Stock, Qty 6

0

MTD 720-0249

Hub Cap Gray - Euro
(Superseded to 920-0249)

$

$

Not available

MTD 731-0982A

Hub Cap Beige - Rad. Spoke
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 14

0

MTD 731-1781

Wheel w/o Bearing Bar No Hub Cap; Tread Gray

$

$

Currently unavailable

MTD 634-0020

Wheel w/o Bearing Bar Tread Gray

$42.99

$

In Stock, Qty 8

0

MTD 734-1821

Wheel with Bearing - Gray
(Superseded to 753-08093)

Note: Brg. P/N 741-0484; "S" Wave Tread; Requires Wave Washer P/N 736-0504

$48.99

$

In Stock, only 4 left!

0

MTD 734-1818

Wheel with Bearing - Yellow
(Superseded to 734-1978)

Note: Brg. P/N 741-0484; Link Thread; Requires Wave Washer P/N 736-0504

$51.99

$

Usually ships in 3-6 days

0

MTD 734-1819

Wheel with Bearing - Gray
(Superseded to 734-1978)

Note: Brg. P/N 741-0484; Link Thread; Requires Wave Washer P/N 736-0504

$51.99

$

Usually ships in 3-6 days

0

MTD 734-1820

Wheel with Bearing - Beige
(Superseded to 734-1978)

Note: Brg. P/N 741-0484; Link Thread; Requires Wave Washer P/N 736-0504

$51.99

$

Usually ships in 3-6 days

0

MTD 741-0484

Bearing
(Superseded to 941-0484)

$7.99

$

Usually ships in 3-6 days

0

MTD 736-0504

Wave Washer
(Superseded to 936-0504)

$4.99

$

In Stock, only 2 left!

0
