11A-418B752 - Yard Machines Walk-Behind Mower (2004) (Walmart)

Walk-Behind Mower

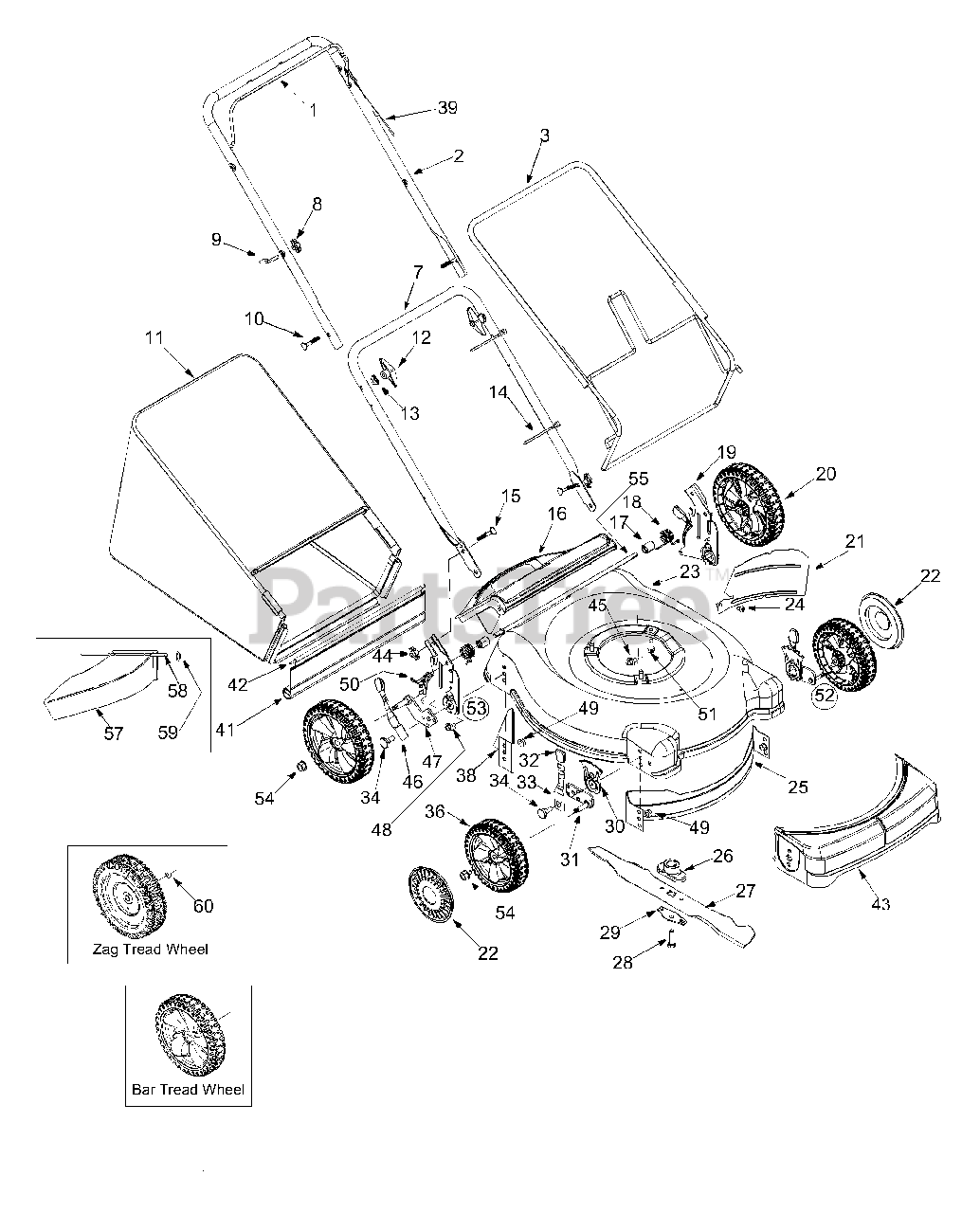

11A-418B752 - Yard Machines Walk-Behind Mower (2004) (Walmart) > Parts Diagrams (2) > General Assembly

  • Title
747-1161A

1

Blade Control Handle

Part# 747-1161A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.18

Variations

POWDER BLACK (0637)

Operator Bail, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.18

749-1092A

2

Upper Handle

Part# 749-1092A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.87

Variations

POWDER BLACK (0637)

Upper Handle, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $36.87

MTD/TROY-BILT RED (0638)

HANDLE-UPPER

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.87

747-04080

3

Grass Catcher Frame

Part# 747-04080

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $42.00

Variations

POWDER BLACK (0637)

FRAME-GRASSBAG 21"

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

749-0928A

7

Lower Handle

Part# 749-0928A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $31.60

Variations

POWDER BLACK (0637)

Lower Handle

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $31.60

720-0279

8

Wing Nut

Part# 720-0279

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-1205

9

Rope Guide

Part# 710-1205

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

710-1174

10

Carriage Bolt 5/16-18 x 2

Part# 710-1174

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.03

664-04007A

11

Grass Bag Assembly

Part# 664-04007A (Superseded to 964-04007A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $95.95

720-0284

12

Hand Knob

Part# 720-0284 (Superseded to 920-0284)

OEM Warranty Repair Part for MTD

Not available

736-0451

13

Saddle Washer

Part# 736-0451 (Superseded to 936-0451)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

726-0240

14

Cable Tie

Part# 726-0240 (Superseded to 725-0157)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.74

710-0703

15

Carriage Bolt 1/4-20

Part# 710-0703

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

731-04134

16

Rear Discharge Door

Part# 731-04134 (Superseded to 931-04134)

OEM Warranty Repair Part for MTD

Not available

750-04162

17

Spacer

Part# 750-04162 (Superseded to 950-04162)

OEM Warranty Repair Part for MTD

Not available

732-04089

18

Torsion Spring LH

Part# 732-04089 (Superseded to 732-04089A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.60

732-04090

18

Torsion Spring RH

Part# 732-04090 (Superseded to 932-04090)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.34

787-01144

19

Handle Bracket RH

Part# 787-01144 (Superseded to 753-05994)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $66.89

787-01143

19

Handle Bracket LH

Part# 787-01143 (Superseded to 753-05994)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $66.89

20

Rear Wheel Refer to "Wheel Chart"

Part#

Not available

782-5003

21

Rear Baffle LH

Part# 782-5003

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Left Rear Baffle

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $21.24

731-0981A

22

Hubcap If equipped

Part# 731-0981A (Superseded to 731-0981C)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.40

787-01103

23

Cutting Deck: Rear Discharge

Part# 787-01103

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $165.79

Variations

MTD/TROY-BILT RED (0638)

SERVICE KIT:DECK 2

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

SERVICE KIT:DECK 2

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

BLACK JACK (0691)

SERVICE KIT:DECK 2

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Not available

MASTERCRAFT GREEN (0709)

SERVICE KIT:DECK 2

Part# MASTERCRAFT GREEN (0709)

OEM Warranty Repair Part for MTD

Not available

710-1017

24

AB Screw 1/4-14 x .625"

Part# 710-1017

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.82

782-5002A

25

Front Baffle

Part# 782-5002A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Front Baffle

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

748-0376C

26

Blade Adapter

Part# 748-0376C (Superseded to 748-0376E)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.19

742-0741

27

Mulching Blade

Part# 742-0741 (Superseded to 942-0741A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $26.82

710-1044

28

Hex Bolt 3/8-24 x 1.5

Part# 710-1044

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.79

736-0524A

29

Blade Bell Support

Part# 736-0524A (Superseded to 736-0524B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.87

15261A

30

Front Adjustment Plate

Part# 15261A (Superseded to 787-01290A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.48

687-02077

31

Pivot Arm Assembly RH (8" wheel)

Part# 687-02077 (Superseded to 987-02077A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.24

687-02077

31

Pivot Arm Assembly LH (7" wheel)

Part# 687-02077 (Superseded to 987-02077A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.24

687-02076

31

Pivot Arm Assembly LH (8" wheel)

Part# 687-02076 (Superseded to 987-02076A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.24

687-02076

31

Pivot Arm Assembly RH (7" wheel)

Part# 687-02076 (Superseded to 987-02076A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.24

720-0426

32

Knob: Adjustment Lever

Part# 720-0426

OEM Warranty Repair Part for MTD

Not available

732-0404

33

Spring Lever Assembly

Part# 732-0404 (Superseded to 94832)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.61

738-0507B

34

Shoulder Screw

Part# 738-0507B (Superseded to 938-0507B)

OEM Warranty Repair Part for MTD

Not available

36

Front Wheel Refer to "Wheel Chart"

Part#

Not available

782-5004A

38

Rear Baffle RH

Part# 782-5004A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BAFFLE-REAR RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $17.52

746-0957

39

Control Cable 37.25"

Part# 746-0957 (Superseded to 946-0957)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.95

746-1130

39

Control Cable 40"

Part# 746-1130 (Superseded to 946-1130)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.71

746-0554

39

Control Cable 40.5"

Part# 746-0554 (Superseded to 946-0554)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.66

746-1137

39

Control Cable 53"

Part# 746-1137 (Superseded to 946-1137)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.80

720-0295

40

Foam Grip

Part# 720-0295

Note: If equipped; (not shown)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $23.27

731-1236

41

Trailshield

Part# 731-1236 (Superseded to 731-04998)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $22.34

732-0700

42

Trailshield Wire

Part# 732-0700

OEM Warranty Repair Part for MTD

Not available

731-1506

43

Deck: Front Cover

Part# 731-1506 (Superseded to 731-1506A)

Note: If equipped

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $47.81

712-0397

44

Wing Nut 1/4-20

Part# 712-0397 (Superseded to 712-0397A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.95

710-0654A

45

Hex L-Washer Hd. Screw 3/8-16 x 1.0

Part# 710-0654A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

687-02071

46

Lever Assembly: Rear Height Adj. RH

Part# 687-02071 (Superseded to 987-02071A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $14.73

687-02070

46

Lever Assembly: Rear Height Adj. LH

Part# 687-02070 (Superseded to 987-02070A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $14.73

787-01132

47

Pivot Bar: 9 Position RH

Part# 787-01132 (Superseded to 987-02071A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $14.73

787-01131

47

Pivot Bar: 9 Position LH

Part# 787-01131 (Superseded to 787-01131A)

OEM Warranty Repair Part for MTD

Not available

710-1652

48

AB Screw

Part# 710-1652

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

712-0431

49

Flange Lock Nut 3/8-16

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.45

714-0104

50

Hairpin Clip

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

710-0654A

51

TT Sems Screw 3/8-16 x 1.0

Part# 710-0654A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

687-02074

52

Ht. Adj. Assy. Front RH (8" Wheel)

Part# 687-02074 (Superseded to 987-02074B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $28.44

687-02100

52

Ht. Adj. Assy. Front RH (7" Wheel)

Part# 687-02100 (Superseded to 987-02100C)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $27.02

687-02075

52

Ht. Adj. Assy. Front LH (8" Wheel)

Part# 687-02075 (Superseded to 987-02075B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $28.44

687-02099

52

Ht. Adj. Assy. Front LH (7" Wheel)

Part# 687-02099 (Superseded to 987-02099C)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $27.02

687-02069

53

Handle Bracket Assy. Rear LH

Part# 687-02069 (Superseded to 753-05994)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $66.89

687-02068

53

Handle Bracket Assy. Rear RH

Part# 687-02068 (Superseded to 753-05994)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $66.89

712-0431

54

Flange Nut 3/8-16 Thd.

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.45

747-04035

55

Pivot Rod: Rear Door

Part# 747-04035 (Superseded to 753-06366)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $35.55

736-0504

56

Wave Washer

Part# 736-0504 (Superseded to 936-0504)

Note: If equipped

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

731-1405

57

Chute Deflector

Part# 731-1405 (Superseded to 731-1405A)

Note: If equipped

OEM Warranty Repair Part for MTD

Not available

711-0996

58

Rod

Part# 711-0996

Note: If equipped

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $34.53

726-0201

59

Push Speed Nut

Part# 726-0201

Note: If equipped

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.81

750-0535

60

Spacer

Part# 750-0535 (Superseded to 950-0535)

Note: If equipped

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11
