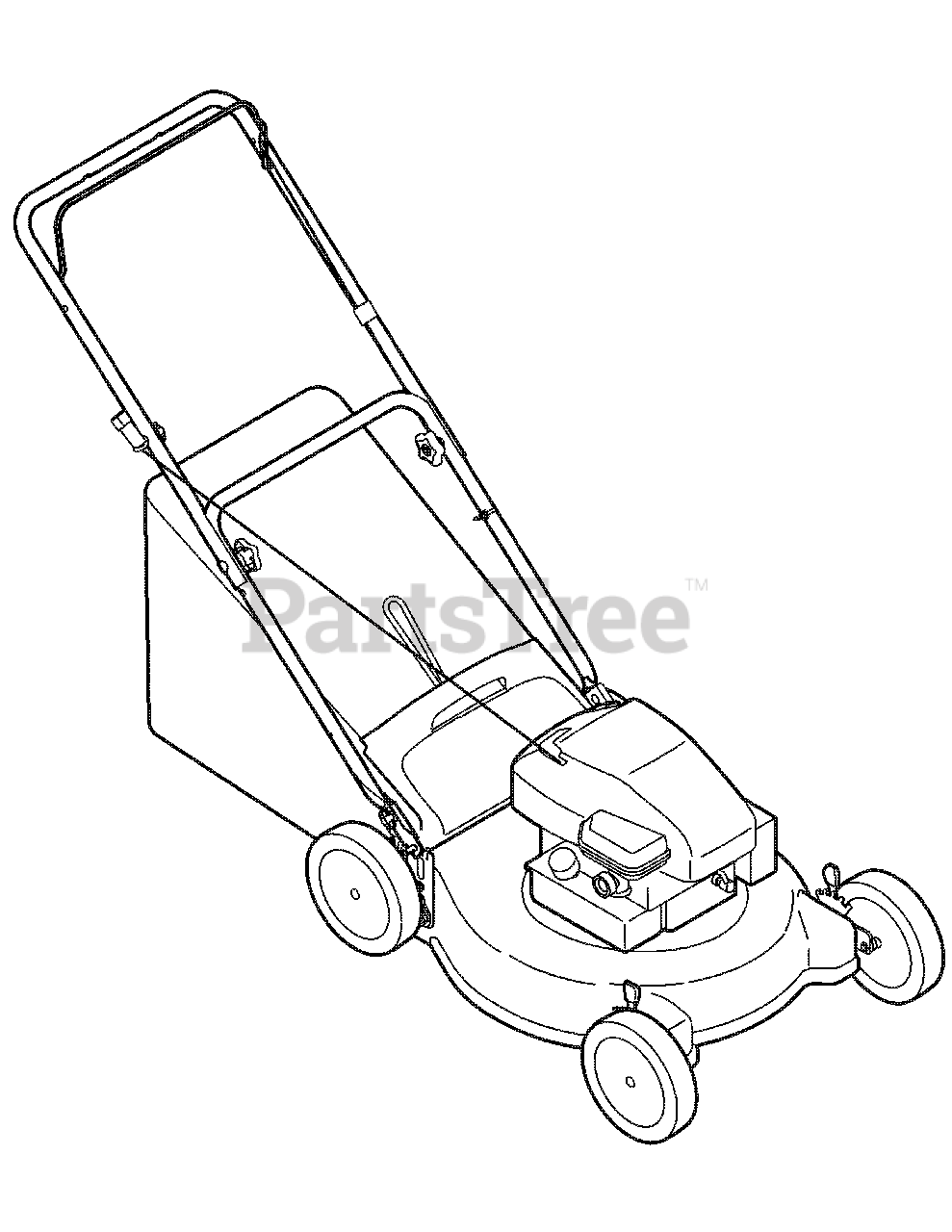

11A-419Q229 - Yard Machines Walk-Behind Mower (2008) (Home Depot) .Quick Reference Parts Diagram

Walk-Behind Mower

.Quick Reference Parts Diagram

  • Title

MTD 490-250-0009

Spark Plug
(Superseded to FF-22)

$

$

Not available

N/A

Pre-Filter

$

$

Not available

MTD 17211-ZL8-023

Air Filter

$6.49

$

In Stock, Qty 20+

0

MTD 746-1130

Cable Control, Brake (40'' Snap On)
(Superseded to 946-1130)

$16.99

$

In Stock, Qty 20+

0

MTD 742-0741

Blade,Mulching
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

MTD 710-1044

Blade Bolt

$3.99

$

In Stock, Qty 20+

0

MTD 748-04082

Blade Adaptor 25MM

$34.99

$

In Stock, Qty 15

0

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

MTD 734-1988

Wheels, 7 x 1.8 Spoke Bar

Note: (Front)

$18.99

$

In Stock, Qty 10

0

MTD 734-1987

Wheels, 8 x 1.8 Spoke Bar

Note: (Rear)

$21.99

$

In Stock, Qty 17

0

MTD 731-05642

Trailsheild
(Superseded to 731-05642A)

$26.99

$

In Stock, Qty 12

0

MTD 731-05865

Rear Discharge Chute
(Superseded to 731-06847)

$26.99

$

Usually ships in 3-6 days

0

MTD 664-04007A

Grass Bag
(Superseded to 964-04007A)

$124.99

$

In Stock, Qty 18

0

MTD 747-04080A

Grass Bag Frame

Variations

MTD 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$55.99

$

In Stock, Qty 11

0

$55.99

$

In Stock, Qty 11

0
