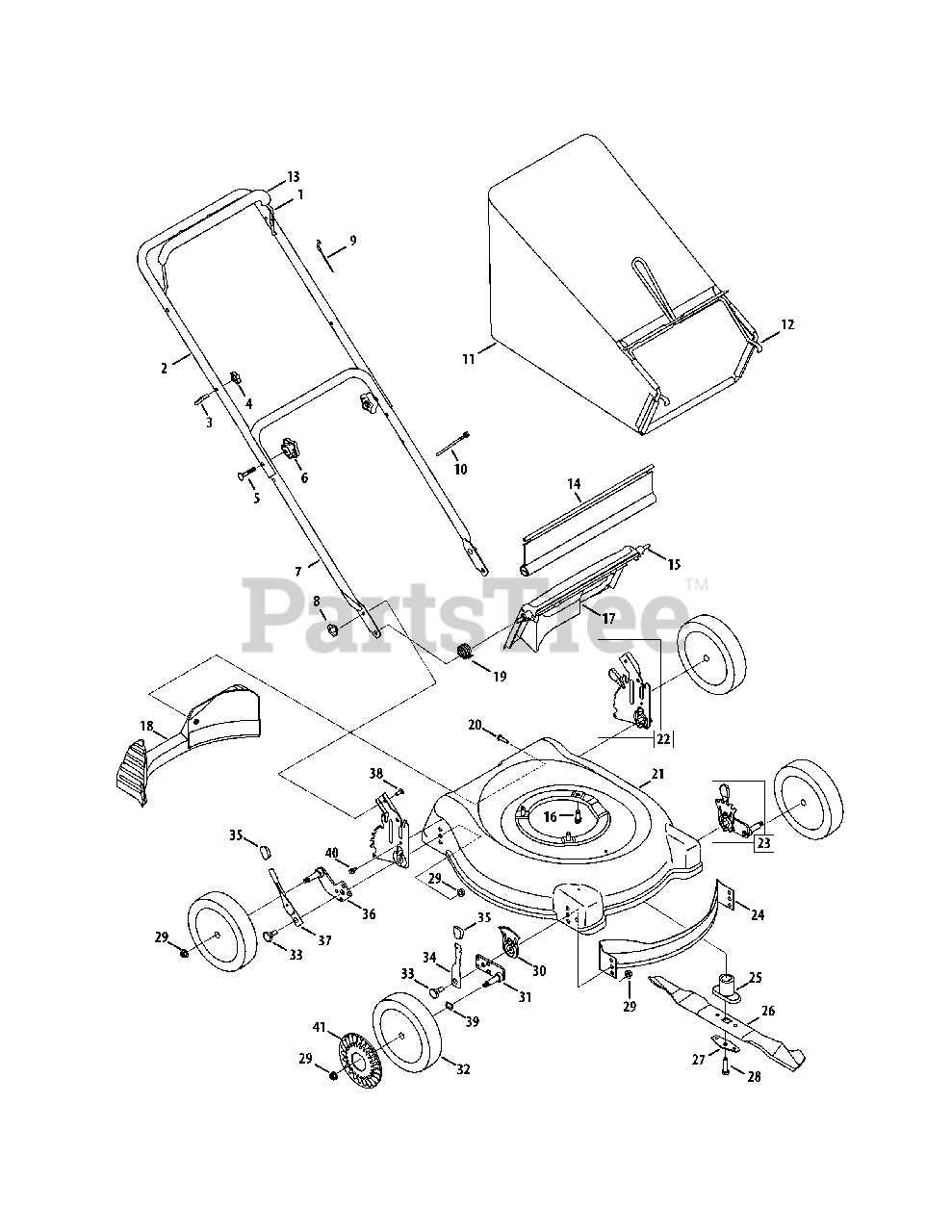

11A-42K6095 - MTD Pro Walk-Behind Mower (2010) General Assembly 11A-42K6 Parts Diagram

Pro Walk-Behind Mower

General Assembly 11A-42K6 Parts Diagram

  • Title

1

MTD 747-1161A-0637

Blade Control

$12.99

$

In Stock, Qty 20+

0

2

MTD 749-1092A-0637

Upper Handle

$45.99

$

In Stock, Qty 5

0

3

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

4

MTD 720-0279

Wing Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1174

Carriage Bolt, 5/16-18 x 2

$6.99

$

In Stock, Qty 20+

0

6

MTD 720-04072A

Hand Star Knob

$6.49

$

In Stock, Qty 20+

0

7

MTD 749-0928A-0637

Lower Handle

$33.99

$

In Stock, Qty 11

0

8

MTD 912-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

9

MTD 946-1130

Control Cable - 40"

$16.99

$

In Stock, Qty 20+

0

10

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

11

MTD 964-04007A

Grass Bag

$124.99

$

In Stock, Qty 18

0

12

MTD 747-04080A-0637

Grass Bag Frame
(Superseded to 747-04080A)

$55.99

$

In Stock, Qty 11

0

13

MTD 731-2626

Bail Cover

$11.99

$

In Stock, only 2 left!

0

14

MTD 731-05642A

Trailshield

$26.99

$

In Stock, Qty 12

0

15

MTD 747-04587

Rear Door Pivot Rod

$14.99

$

Usually ships in 3-6 days

0

16

MTD 710-0654A

TT Screw, 3/8-16 x 1

$3.99

$

In Stock, only 4 left!

0

17

MTD 731-06847

Rear Discharge Door

$26.99

$

Usually ships in 3-6 days

0

18

MTD 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

19

MTD 732-04090A

Torsion Spring RH

$7.49

$

Usually ships in 3-6 days

0

20

MTD 710-1241

Screw, 1/4-15 x 1.00

$6.49

$

In Stock, Qty 20+

0

21

MTD 787-01276-0637

Deck 21 inch

$227.99

$

Usually ships in 3-6 days

0

22

MTD 987-02271A

Handle Bracket Assy - RH

$35.99

$

Usually ships in 3-6 days

0

22

MTD 987-02270A

Handle Bracket Assy - LH

$35.99

$

Usually ships in 3-6 days

0

23

MTD 987-02510

Ht. Adj. Assy. Frt - LH

$

$

Not available

23

MTD 987-02511

Ht. Adj. Assy. Frt - RH

$16.99

$

Usually ships in 3-6 days

0

24

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

25

MTD 748-0377E

Blade Adapter, #6 x 2.15

$17.99

$

In Stock, Qty 17

0

26

MTD 942-0641

Standard Blade

$29.99

$

In Stock, only 1 left!

0

26

942-0741†

Mulch Blade

$

$

Not available

27

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

28

MTD 710-1257

Hex Screw, 3/8-24 x 2.50

$7.49

$

In Stock, Qty 20+

0

29

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

30

MTD 787-01290A

Height Adjustment Plate

$11.99

$

In Stock, only 2 left!

0

31

MTD 987-02508

Pivot Arm Assy RH

$

$

Not available

31

MTD 987-02509

Pivot Arm Assy LH

$

$

Not available

32

MTD 734-2004B

Wheel, 8 x 2.125
(Superseded to 753-08093)

$42.99

$

In Stock, Qty 11

0

33

MTD 738-04266

Shoulder Screw

$5.99

$

In Stock, only 1 left!

0

34

MTD 94832

Spring Lever

$10.99

$

In Stock, Qty 9

0

35

MTD 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

36

MTD 987-02333

Pivot Arm Assembly - RH

$16.99

$

In Stock, Qty 6

0

36

MTD 987-02332

Pivot Arm Assembly - LH

$16.99

$

In Stock, only 1 left!

0

37

MTD 732-04175

Spring Lever

$10.99

$

Usually ships in 3-6 days

0

38

MTD 710-0703

Carriage Bolt, 1/4-20

$3.99

$

In Stock, Qty 20+

0

39

MTD 936-0504

Wave Washer

$4.49

$

In Stock, Qty 12

0

40

MTD 710-1652

Screw, 1/4-20 x .625

$3.99

$

In Stock, Qty 20+

0

41

MTD 731-07048

Hub Cap

$9.99

$

In Stock, Qty 6

0
