11A-435D701 - Yard-Man Walk-Behind Mower (2005) General Assembly 1 Parts Diagram

Walk-Behind Mower

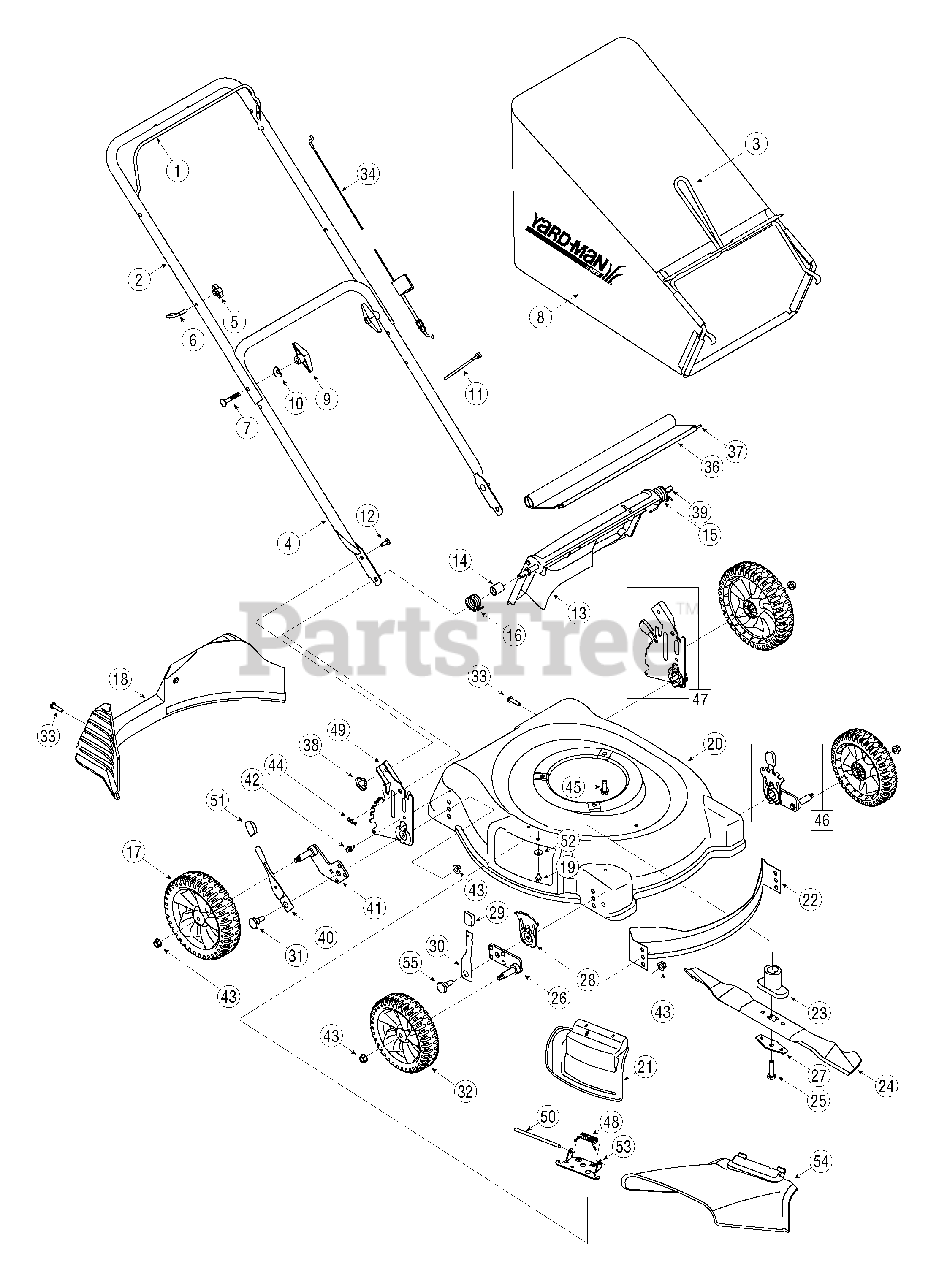

General Assembly 1 Parts Diagram

  • Title

1

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$12.99

$

In Stock, Qty 20+

0

2

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$45.99

$

In Stock, Qty 5

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

3

MTD 747-04080

Grass Catcher Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$55.99

$

In Stock, Qty 11

0

$55.99

$

In Stock, Qty 11

0

4

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 11

0

$33.99

$

In Stock, Qty 11

0

5

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

7

MTD 710-1174

Carriage Bolt,5/16-18 x 2

$6.99

$

In Stock, Qty 20+

0

8

MTD 664-04027

Grass Bag Assembly
(Superseded to 964-04007A)

$124.99

$

In Stock, Qty 18

0

9

MTD 720-0284

Hand Knob

$6.49

$

In Stock, Qty 20+

0

10

MTD 736-0451

Saddle Washer

$3.99

$

In Stock, only 2 left!

0

11

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 2 left!

0

12

MTD 710-0703

Carriage Bolt,1/4-20

$3.99

$

In Stock, Qty 20+

0

13

MTD 731-04134A

Rear Discharge Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

14

MTD 750-04162

Spacer
(Superseded to 950-04162)

$

$

Not available

15

MTD 732-04089A

Torsion Spring - LH

$7.49

$

Usually ships in 3-6 days

0

16

MTD 732-04090A

Torsion Spring - RH

$7.49

$

Usually ships in 3-6 days

0

17

MTD 734-04087

Rear Wheel, 8 x 1.8

$25.99

$

In Stock, Qty 7

0

18

MTD 731-04150

Rear Baffle
(Superseded to 731-04150C)

$42.99

$

In Stock, only 2 left!

0

19

MTD 710-0599

Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

20

MTD 787-01279

Deck - 21"

Variations

MTD 787-01279-0650

"No Longer Available DECK-21""" - RED METALLIC (0650)

$

$

Not available

MTD 787-01279-0691

Deck - 21" - BLACK JACK (0691)

$

$

Not available

MTD 787-01279-0709

Deck 21-inch - Green - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 787-01279-4043

DECK-21" - CRAFTSMAN METALLIC GRAY (4043)

$

$

Not available

MTD 787-01279-0606

21" Deck Ass’y (w/ side dis charge) - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 787-01279-0629

Deck 21-inch - Silver Flake - SILVER FLAKE (0629)

$

$

Not available

MTD 787-01279-0638

Deck 21-inch - Red - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01279-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01279-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

MTD 787-01279-0716

DECK-21" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 787-01279-0729

No Longer Available - STORM GRAY (0729)

$

$

Not available

$

$

21

MTD 687-02055

Hinged Mulch Plug Assembly
(Superseded to 987-02055)

$25.99

$

In Stock, Qty 13

0

22

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

23

MTD 748-0377C

Blade Adapter
(Superseded to 748-0377E)

$17.99

$

In Stock, Qty 17

0

24

MTD 742-0741

Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1257

Hex Screw, 3/8-24 x 2.5

$7.49

$

In Stock, Qty 20+

0

26

MTD 687-02076

Pivot Arm Assembly - RH
(Superseded to 987-02076A)

$15.99

$

In Stock, only 1 left!

0

26

MTD 687-02077

Pivot Arm Assembly - LH Not Pictured
(Superseded to 987-02077A)

$16.99

$

In Stock, Qty 6

0

27

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

28

MTD 15261C

Front Adjustment Plate

$

$

Currently unavailable

29

MTD 720-0426

Adjustment Lever Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

30

MTD 732-0404

Spring Lever Assembly
(Superseded to 94832)

$10.99

$

In Stock, Qty 9

0

31

MTD 738-04136

Shoulder Screw

$

$

Not available

32

MTD 734-04086

Front Wheel, 7 x 1.8
(Superseded to 734-1988)

$18.99

$

In Stock, Qty 12

0

33

MTD 710-04371

Screw, 1/4-15 x 1.250

$6.49

$

Usually ships in 3-6 days

0

34

MTD 746-1137

Control Cable - 53" Snap
(Superseded to 946-1137)

$19.99

$

In Stock, Qty 11

0

35

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

36

MTD 731-04998

Trailshield

$29.99

$

In Stock, Qty 10

0

37

MTD 732-0700

Trailshield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, Qty 8

0

38

MTD 712-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

39

MTD 747-04035

Rear Door Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

40

MTD 732-04175

Spring Lever

$10.99

$

Usually ships in 3-6 days

0

41

MTD 687-02071

Pivot Arm Assembly - RH
(Superseded to 987-02071A)

$19.99

$

Usually ships in 3-6 days

0

41

MTD 687-02070

Pivot Arm Assembly - LH Not Pictured
(Superseded to 987-02070A)

$19.99

$

Usually ships in 3-6 days

0

42

MTD 710-1652

AB Screw

$3.99

$

In Stock, Qty 20+

0

43

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

44

MTD 714-0104

Hairpin Clip

$3.99

$

In Stock, Qty 20+

0

45

MTD 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$3.99

$

In Stock, only 4 left!

0

46

MTD 687-02099

Ht. Adj. Assy. Front - LH
(Superseded to 987-02099C)

$35.99

$

Usually ships in 3-6 days

0

46

MTD 687-02100

Ht. Adj. Assy. Front - RH Not Pictured
(Superseded to 987-02100C)

$35.99

$

In Stock, only 1 left!

0

47

MTD 687-02069

Rear Handle Bracket Assy. - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

47

MTD 687-02068

Rear Handle Bracket Assy. - RH Not Pictured
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

48

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.49

$

In Stock, Qty 20+

0

49

N/A

Handle Bracket Assembly use ref # 47

$

$

Not available

50

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

51

MTD 720-0426

Spring Lever Grip
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

52

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 15

0

53

MTD 17032A

Deflector Chute Adaptor

$10.99

$

In Stock, only 4 left!

0

54

MTD 731-04177

Side Chute

$17.99

$

In Stock, Qty 20+

0

55

MTD 738-0507B

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0
