11A-436A004 - MTD Gold Walk-Behind Mower (2010) General Assembly 11A-436A Parts Diagram

Gold Walk-Behind Mower

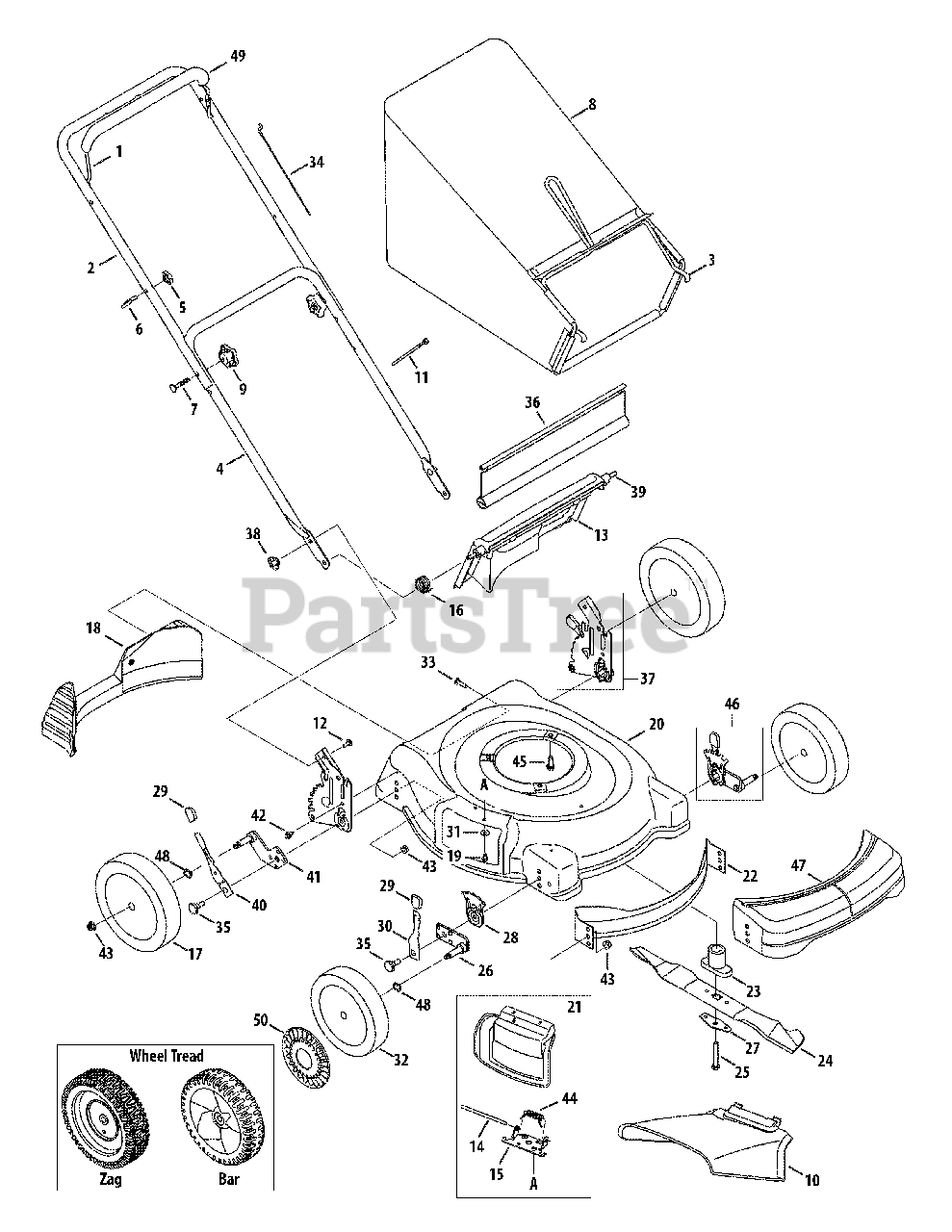

General Assembly 11A-436A Parts Diagram

  • Title

1

MTD 747-1161A-0637

Blade Control Handle

$12.99

$

In Stock, Qty 20+

0

2

MTD 749-1092A-0637

Upper Handle

$45.99

$

In Stock, only 4 left!

0

3

MTD 747-04080A-0637

Grass Catcher Frame
(Superseded to 747-04080A)

$55.99

$

In Stock, Qty 11

0

4

MTD 749-0928A-0637

Lower Handle

$33.99

$

In Stock, Qty 10

0

5

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

7

MTD 710-1174

Carriage Bolt ,5/16-18 x 2

$6.99

$

In Stock, Qty 20+

0

8

MTD 964-04034A

Grass Bag - Gray
(Superseded to 964-04007A)

$124.99

$

In Stock, Qty 18

0

9

MTD 720-04072A

Hand Knob

$6.49

$

In Stock, Qty 20+

0

10

MTD 731-04177

Side Chute

$17.99

$

In Stock, Qty 20+

0

11

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

12

MTD 710-0703

Carriage Bolt ,1/4-20

$3.99

$

In Stock, Qty 20+

0

13

MTD 731-06847

Rear Discharge Door

$26.99

$

Usually ships in 3-6 days

0

14

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

15

MTD 17032A

Deflector Chute Adaptor

$10.99

$

In Stock, only 4 left!

0

16

MTD 732-04090A

Torsion Spring - RH

$7.49

$

Usually ships in 3-6 days

0

17

MTD 734-2005B

Rear Wheel, 8 x 2.125, Zag
(Superseded to 753-08093)

$42.99

$

In Stock, Qty 11

0

18

MTD 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

19

MTD 710-0599

Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

20

MTD 787-01279-0691

Deck - 21"

$

$

Not available

21

MTD 987-02055

Hinged Mulch Plug Assembly

$25.99

$

In Stock, Qty 13

0

22

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

23

MTD 748-0377E

Blade Adapter, #6 x 2.15

$17.99

$

In Stock, Qty 16

0

24

MTD 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1257

Hex Screw , 3/8-24 x 2.5

$7.49

$

In Stock, Qty 20+

0

26

MTD 987-02509

Pivot Arm Assy RH (8" wheel)

$

$

Not available

26

MTD 987-02508

Pivot Arm Assy LH (8" wheel)

$

$

Not available

27

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

28

MTD 787-01290A

Front Adjustment Plate

$11.99

$

In Stock, only 2 left!

0

29

MTD 720-0426

Adjustment Lever Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

30

MTD 94832

Spring Lever Assembly

$10.99

$

In Stock, Qty 8

0

31

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 12

0

32

MTD 734-2005B

Front Wheel, 8 x 2.125, Zag
(Superseded to 753-08093)

$42.99

$

In Stock, Qty 11

0

33

MTD 710-1241

Screw, 1/4-15 x 1.000

$6.49

$

In Stock, Qty 20+

0

34

MTD 946-1130

Control Cable 40"

$16.99

$

In Stock, Qty 20+

0

35

MTD 738-04266

Shoulder Screw

$5.99

$

Usually ships in 3-6 days

0

36

MTD 731-05642A

Trailshield

$26.99

$

In Stock, Qty 12

0

37

MTD 987-02270A

Rear Handle Bracket Assy. - LH

$35.99

$

In Stock, only 1 left!

0

37

MTD 987-02271A

Rear Handle Bracket Assy. - RH

$35.99

$

In Stock, only 1 left!

0

38

MTD 912-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

39

MTD 747-04587

Rear Door Pivot Rod

$14.99

$

Usually ships in 3-6 days

0

40

MTD 732-04175

Spring Lever

$10.99

$

Usually ships in 3-6 days

0

41

MTD 987-02333

Pivot Arm Assembly - RH

$16.99

$

In Stock, Qty 6

0

41

MTD 987-02332

Pivot Arm Assembly - LH

$16.99

$

In Stock, only 1 left!

0

42

MTD 710-1652

AB Screw

$3.99

$

In Stock, Qty 20+

0

43

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

44

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.49

$

In Stock, Qty 20+

0

45

MTD 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$3.99

$

In Stock, only 4 left!

0

46

MTD 987-02510

Height Adj. Assy. Front LH (8" wheel)

$

$

Not available

46

MTD 987-02511

Height Adj. Assy. Front RH (8" wheel)

$16.99

$

Usually ships in 3-6 days

0

47

MTD 731-1506A

Front Cover

$

$

Not available

48

MTD 936-0504

Wave Washer

$4.49

$

In Stock, Qty 12

0

49

MTD 731-04859

Bail Cover - Gray

$10.99

$

Usually ships in 3-6 days

0

50

MTD 731-07001

Hub Cap

$4.99

$

In Stock, only 2 left!

0
