11A-436N063 - Troy-Bilt Tru-Cut 110 Walk-Behind Mower (2002) General Assembly Parts Diagram

Tru-Cut 110 Walk-Behind Mower

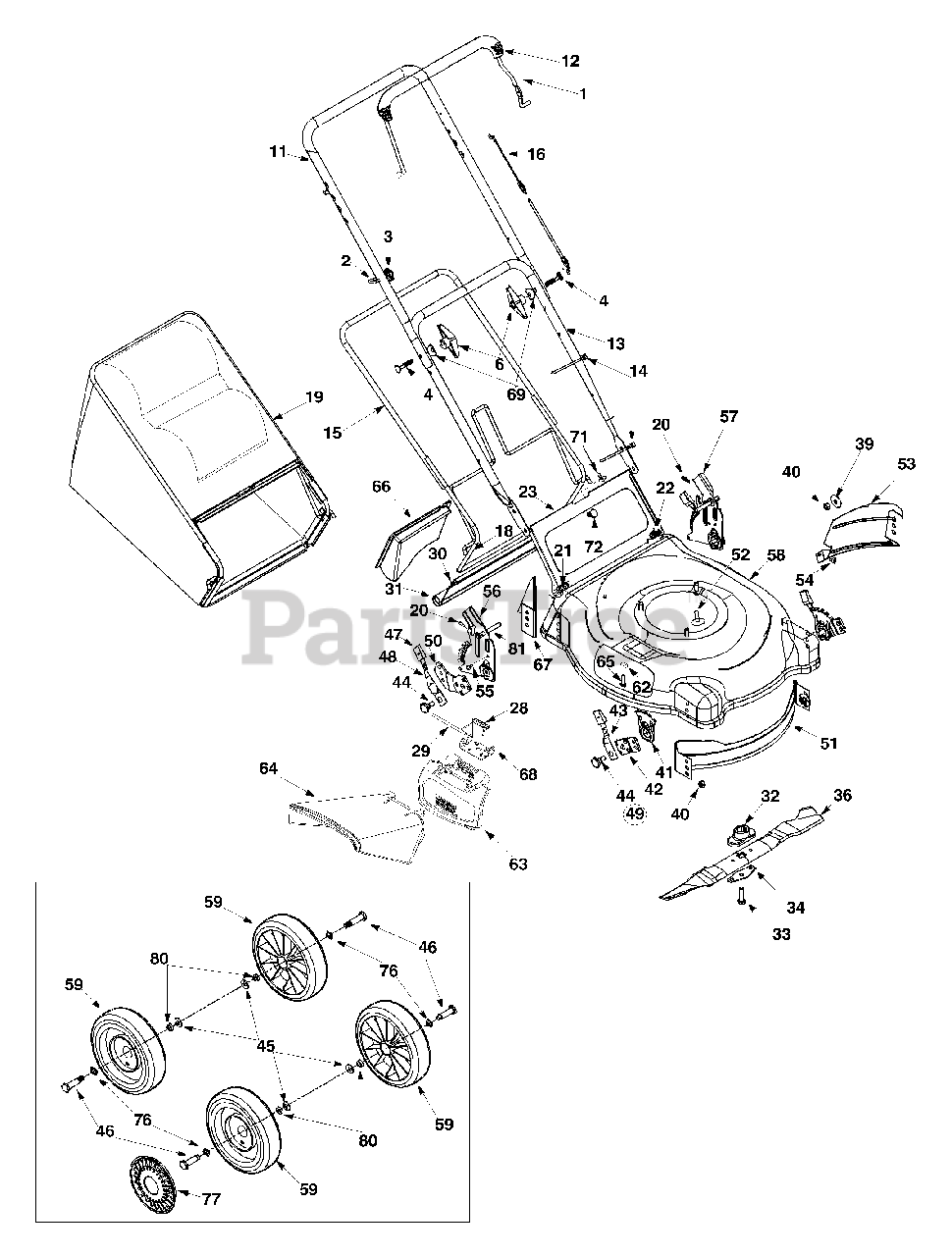

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 747-1161A

Control Handle

Variations

Troy-Bilt 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$12.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

3

Troy-Bilt 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1174

Curved Hd. Bolt 5/16-18 x 2"

$6.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 720-0284

Hand Knob

$6.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 749-1092A

Upper Handle

Variations

Troy-Bilt 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$45.99

$

In Stock, only 4 left!

0

Troy-Bilt 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 731-2626

Bail Cover

$11.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

Troy-Bilt 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 10

0

$33.99

$

In Stock, Qty 10

0

14

Troy-Bilt 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

15

Troy-Bilt 764-0310

Rear Catcher Frame
(Superseded to 764-0310A-0637)

Variations

Troy-Bilt 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 746-1130

Control Cable - 40"
(Superseded to 946-1130)

$16.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 764-0311

Front Catcher Frame
(Superseded to 764-0311-0637)

Variations

Troy-Bilt 764-0311-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$

$

Not available

$

$

19

Troy-Bilt 664-0176

Grass Bag Assembly: Half Sail
(Superseded to 964-0309)

$151.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 714-0104

Int. Cotter Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 732-0678

Door Spring - R.H.

$7.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 732-0677

Door Spring - L.H.
(Superseded to 932-0677)

$7.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 782-7000

Rear Discharge Door

Variations

Troy-Bilt 782-7000-0483

DOOR-REAR DISCHARG - CHARCOAL GRAY (0483)

$

$

Not available

Troy-Bilt 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 782-7000-0638

DOOR-REAR DISCHARG - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 782-7000-0662

DOOR-REAR DISCHARG - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 782-7000-0665

DOOR-REAR DISCHARG - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 782-7000-0674

REAR DISCHARGE DOOR - YARDMAN YELLOW (0674)

$

$

Not available

$

$

28

Troy-Bilt 732-0731

Torsion Spring
(Superseded to 932-0731)

$9.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, Qty 8

0

31

Troy-Bilt 731-1236

Rear Flap
(Superseded to 731-04998)

$29.99

$

In Stock, Qty 10

0

32

Troy-Bilt 753-0588

Blade Adapter
(Superseded to 753-06315)

Note: (Kit includes 32-34)

$15.99

$

In Stock, Qty 10

0

Troy-Bilt 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$19.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

39

UNKNOWN

$

$

Not available

40

Troy-Bilt 712-0431

Flange Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 15262B

Pivot Bar

Variations

Troy-Bilt 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 14832

Front Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

44

Troy-Bilt 738-0507B

Shld. Bolt .5" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 736-0105

Bell Washer .38" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 738-0213

Axle Bolt

$7.49

$

In Stock, Qty 5

0

47

Troy-Bilt 720-0426

Spring Lever Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

48

Troy-Bilt 732-0404

Rear Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

49

Troy-Bilt 14578

Height Adj. Assy. Comp. - RH
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

Troy-Bilt 14579

Height Adj. Assy. Comp. - LH
(Superseded to 753-06761)

Note: Not shown

$60.99

$

In Stock, Qty 7

0

50

Troy-Bilt 14765

Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

Troy-Bilt 14766

Pivot Bar L.H.

Note: N/I

$19.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

Troy-Bilt 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

52

Troy-Bilt 710-0654A

Hex L-Wash.Scr. 3/8-16 x 1"

$3.99

$

In Stock, only 4 left!

0

53

Troy-Bilt 782-5003

Rear Baffle
(Superseded to 782-5003A)

Variations

Troy-Bilt 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 710-1017

Torx Mach AB-Tap Scr. 1/4 x.62"

$7.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 710-0896

Hex Ind Wash. Scr. 1/4-14:.625

$3.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 682-0516A

Handle Brkt. Ass'y.-RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 682-0515A

Handle Brkt. Ass'y.-LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

58

MTD 782-0047A

Cutting Deck

Variations

Troy-Bilt 782-0047A-0638

DECK SHELL 21" (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 782-0047A-0650

DECK SHELL 21" (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 782-0047A-0665

DECK SHELL 21" YM (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 782-0047A-0667

DECK SHELL 21" MID(MIDNIGHT BLUE) - MIDNIGHT BLUE (0667)

$

$

Not available

Troy-Bilt 782-0047A-0691

DECK SHELL 21" (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 782-0047A-0709

DECK SHELL 21" (MASTERCRAFT GREEN) - MASTERCRAFT GREEN (0709)

$

$

Not available

Troy-Bilt 782-0047A-0716

DECK SHELL 21" CUB(CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

59

Troy-Bilt 734-2004A

Wheel
(Superseded to 753-08093)

$42.99

$

In Stock, Qty 11

0

62

Troy-Bilt 736-0270

Bell Washer 1/4" I.D.

$3.99

$

In Stock, Qty 13

0

63

MTD 731-1404A

Hinged Mulching Plug
(Superseded to 682-7000)

$

$

Not available

64

Troy-Bilt 731-1409

Chute Deflector: Side Discharge
(Superseded to 731-1409B)

$26.99

$

In Stock, Qty 5

0

65

Troy-Bilt 710-0599

Hex Hd Self-Tp Scr. 1/4-20 x .5"

$3.99

$

In Stock, Qty 20+

0

66

Troy-Bilt 782-5007A

Mulching Baffle Plug
(Superseded to 782-5007C)

$48.99

$

In Stock, only 1 left!

0

67

Troy-Bilt 782-5004

Mulching Baffle - R.R.
(Superseded to 782-5004B)

Variations

Troy-Bilt 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

Troy-Bilt 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 782-7006

Mounting Bracket

Variations

Troy-Bilt 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 736-0451

Saddle Washer

$3.99

$

In Stock, only 2 left!

0

71

Troy-Bilt 710-0192

Truss Scr. #10-24 x .38" Lg.

$3.49

$

In Stock, Qty 11

0

72

Troy-Bilt 720-0275

Knob

$

$

Not available

76

Troy-Bilt 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 12

0

77

Troy-Bilt 731-0981A

Hub Cap:Grey
(Superseded to 731-0981C)

$9.99

$

In Stock, Qty 6

0

80

Troy-Bilt 750-0535

Spacer
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 7

0

81

Troy-Bilt 710-1248

Weld Pin

$

$

Currently unavailable

MTD 735-0639

Spark Plug Boot

Note: Not shown

$

$

Not available
