11A-438F352 - Yard Machines Walk-Behind Mower (2002) (Walmart)

Walk-Behind Mower

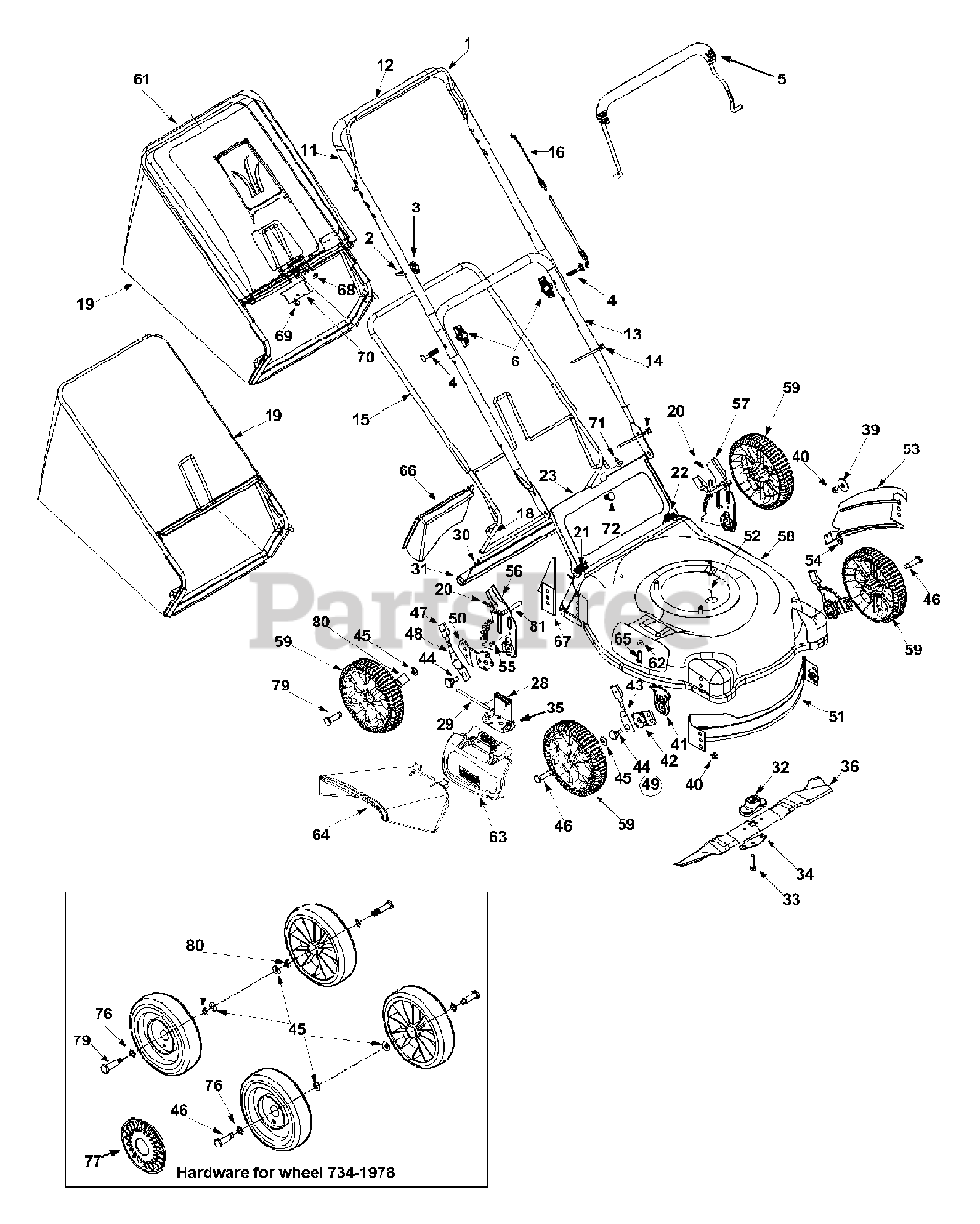

11A-438F352 - Yard Machines Walk-Behind Mower (2002) (Walmart) > Parts Diagrams (2) > General Assembly

  • Title
747-1161A

1

Control Handle

Part# 747-1161A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.18

Variations

POWDER BLACK (0637)

Operator Bail, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.18

710-1205

2

Rope Guide

Part# 710-1205

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

720-0279

3

Handle Knob 1/4-20 Thd.

Part# 720-0279

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-1174

4

Curved Hd. Bolt 5/16-18 x 2"

Part# 710-1174

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.03

731-2626

5

Bail Cover

Part# 731-2626

Note: If equipped

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.39

720-0284

6

Hand Knob

Part# 720-0284 (Superseded to 920-0284)

OEM Warranty Repair Part for MTD

Not available

749-1092A

11

Upper Handle

Part# 749-1092A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.87

Variations

POWDER BLACK (0637)

Upper Handle, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $36.87

MTD/TROY-BILT RED (0638)

HANDLE-UPPER

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.87

720-0295

12

Foam Grip

Part# 720-0295

Note: If equipped

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $23.27

749-0928

13

Lower Handle

Part# 749-0928

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

HANDLE-LOWER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

726-0240

14

Cable Tie

Part# 726-0240 (Superseded to 725-0157)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.74

764-0310

15

Rear Catcher Frame

Part# 764-0310

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Grass Catcher Bag Frame

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $32.57

746-1130

16

Control Cable - 40"

Part# 746-1130 (Superseded to 946-1130)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.71

746-0554

Control Cable - 40.5"

Part# 746-0554 (Superseded to 946-0554)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.66

746-0551

Control Cable - 43"

Part# 746-0551 (Superseded to 946-0551)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $17.98

746-1137

Control Cable - 53"

Part# 746-1137 (Superseded to 946-1137)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.80

764-0311

18

Front Catcher Frame

Part# 764-0311

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

FRAME-CATCHER-FR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

764-0309

19

Grass Bag (for hard top)

Part# 764-0309 (Superseded to 964-0309)

Note: If equipped

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $129.00

764-0457A

Grass Bag (soft top w/logo)

Part# 764-0457A (Superseded to 964-0309)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $129.00

664-0176

Grass Bag (Half Sail)

Part# 664-0176 (Superseded to 964-0309)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $129.00

664-0175

Grass Bag (Full Sail)

Part# 664-0175

OEM Warranty Repair Part for MTD

Currently unavailable

714-0104

20

Int. Cotter Pin 5/16" Dia.

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

732-0678

21

Door Spring - R.H.

Part# 732-0678

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.71

732-0677

22

Door Spring - L.H.

Part# 732-0677 (Superseded to 932-0677)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.53

782-7000

23

Rear Discharge Door

Part# 782-7000

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $65.61

Variations

CHARCOAL GRAY (0483)

DOOR-REAR DISCHARG

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $65.61

POWDER BLACK (0637)

DOOR-REAR DISCHARG

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $65.61

MTD/TROY-BILT RED (0638)

DOOR-REAR DISCHARG

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $65.61

OYSTER GRAY (0662)

DOOR-REAR DISCHARG

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $65.61

YARDMAN GREEN (0665)

DOOR-REAR DISCHARG

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $65.61

YARDMAN YELLOW (0674)

No Longer Available DOOR-REAR

Part# YARDMAN YELLOW (0674)

OEM Warranty Repair Part for MTD

Not available

732-0731

28

Torsion Spring

Part# 732-0731 (Superseded to 932-0731)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.29

747-0710

29

Hinge Pin

Part# 747-0710 (Superseded to 747-0710A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

732-0700

30

Wire Rod

Part# 732-0700

OEM Warranty Repair Part for MTD

Not available

731-1236

31

Rear Flap

Part# 731-1236 (Superseded to 731-04998)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $22.34

753-0588

32

Blade Adapter

Part# 753-0588 (Superseded to 753-06315)

Note: (Kit includes 32-34)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $11.44

710-1044

33

Hex Bolt 3/8-24 x 1.5" Lg.

Part# 710-1044

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.79

736-0524A

34

Blade Bell Support

Part# 736-0524A (Superseded to 736-0524B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.87

782-7006

35

Mounting Bracket

Part# 782-7006

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $26.07

Variations

POWDER BLACK (0637)

BRACKET-MOUNTING H

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $26.07

742-0741

36

21" Mulching Blade

Part# 742-0741 (Superseded to 942-0741A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $26.82

39

UNKNOWN

Part#

Not available

712-0431

40

Flange Nut 3/8-16 Thd.

Part# 712-0431 (Superseded to 912-0431)

Note: Purchase locally

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.45

15261A

41

Height Adj. Plate

Part# 15261A (Superseded to 787-01290A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.48

15262B

42

Pivot Bar

Part# 15262B

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.79

Variations

POWDER BLACK (0637)

PIVOT BAR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

14832

43

Front Spring Lever Ass'y. w/Knob

Part# 14832 (Superseded to 94832)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.61

738-0507B

44

Shld. Bolt .5" Dia. x .357"

Part# 738-0507B (Superseded to 938-0507B)

OEM Warranty Repair Part for MTD

Not available

736-0105

45

Bell Washer .38" I.D. x .88" O.D.

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

738-0102

46

Front Axle Bolt

Part# 738-0102 (Superseded to 938-0102)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.32

720-0426

47

Spring Lever Knob

Part# 720-0426

OEM Warranty Repair Part for MTD

Not available

732-0404

48

Rear Spring Lever

Part# 732-0404 (Superseded to 94832)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.61

14578

49

Height Adj. Assy. Comp. - RH

Part# 14578 (Superseded to 753-06761)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $46.15

14579

Height Adj. Assy. Comp. - LH

Part# 14579 (Superseded to 753-06761)

Note: Not shown

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $46.15

14765

50

Pivot Bar R.H.

Part# 14765

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.98

14766

Pivot Bar L.H.

Part# 14766

Note: N/I

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.90

782-5002

51

Front Baffle

Part# 782-5002

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Front Baffle

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

710-0654A

52

Hex L-Wash.Scr. 3/8-16 x 1"

Part# 710-0654A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

782-5003

53

Rear Baffle

Part# 782-5003

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Left Rear Baffle

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $21.24

710-1017

54

Torx Mach AB-Tap Scr. 1/4 x.62"

Part# 710-1017

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.82

710-0896

55

Hex Ind Wash. Scr. 1/4-14:.625

Part# 710-0896

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

682-0516A

56

Handle Brkt. Ass'y.-RH

Part# 682-0516A (Superseded to 753-05994)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $66.89

682-0515A

57

Handle Brkt. Ass'y.-LH

Part# 682-0515A (Superseded to 753-05994)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $66.89

782-0047A

58

Cutting Deck

Part# 782-0047A

OEM Warranty Repair Part for MTD

Variations

OLD CUB YELLOW (0498)

No Longer Available DECK SHELL

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

No Longer Available DECK SHELL

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

RED METALLIC (0650)

No Longer Available DECK SHELL

Part# RED METALLIC (0650)

OEM Warranty Repair Part for MTD

Not available

OYSTER GRAY (0662)

Deck

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

No Longer Available DECK SHELL

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

MIDNIGHT BLUE (0667)

No Longer Available DECK SHELL

Part# MIDNIGHT BLUE (0667)

OEM Warranty Repair Part for MTD

Not available

BLACK JACK (0691)

No Longer Available

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Not available

MASTERCRAFT GREEN (0709)

No Longer Available DECK SHELL

Part# MASTERCRAFT GREEN (0709)

OEM Warranty Repair Part for MTD

Not available

CUB YELLOW-99 (0716)

No Longer Available DECK SHELL

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for MTD

Not available

734-1987

59

Wheel w/ Bearings Grey Link Thd.

Part# 734-1987

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $17.37

734-1988

Wheel w/ Bearings Grey Bar Thd.

Part# 734-1988

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.08

734-1978

Wheel w/ Bearings Black Link Thd.

Part# 734-1978

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $36.17

731-1876

61

Hard Top Cover w/ Icon

Part# 731-1876

OEM Warranty Repair Part for MTD

Not available

731-1322A

Hard Top Cover w/o Icon

Part# 731-1322A (Superseded to 731-1876)

OEM Warranty Repair Part for MTD

Not available

736-0270

62

Bell Washer 1/4" I.D.

Part# 736-0270

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

682-7000

63

Hinged Mulching Plug

Part# 682-7000

OEM Warranty Repair Part for MTD

Not available

731-1409

64

Chute Deflector: Side Discharge

Part# 731-1409 (Superseded to 731-1409B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $19.89

710-0599

65

Hex Hd Self-Tp Scr. 1/4-20 x .5"

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

782-5007A

66

Mulching Baffle Plug

Part# 782-5007A (Superseded to 782-5007C)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.71

782-5004

67

Mulching Baffle - R.R.

Part# 782-5004

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BAFFLE-REAR RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $17.52

MTD/TROY-BILT RED (0638)

BAFFLE-REAR RH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $17.52

710-0286

68

Pan Hd. Mach. Scr. 1/4-20:.5" Lg.

Part# 710-0286

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.10

712-0324

69

Hx. Nylon L-Nut - 1/4-20 Thread

Part# 712-0324

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.68

782-9011

70

Mounting Bracket

Part# 782-9011

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-MTG

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.07

710-0192

71

Truss Scr. #10-24 x .38" Lg.

Part# 710-0192

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.47

720-0275

72

Knob

Part# 720-0275

OEM Warranty Repair Part for MTD

Not available

736-0504

76

Wave Washer

Part# 736-0504 (Superseded to 936-0504)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

731-0981A

77

Hub Cap - Rad. Spoke - Grey

Part# 731-0981A (Superseded to 731-0981C)

Note: If equipped

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.40

731-0982A

Hub Cap - Rad. Spoke - Beige

Part# 731-0982A (Superseded to 731-0982C)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.74

731-1426

Hub-Cap- Rad. Spoke- Yellow

Part# 731-1426 (Superseded to 731-1426B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.21

738-0102

79

Rear Axle Bolt

Part# 738-0102 (Superseded to 938-0102)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.32

738-0213

Rear Axle Bolt

Part# 738-0213

Note: If equipped

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.68

750-0535

80

Spacer

Part# 750-0535 (Superseded to 950-0535)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

710-1248

81

Weld Pin

Part# 710-1248

OEM Warranty Repair Part for MTD

Currently unavailable

751B224437

Muffler Guard -(B&S Quantum)

Part# 751B224437

Note: Not shown

OEM Warranty Repair Part for MTD

Not available

710-1268

#10-16:3/8 Screw

Part# 710-1268

Note: Not shown

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

735-0639

Spark Plug Boot

Part# 735-0639

Note: Not shown

OEM Warranty Repair Part for MTD

Not available
