11A-439Q597 - Columbia 21" Walk-Behind Mower (2009) General Assembly Parts Diagram

21" Walk-Behind Mower

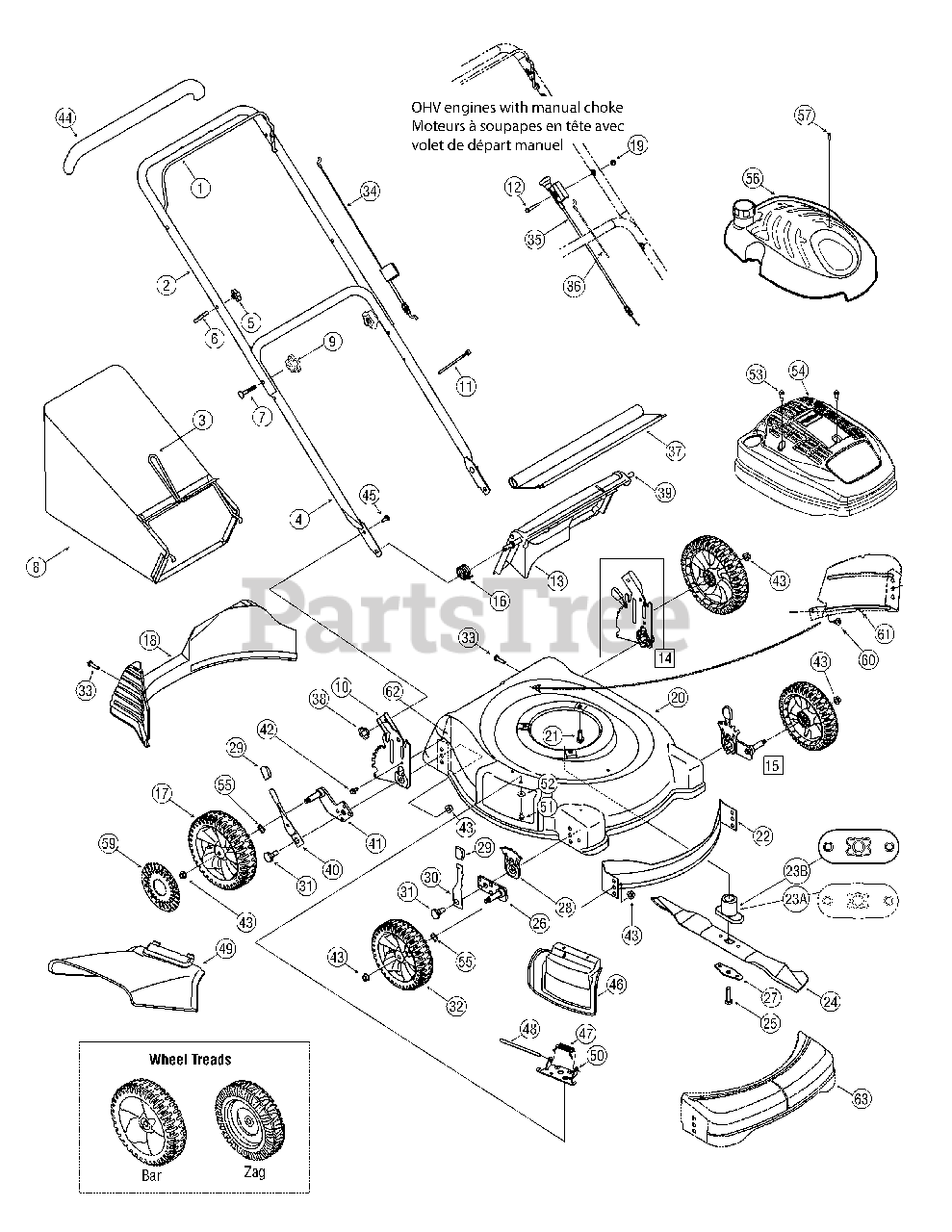

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A-0637

Blade Control Handle - Black

$12.99

$

In Stock, Qty 20+

0

2

MTD 749-1092A-0637

Upper Handle - Black

$45.99

$

In Stock, only 4 left!

0

3

MTD 747-04080A

Catcher Lower Frame

Variations

MTD 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$55.99

$

In Stock, Qty 11

0

$55.99

$

In Stock, Qty 11

0

4

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 10

0

$33.99

$

In Stock, Qty 10

0

5

MTD 720-0279

Knob 1/4-20

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 15

0

7

MTD 710-1174

Curved Carriage Bolt 5/16-18 x 2.00

$6.99

$

In Stock, Qty 20+

0

8

MTD 964-04007A

Generic Grasscatcher Bag

$124.99

$

In Stock, Qty 18

0

9

MTD 720-04072A

Knob - Star 5/16-18

$6.49

$

In Stock, Qty 20+

0

10

MTD 787-01381

LH Height Adj. Brkt.

Note: NLA

$

$

Currently unavailable

10

MTD 787-01382

RH Height Adj. Brkt.

Note: NLA

$

$

Currently unavailable

11

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

12

MTD 710-0606

Hex Cap Screw1/4-20 x 1.5" Lg.

$4.99

$

In Stock, Qty 15

0

13

MTD 731-06885

RB Chute Door

$

$

Not available

14

MTD 987-02270A

LH Rear Height Adj. Ass’y Complete

$35.99

$

In Stock, only 1 left!

0

14

MTD 987-02271A

RH Rear Height Adj. Ass’y Complete

$35.99

$

In Stock, only 1 left!

0

15

MTD 987-02075B

Height Adj. Ass’y LH (w/8" Frt Wheels)

$33.99

$

Usually ships in 3-6 days

0

15

MTD 987-02074B

Height Adj. Ass’y RH (w/8" Frt Wheels)

$37.99

$

In Stock, only 3 left!

0

16

MTD 732-04090A

Torsion Spring RH

$7.49

$

Usually ships in 3-6 days

0

17

MTD 753-08093

Wheel Ass'y 8 x 2.125 Idle BB Zag

$42.99

$

In Stock, Qty 11

0

18

MTD 731-04150C

RR Baf fle

$42.99

$

In Stock, only 2 left!

0

19

MTD 712-04064

Flange Locknut 1/4-20

$3.99

$

In Stock, Qty 20+

0

20

MTD 787-01279-0606

21" Deck Ass’y (w/ side discharge)

$

$

Not available

21

MTD 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$3.99

$

In Stock, only 4 left!

0

22

MTD 782-5002B

Front Baffle 21"
(Superseded to 782P5002B)

$

$

Not available

23

MTD 748-04082

Blade Adapter 25 mm x 2.15 (w/star)

$34.99

$

In Stock, Qty 17

0

24

MTD 942-0641

21" Blade (w/star)

$29.99

$

In Stock, only 1 left!

0

24

MTD 942-0741A

21" Mulching Blade (w/star)

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1257

Hex Bolt 3/8-24 x 2.5" Lg. Gr. 8

$7.49

$

In Stock, Qty 20+

0

26

MTD 987-02337

Pivot Bar RH

$16.99

$

In Stock, only 1 left!

0

26

MTD 987-02338

Pivot Bar LH

$16.99

$

In Stock, only 1 left!

0

27

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

28

MTD 787-01290A

Height Adjuster Plate

$11.99

$

In Stock, only 2 left!

0

29

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

30

MTD 94832

Spring Lever Ass’y (w/o knob)

$10.99

$

In Stock, Qty 8

0

31

MTD 738-04266

Shoulder Screw .50 Dia.

$5.99

$

Usually ships in 3-6 days

0

32

MTD 734-2004A

Wheel Ass'y 8 x 2.125 Idle BB Zag
(Superseded to 753-08093)

$42.99

$

In Stock, Qty 11

0

33

MTD 710-1241

Hex. L-Scr. 1/4-15 x 1.0

$6.49

$

In Stock, Qty 20+

0

34

MTD 946-1130

Control Cable 40.0" Lg. Snap-on

$16.99

$

In Stock, Qty 20+

0

35

MTD 746-04239A

Choke Cable Ass'y 38.0" Lg.

$46.99

$

Usually ships in 3-6 days

0

36

MTD 946-04299

ERS Cable Control 48.0 (w/manual choke)

$26.99

$

In Stock, Qty 8

0

37

MTD 731-05642A

Rear Flap

$26.99

$

In Stock, Qty 12

0

38

MTD 712-0397A

Wingnut 1/4-20

$3.99

$

In Stock, Qty 20+

0

39

MTD 747-04587

Pivot Rod

$14.99

$

Usually ships in 3-6 days

0

40

MTD 987-02078

Spring Lever SP (w/knob)

$14.99

$

Usually ships in 3-6 days

0

40

MTD 720-0426

Knob
(Superseded to 731-13116-1)

Note: Not shown

$12.99

$

In Stock, only 3 left!

0

41

MTD 987-02071A

Pivot Bar RH SP

$19.99

$

Usually ships in 3-6 days

0

41

MTD 987-02070A

Pivot Bar LH SP (not shown)

$19.99

$

Usually ships in 3-6 days

0

42

MTD 710-1652

Hex HD. TT Tap Scr. 1/4-20 x 5/8

$3.99

$

In Stock, Qty 20+

0

43

MTD 712-04065

Flange Locknut 3/8-16

$3.99

$

In Stock, Qty 20+

0

44

MTD 731-2626

Snap-On Bail Cover -Black

$11.99

$

In Stock, only 2 left!

0

45

MTD 710-0703

Carriage Bolt 1/4-20 x .75 Gr. 1

$3.99

$

In Stock, Qty 20+

0

46

MTD 987-02055

Complete Hinged Mulching Plug Ass'y

$25.99

$

In Stock, Qty 13

0

47

MTD 732-1014C

Torsion Spring

$7.49

$

In Stock, Qty 20+

0

48

MTD 747-0710A

Hinge Pin

$3.99

$

In Stock, Qty 20+

0

49

MTD 731-04177

Chute Deflector

$17.99

$

In Stock, Qty 20+

0

50

MTD 17032A

Chute Adapter

$10.99

$

In Stock, only 4 left!

0

51

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

52

MTD 736-0270

Cupped Washer .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 13

0

53

MTD 7510042823

Screw

$

$

Not available

54

MTD 751A1433513

Shroud

$

$

Not available

55

MTD 936-0504

Wave Washer (w/ball brg wheels only)

$4.49

$

In Stock, Qty 12

0

56

MTD 731-06265A

Shroud

$33.99

$

Usually ships in 3-6 days

0

57

MTD 710-04577

Screw (w/inserts in engine for shroud)
(Superseded to 710-04744)

$4.99

$

In Stock, Qty 11

0

57

MTD 710-04744

Screw (w/o inserts in engine for shroud)

$4.99

$

In Stock, Qty 11

0

59

MTD 731-0981C

Hub Cap -Grey

$9.99

$

In Stock, Qty 6

0

60

MTD 710-1017

Screw 1/4-14 x .625

$7.99

$

In Stock, Qty 20+

0

61

MTD 782-5003A

LH Rear Baffle

$28.99

$

Usually ships in 3-6 days

0

62

MTD 782-5004B

RH Rear Baffle

$23.99

$

Usually ships in 3-6 days

0

63

MTD 731-1523A

Cover

$

$

Not available
