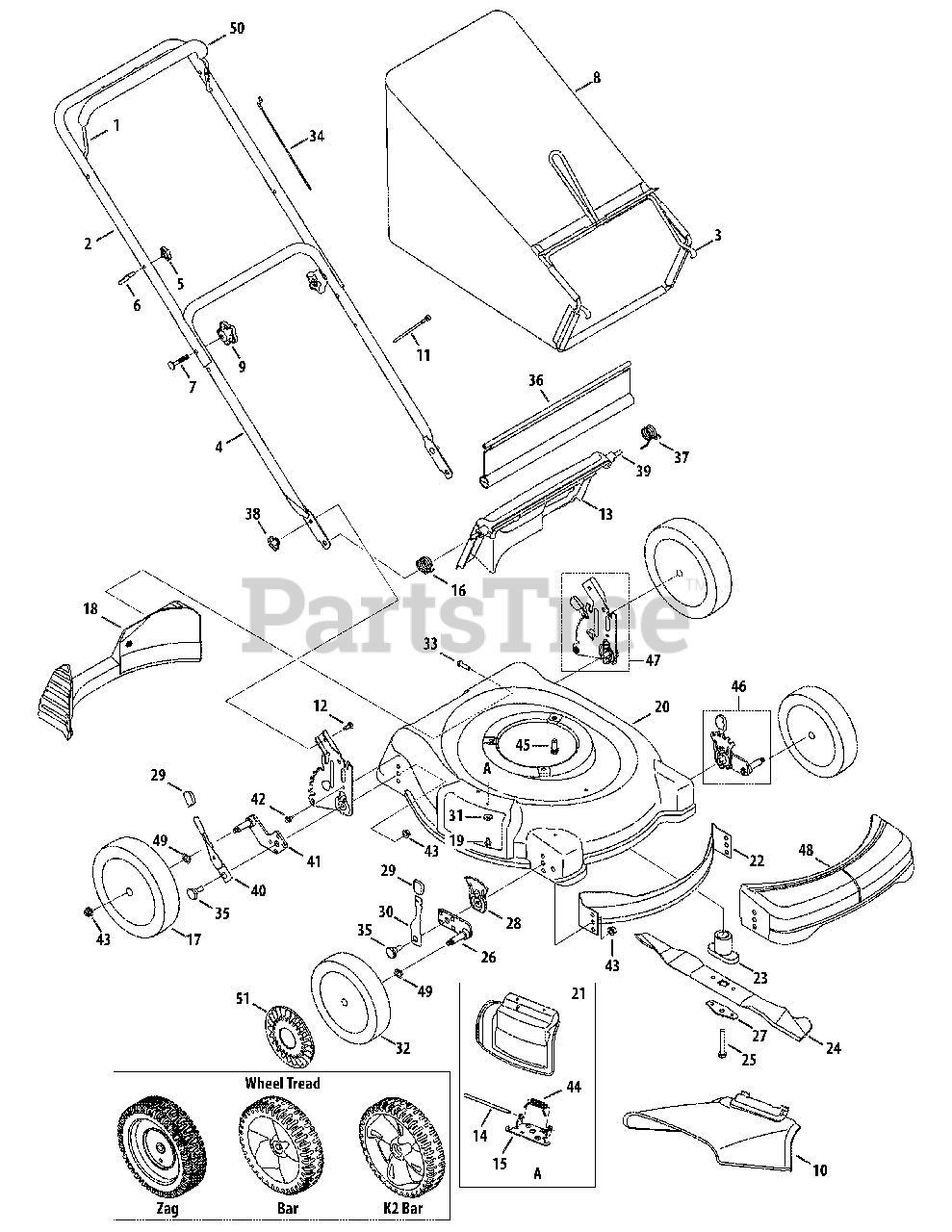

11A-439S204 - MTD Gold Walk-Behind Mower (2008) (Ace Hardware) General Assembly Parts Diagram

Gold Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$12.99

$

In Stock, Qty 20+

0

2

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$45.99

$

In Stock, only 4 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

3

MTD 747-04080A

Grass Catcher Frame

Variations

MTD 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$55.99

$

In Stock, Qty 11

0

$55.99

$

In Stock, Qty 11

0

4

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 10

0

$33.99

$

In Stock, Qty 10

0

5

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

7

MTD 710-1174

Carriage Bolt, 5/16-18 x 2

$6.99

$

In Stock, Qty 20+

0

8

MTD 664-04007A

Grass Bag - Black
(Superseded to 964-04007A)

$124.99

$

In Stock, Qty 18

0

8

MTD 664-04027

Grass Bag - Yardman
(Superseded to 964-04007A)

$124.99

$

In Stock, Qty 18

0

8

MTD 664-04034A

Grass Bag - Gray
(Superseded to 964-04007A)

$124.99

$

In Stock, Qty 18

0

9

MTD 720-04072

Hand Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

10

MTD 731-04177

Side Chute

$17.99

$

In Stock, Qty 20+

0

11

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

12

MTD 710-0703

Carriage Bolt, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

MTD 731-05865

Rear Discharge Door
(Superseded to 731-06847)

$26.99

$

Usually ships in 3-6 days

0

14

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

15

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 4 left!

0

16

MTD 732-04090A

Torsion Spring - RH

$7.49

$

Usually ships in 3-6 days

0

17

MTD 734-04215

Rear Wheel, 8 x 1.8, K2 Bar
(Superseded to 734-1987)

$21.99

$

In Stock, Qty 19

0

17

MTD 734-2005A

Rear Wheel, 8 x 2.125, Zag
(Superseded to 753-08093)

$42.99

$

In Stock, Qty 11

0

17

MTD 734-1987

Rear Wheel, 8 x 1.8, Bar

$21.99

$

In Stock, Qty 19

0

17

MTD 734-2004A

Rear Wheel, 8 x 2.125, Zag BB
(Superseded to 753-08093)

$42.99

$

In Stock, Qty 11

0

18

MTD 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

19

MTD 710-0599

Screw, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

20

MTD 787-01279

Deck - 21''

Variations

MTD 787-01279-0650

"No Longer Available DECK-21""" - RED METALLIC (0650)

$

$

Not available

MTD 787-01279-0691

Deck - 21" - BLACK JACK (0691)

$

$

Not available

MTD 787-01279-0709

Deck 21-inch - Green - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 787-01279-4043

DECK-21" - CRAFTSMAN METALLIC GRAY (4043)

$

$

Not available

MTD 787-01279-0606

21" Deck Ass’y (w/ side dis charge) - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 787-01279-0629

Deck 21-inch - Silver Flake - SILVER FLAKE (0629)

$

$

Not available

MTD 787-01279-0638

Deck 21-inch - Red - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01279-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01279-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

MTD 787-01279-0716

DECK-21" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 787-01279-0729

No Longer Available - STORM GRAY (0729)

$

$

Not available

$

$

21

MTD 687-02055

Hinged Mulch Plug Assembly
(Superseded to 987-02055)

$25.99

$

In Stock, Qty 13

0

22

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

23

MTD 748-0377C

Blade Adaptor, #6 x 2.15
(Superseded to 748-0377E)

$17.99

$

In Stock, Qty 16

0

23

MTD 748-04082

Blade Adaptor, 25mm x 2.15

$34.99

$

In Stock, Qty 16

0

24

MTD 742-0741

Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1257

Hex Screw, 3/8-24 x 2.5

$7.49

$

In Stock, Qty 20+

0

26

MTD 687-02338

Pivot Arm Assembly - RH 7'' Wheel
(Superseded to 987-02338)

$16.99

$

In Stock, only 1 left!

0

26

MTD 687-02337

Pivot Arm Assembly - LH 7'' Wheel
(Superseded to 987-02337)

$16.99

$

In Stock, only 1 left!

0

26

MTD 687-02337

Pivot Arm Assembly - RH 8'' Wheel'
(Superseded to 987-02337)

$16.99

$

In Stock, only 1 left!

0

26

MTD 687-02338

Pivot Arm Assembly - LH 8'' Wheel
(Superseded to 987-02338)

$16.99

$

In Stock, only 1 left!

0

27

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

28

MTD 787-01290

Front Adjustment Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

29

MTD 720-0426

Adjustment Lever Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

30

MTD 732-0404

Spring Lever Assembly
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

31

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 13

0

32

MTD 734-04213

Front Wheel, 7 x 1.8, K2 Bar
(Superseded to 734-1988)

$18.99

$

In Stock, Qty 10

0

32

MTD 734-2005A

Front Wheel, 8 x 2.125, Zag
(Superseded to 753-08093)

$42.99

$

In Stock, Qty 11

0

32

MTD 734-1988

Front Wheel, 7 x 1.8, Bar

$18.99

$

In Stock, Qty 10

0

32

MTD 734-2004A

Front Wheel, 8 x 2.125, Zag BB
(Superseded to 753-08093)

$42.99

$

In Stock, Qty 11

0

33

MTD 710-1241

Screw, 1/4-15 x 1.000

$6.49

$

In Stock, Qty 20+

0

34

MTD 746-1130

Control Cable 40''
(Superseded to 946-1130)

$16.99

$

In Stock, Qty 20+

0

34

MTD 746-1137

Control Cable 53''
(Superseded to 946-1137)

$19.99

$

In Stock, Qty 10

0

35

MTD 738-04266

Shoulder Screw

$5.99

$

Usually ships in 3-6 days

0

36

MTD 731-05642

Trailshield
(Superseded to 731-05642A)

$26.99

$

In Stock, Qty 12

0

37

MTD 732-04089A

Torsion Spring - LH

$7.49

$

Usually ships in 3-6 days

0

38

MTD 712-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

39

MTD 747-04587

Rear Door Pivot Rod

$14.99

$

Usually ships in 3-6 days

0

40

MTD 732-04175

Spring Lever

$10.99

$

Usually ships in 3-6 days

0

41

MTD 687-02333

Pivot Arm Assembly - RH
(Superseded to 987-02333)

$16.99

$

In Stock, Qty 6

0

41

MTD 687-02332

Pivot Arm Assembly - LH
(Superseded to 987-02332)

$16.99

$

In Stock, only 1 left!

0

42

MTD 710-1652

AB Screw

$3.99

$

In Stock, Qty 20+

0

43

MTD 712-04065

Flanged Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

44

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.49

$

In Stock, Qty 20+

0

45

MTD 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$3.99

$

In Stock, only 4 left!

0

46

MTD 687-02099B

Height Adjustment Ass'y Front - LH 7'' Wheel
(Superseded to 987-02099C)

$35.99

$

Usually ships in 3-6 days

0

46

MTD 687-02100B

Height Adjustment Ass'y Front - RH 7'' Wheel
(Superseded to 987-02100C)

$35.99

$

In Stock, only 1 left!

0

46

MTD 687-02075B

Height Adjustment Ass'y Front - LH 8'' Wheel
(Superseded to 987-02075B)

$33.99

$

Usually ships in 3-6 days

0

46

MTD 687-02074B

Height Adjustment Ass'y Front - RH 8'' Wheel
(Superseded to 987-02074B)

$37.99

$

In Stock, only 3 left!

0

47

MTD 687-02270A

Rear Handle Bracket Assembly - LH
(Superseded to 987-02270A)

$35.99

$

In Stock, only 1 left!

0

47

MTD 687-02271A

Rear Handle Bracket Assembly - RH
(Superseded to 987-02271A)

$35.99

$

In Stock, only 1 left!

0

48

MTD 731-1506A

Front Cover

Note: (If Equipped)

$

$

Not available

49

MTD 736-0504

Wave Washer
(Superseded to 936-0504)

Note: (If Equipped)

$4.49

$

In Stock, Qty 12

0

50

MTD 731-2626

Bail Cover - Black

Note: (If Equipped)

$11.99

$

In Stock, only 2 left!

0

50

MTD 731-04859

Bail Cover - Gray

Note: (If Equipped)

$10.99

$

Usually ships in 3-6 days

0

51

MTD 731-0981A

Hub Cap
(Superseded to 731-0981C)

Note: (If Equipped)

$9.99

$

In Stock, Qty 6

0
