11A-504K290 - White Outdoor 22" Walk-Behind Mower (2007) General Assembly Parts Diagram

22" Walk-Behind Mower

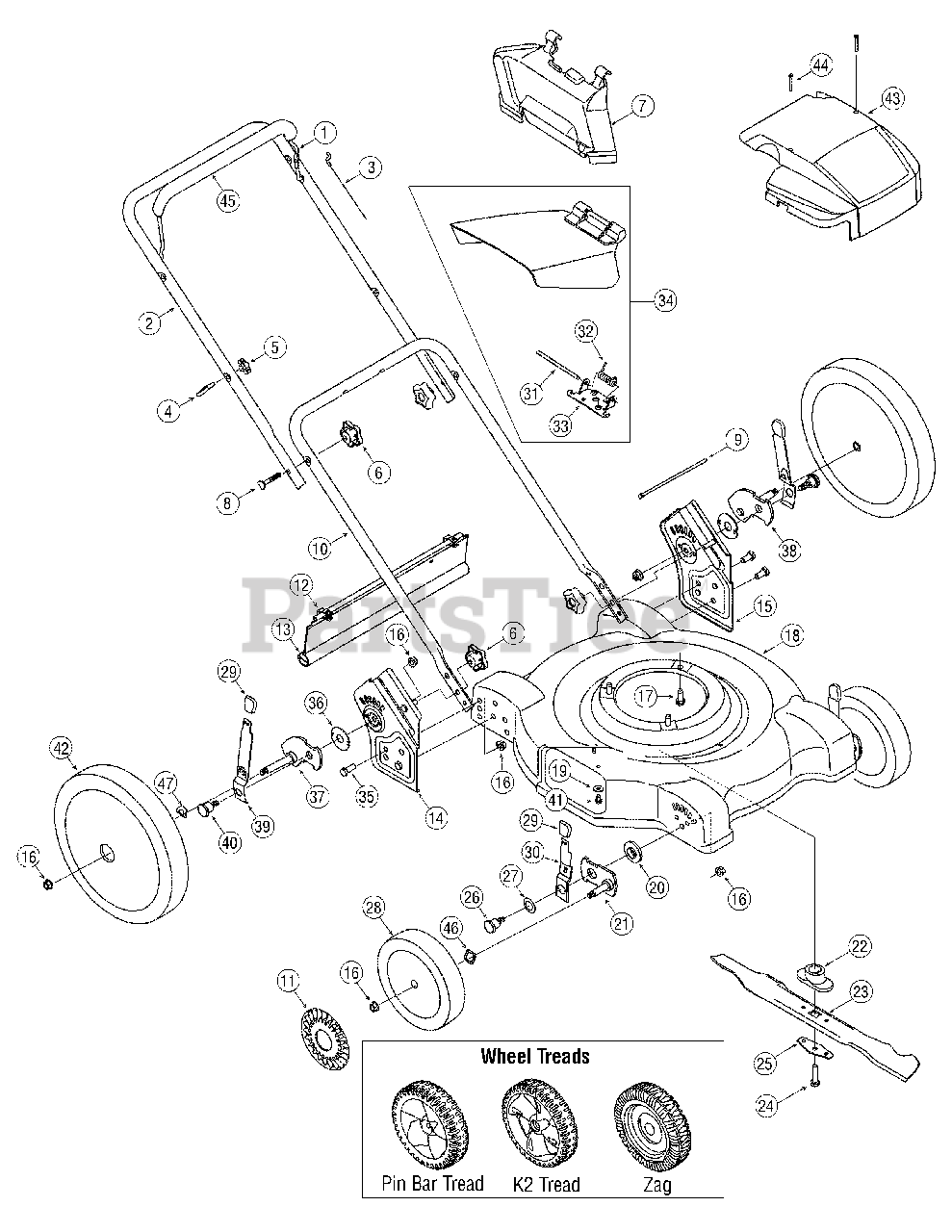

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A-0637

Blade Control

$12.99

$

In Stock, Qty 20+

0

2

MTD 749-1092A

Upper Handle

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$45.99

$

In Stock, only 4 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

3

MTD 946-0957

Blade Control Cable - 37.25"

$16.99

$

In Stock, Qty 20+

0

3

MTD 946-1130

Blade Control Cable - 40"

$16.99

$

In Stock, Qty 20+

0

3

MTD 946-0946

Blade Control Cable - 48.25"

$18.99

$

In Stock, Qty 9

0

4

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 15

0

5

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

MTD 720-04072A

Star Knob

$6.49

$

In Stock, Qty 20+

0

7

MTD 631-04045

Mulching Baffle

Note: If equipped

$18.99

$

Usually ships in 3-6 days

0

8

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$6.99

$

In Stock, Qty 20+

0

9

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

10

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$49.99

$

In Stock, Qty 19

0

$49.99

$

In Stock, Qty 19

0

11

MTD 731-0981C

Hub Cap

Note: If equipped

$9.99

$

In Stock, Qty 6

0

12

MTD 17098P

Hinge Clip

$

$

Not available

13

MTD 731-2537

Trail Shield

$18.99

$

In Stock, only 1 left!

0

14

MTD 982-3062A

Handle Bracket Assembly - RH

$46.99

$

Usually ships in 3-6 days

0

15

MTD 982-3063A

Handle Bracket Assembly - LH

$

$

Not available

16

MTD 712-04065

Lock Nut 3/8 -16

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$3.99

$

In Stock, only 4 left!

0

18

MTD 687-02048A

22" Deck Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 687-02048A-4044

DECK ASM-22" SIDE DISCHARGE - CRAFTSMAN RED (4044)

$161.99

$

Usually ships in 3-6 days

0

MTD 687-02048A-0606

DECK ASM-22" SIDE DISCHARGE - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 687-02048A-0629

DECK ASM-22" SIDE DISCHARGE - SILVER FLAKE (0629)

$

$

Not available

MTD 687-02048A-0638

DECK ASM-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 687-02048A-0665

DECK ASM-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$

$

Not available

MTD 687-02048A-0691

DECK ASM-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

MTD 687-02048A-0709

DECK ASM-22" SIDE DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 687-02048A-4043

DECK ASM-22" SIDE DISCHARGE - CRAFTSMAN METALLIC GRAY (4043)

$

$

Not available

$140.99

$

Usually ships in 3-6 days

0

18

MTD 787-01097A

22" Deck Assembly - No Sprig
(Superseded to 753-08124)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 787-01097A-0629

KIT-DECK REPLACE F - SILVER FLAKE (0629)

$121.99

$

Usually ships in 3-6 days

0

MTD 787-01097A-0638

KIT-DECK REPLACE F - MTD/TROY-BILT RED (0638)

$121.99

$

Usually ships in 3-6 days

0

MTD 787-01097A-0665

KIT-DECK REPLACE F - YARDMAN GREEN (0665)

$121.99

$

Usually ships in 3-6 days

0

MTD 787-01097A-0691

KIT-DECK REPLACE F - BLACK JACK (0691)

$121.99

$

Usually ships in 3-6 days

0

MTD 787-01097A-0709

KIT-DECK REPLACE F - MASTERCRAFT GREEN (0709)

$121.99

$

Usually ships in 3-6 days

0

$121.99

$

Usually ships in 3-6 days

0

19

MTD 736-0270

Bell Washer.265 x.75

$3.99

$

In Stock, Qty 12

0

20

MTD 741-0751

Height Adjuster Bearing

$7.99

$

Usually ships in 3-6 days

0

21

MTD 987-02094

Pivot Arm Assembly

$27.99

$

Usually ships in 3-6 days

0

22

MTD 748-0376E

Blade Adapter

$19.99

$

In Stock, Qty 20+

0

23

MTD 942-0742A

22" Mulching Blade

Note: If equipped

$24.99

$

In Stock, Qty 8

0

23

MTD 942-0642A

22" Standard Blade

$26.99

$

In Stock, Qty 5

0

24

MTD 710-1044

Hex Cap Screw 3/8-24 x 1.5

$3.99

$

In Stock, Qty 20+

0

25

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

26

MTD 738-1172

Shoulder Screw 3/8 - 16 x.302

$5.49

$

Usually ships in 3-6 days

0

27

MTD 736-0741

Bell Washer.760 ID x 1.25 OD

$4.49

$

In Stock, only 1 left!

0

28

MTD 734-1988

Front Wheel, 7 x 1.8, Pin Bar

$18.99

$

In Stock, Qty 10

0

28

MTD 734-04176A

Front Wheel, 7 x 2.125, Zag

$43.99

$

Usually ships in 3-6 days

0

29

MTD 720-0426

Height Adjuster Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

30

MTD 732-1026

Front Spring Lever

$6.49

$

In Stock, only 3 left!

0

31

MTD 747-0710A

Hinge Pin

$3.99

$

In Stock, Qty 20+

0

32

MTD 732-1014C

Torsion Spring

$7.49

$

In Stock, Qty 20+

0

33

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 4 left!

0

34

MTD 931-1034B

Side Discharge Chute Assembly

$67.99

$

In Stock, Qty 12

0

35

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$3.99

$

In Stock, Qty 17

0

36

MTD 741-0717

Thrust Brg., .688 ID x 1.94 OD

$

$

Not available

37

MTD 687-02080

Rear Pivot Arm Assembly - RH

$

$

Not available

38

MTD 687-02079

Rear Pivot Arm Assembly - LH

$16.99

$

Usually ships in 3-6 days

0

39

MTD 732-0984B

Rear Spring Lever

$

$

Not available

40

MTD 738-1127B

Shoulder Screw 3/8 - 16 x.442

$6.99

$

In Stock, Qty 16

0

41

MTD 710-0599

Screw 1/4-20 x.50

$3.99

$

In Stock, Qty 20+

0

42

MTD 734-04082

Rear Wheel, 12 x 1.8, K2 Bar

$42.99

$

In Stock, only 1 left!

0

42

MTD 734-04082

Rear Wheel, 12 x 1.8, Pin Bar

$42.99

$

In Stock, only 1 left!

0

42

MTD 734-04093

Rear Wheel, 12 x 2.125, Zag

$63.99

$

In Stock, only 2 left!

0

43

MTD 751B698264

Engine Shroud

Note: NLA If equipped

$

$

Currently unavailable

44

MTD 751B095050

Screw, #8-18 x 1.25

Note: NLA If equipped

$

$

Currently unavailable

45

MTD 731-04859

Bail Cover

Note: If equipped

$10.99

$

Usually ships in 3-6 days

0

46

MTD 936-0504

Wave Washer

Note: If equipped

$4.49

$

In Stock, Qty 12

0

47

MTD 736-0182

Spring Washer

Note: If equipped

$4.49

$

In Stock, Qty 10

0
