11A-518N206 - Ranch King Walk-Behind Mower (1998)

Walk-Behind Mower

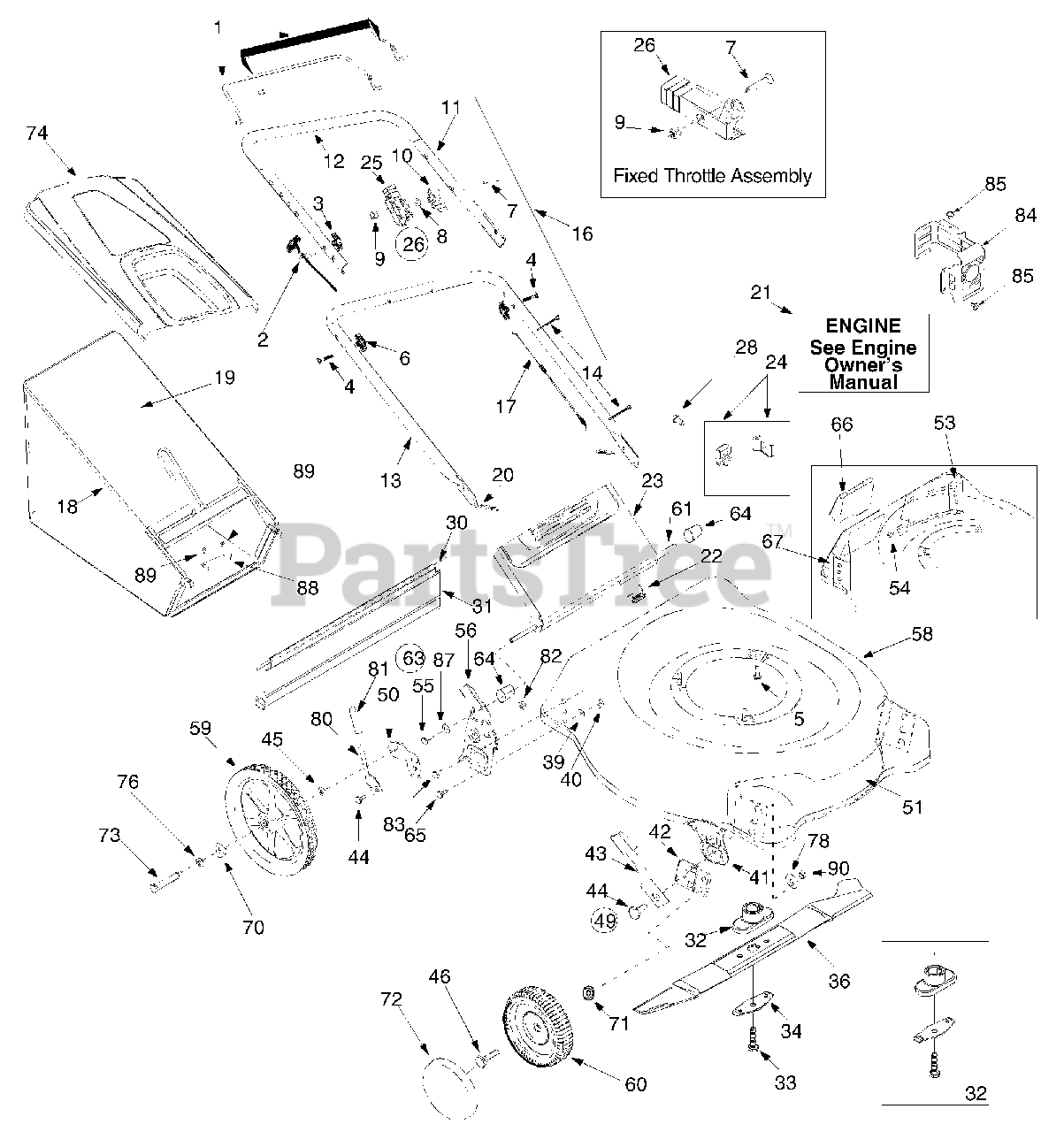

11A-518N206 - Ranch King Walk-Behind Mower (1998) > Parts Diagrams (1) > General Assembly

  • Title
747-0824

1

Control Handle Assembly - Standard

Part# 747-0824

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Control Handle Assembly

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $46.39

647-0004

Control Handle Assembly

Part# 647-0004 (Superseded to 747-0824B-0637)

Note: (Deluxe)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $46.39

710-1205

2

Rope Guide

Part# 710-1205

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

720-0279

3

Handle Knob

Part# 720-0279

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-1174

4

Curved Hd. Bolt 5/16-18 x 2" Lg.

Part# 710-1174

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.03

710-0654A

5

Scr. TT. 3/8-16 x 1.00" Lg. Hx Ind Wash.

Part# 710-0654A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

720-0276

6

Hand Knob

Part# 720-0276 (Superseded to 920-0276)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.60

710-0605

7

Oval C-Sunk Scr. 1/4-20 x 1.825 Lg.

Part# 710-0605

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.08

710-1270

Oval C-Sunk Scr. 1/4-20 x 1.310 Lg.

Part# 710-1270

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0501

8

Spring Washer

Part# 736-0501 (Superseded to 936-0501)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.81

712-0324

9

Hex Lock Nut 1/4-20 Thd.

Part# 712-0324

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.68

746-0876

10

Throttle Lever

Part# 746-0876 (Superseded to 946-0876)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.97

749-0438B-0648

11

Upper Handle - Grey

Part# 749-0438B-0648

OEM Warranty Repair Part for MTD

Currently unavailable

749-0438B-0637

Upper Handle - Black

Part# 749-0438B-0637 (Superseded to 749-0438D-0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.05

720-0295

12

Foam Grip

Part# 720-0295

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $23.27

749-0907A-0648

13

Lower Handle - Tec. Grey

Part# 749-0907A-0648

OEM Warranty Repair Part for MTD

Currently unavailable

749-0907A-0637

Lower Handle - Powder Black

Part# 749-0907A-0637 (Superseded to 749-0907B)

OEM Warranty Repair Part for MTD

Not available

726-0240

14

Cable Tie

Part# 726-0240 (Superseded to 725-0157)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.74

746-0553

16

Control Cable - 36"

Part# 746-0553 (Superseded to 946-0553)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $17.99

746-0550

Control Cable - 39"

Part# 746-0550 (Superseded to 946-0550)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.98

746-0737

Control Cable - 51"

Part# 746-0737 (Superseded to 946-0737)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $20.21

746-0552

Control Cable - 49"

Part# 746-0552 (Superseded to 946-0552)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $30.42

746-0843

17

Throttle Control Wire - 55"

Part# 746-0843 (Superseded to 946-0671A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.40

746-0842

Throttle Control Wire - 51"

Part# 746-0842 (Superseded to 946-0671A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.40

746-0847

Throttle Control Wire - 42"

Part# 746-0847 (Superseded to 946-1115)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $20.74

747-0995

18

Grass Catcher Frame

Part# 747-0995

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Grass Catcher Bag Frame, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $66.89

664-0084

19

Grass Catcher Bag w/o Icon

Part# 664-0084 (Superseded to 964-0084)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $138.92

664-0085

Grass Catcher Bag w/ Yellow Icon

Part# 664-0085 (Superseded to 964-0084)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $138.92

664-0086

Grass Catcher Bag w/ Red Icon

Part# 664-0086 (Superseded to 964-0084)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $138.92

714-0104

20

Hairpin Clip

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

21

Engine

Part#

Note: (See Engine Manual)

Not available

732-0809

22

Door Spring

Part# 732-0809 (Superseded to 932-0809)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.00

782-7599A

23

Grass Bag Door

Part# 782-7599A

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

DOOR-GRASSBAG 21"

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

751B213146

24

Cable Clamp

Part# 751B213146 (Superseded to BS-690798)

Note: (B&S)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.35

7510007775

Cable Clamp

Part# 7510007775 (Superseded to TC-27793)

Note: (Tec)

OEM Warranty Repair Part for MTD

Not available

646-0875

25

Throttle Body

Part# 646-0875 (Superseded to 946-0875)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.99

811-00185

26

Throttle Box - Complete

Part# 811-00185 (Superseded to 811-0185)

Note: (Inc. ref. 7,8,9,10 & 25)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $27.13

746-0883

Throttle Box - Complete

Part# 746-0883

Note: (Fixed Speed)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.43

710-1237

28

Hex Wash Hd. Scr. #10-32 x .62 Lg.

Part# 710-1237

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

710-0871

Hex Slot Scr. #10-32 x .38 Lg.

Part# 710-0871

OEM Warranty Repair Part for MTD

Not available

732-0700

30

Wire Rod

Part# 732-0700

OEM Warranty Repair Part for MTD

Not available

731-1236

31

Rear Flap

Part# 731-1236 (Superseded to 731-04998)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $22.34

753-0588

32

Blade Adapter Kit

Part# 753-0588 (Superseded to 753-06315)

Note: (Incl. ref. 33 & 34)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $11.44

710-1044

33

Hex Bolt 3/8-24 x 1.5 Lg.

Part# 710-1044

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.79

736-0524A

34

Blade Bell Support

Part# 736-0524A (Superseded to 736-0524B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.87

742-0641

36

21" Blade (Std.)

Part# 742-0641 (Superseded to 942-0641)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $25.45

742-0741

21" Blade (Mulching)

Part# 742-0741 (Superseded to 942-0741A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $26.82

736-0356

39

Bell Washer .39 I.D. x 1.38 I.D.

Part# 736-0356 (Superseded to 936-0356)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.03

712-0798

40

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

15261A

41

Height Adj. Plate

Part# 15261A (Superseded to 787-01290A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.48

15262B

42

Pivot Bar

Part# 15262B

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.79

Variations

POWDER BLACK (0637)

PIVOT BAR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

14832

43

Spring Lever, Front Wheel

Part# 14832 (Superseded to 94832)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.61

738-507B

44

Shoulder Bolt, .5" Dia. x .357"

Part# 738-507B

OEM Warranty Repair Part for MTD

Currently unavailable

736-0105

45

Bell Wash. .38" I.D. x .88" O.D.

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

738-0102

46

Front Axle Bolt

Part# 738-0102 (Superseded to 938-0102)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.32

14578

49

Height Adjuster Ass'y Comp. - R.H.

Part# 14578 (Superseded to 753-06761)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $46.15

14579

Height Adjuster Ass'y Comp. - L.H.

Part# 14579 (Superseded to 753-06761)

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $46.15

17488

50

Pivot bar - R.H.

Part# 17488 (Superseded to 17488A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.90

17489

Pivot bar - L.H.

Part# 17489 (Superseded to 17489A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.94

782-5002

51

Front Baffle

Part# 782-5002

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Front Baffle

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

782-5003

53

Rear Baffle

Part# 782-5003

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Left Rear Baffle

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $21.24

710-1017

54

Torx Mach.Ab-Tap Scr. 1/4-14 x .625. Lg.

Part# 710-1017

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.82

710-0599

55

Scr. TT. 1/4-20 x .500 Hx Ind Wash.

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

682-3056

56

Handle Bracket Ass'y - R.H.

Part# 682-3056

OEM Warranty Repair Part for MTD

Variations

MTD/TROY-BILT RED (0638)

Handle Bracket Kit

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.92

OYSTER GRAY (0662)

Handle Bracket Kit

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.92

YARDMAN GREEN (0665)

Handle Bracket Kit

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.92

MIDNIGHT BLUE (0667)

Handle Bracket Kit

Part# MIDNIGHT BLUE (0667)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.92

BLACK JACK (0691)

Handle Bracket Kit

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.92

HUNTER GREEN (0698)

Handle Bracket Kit

Part# HUNTER GREEN (0698)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.92

682-3057

Handle Bracket Ass'y - L.H.

Part# 682-3057

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Variations

MAJESTIC ORANGE (0606)

Handle Bracket Kit

Part# MAJESTIC ORANGE (0606)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.92

MTD/TROY-BILT RED (0638)

Handle Bracket Kit

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.92

OYSTER GRAY (0662)

Handle Bracket Kit

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.92

YARDMAN GREEN (0665)

Handle Bracket Kit

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.92

MIDNIGHT BLUE (0667)

Handle Bracket Kit

Part# MIDNIGHT BLUE (0667)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.92

BLACK JACK (0691)

Handle Bracket Kit

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.92

HUNTER GREEN (0698)

Handle Bracket Kit

Part# HUNTER GREEN (0698)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.92

782-0310A-0691

58

Deck - Black

Part# 782-0310A-0691

OEM Warranty Repair Part for MTD

Not available

782-0310A-0606

Deck - Orange

Part# 782-0310A-0606

OEM Warranty Repair Part for MTD

Not available

782-0310A-0650

Deck - Red

Part# 782-0310A-0650

OEM Warranty Repair Part for MTD

Currently unavailable

782-0310A-0662

Deck - Grey

Part# 782-0310A-0662

OEM Warranty Repair Part for MTD

Not available

782-0310A-0667

Deck - Blue

Part# 782-0310A-0667

OEM Warranty Repair Part for MTD

Currently unavailable

782-0310A-0483

Deck - Charcoal

Part# 782-0310A-0483

OEM Warranty Repair Part for MTD

Not available

782-0310A-0629

Deck - Silver

Part# 782-0310A-0629

OEM Warranty Repair Part for MTD

Not available

782-0310A-0638

Deck - MTD Red

Part# 782-0310A-0638

OEM Warranty Repair Part for MTD

Not available

734-1864

59

Rear Wheel Ass'y. 14 x 1.8 Bar Grey

Part# 734-1864

Note: (Inc. 741-0484 Brg. Not Illustrated)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $50.32

734-1781

60

Fr. Wheel Ass'y. 8 x 1.75 Slot Bar Grey

Part# 734-1781

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $24.21

734-1841

Fr. Wheel Ass'y. 8 x 1.7 Aero Grey

Part# 734-1841 (Superseded to 934-1841)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.61

747-0996

61

Chute Door Pivot Rod

Part# 747-0996

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $22.53

682-3058

63

Handle Bracket Ass'y. - R.H.

Part# 682-3058 (Superseded to 753-05922)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.92

682-3059

Handle Bracket Ass'y. - L.H.

Part# 682-3059 (Superseded to 753-05922)

Note: (Not Shown)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $80.92

750-0434

64

Spacer .375 O.D. x .50 I.D. x 1.02" Lg

Part# 750-0434

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

710-0216

65

Hx Hd Cap Scr. 3/8-16 x .75 Lg.

Part# 710-0216

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.12

782-5007

66

Rear Mulch Plug

Part# 782-5007

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Mulching Baffle Plug

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.71

782-5004

67

Rear Mulch Baffle

Part# 782-5004

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BAFFLE-REAR RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $17.52

MTD/TROY-BILT RED (0638)

BAFFLE-REAR RH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $17.52

736-0182

70

Wave Washer

Part# 736-0182

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

736-0105

71

Spring Washer

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

731-0982A

72

Hub Cap, Radial, Beige

Part# 731-0982A (Superseded to 731-0982C)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.74

731-0981A

Hub Cap, Radial, Grey

Part# 731-0981A (Superseded to 731-0981C)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.40

738-0481

73

Rear Axle Bolt

Part# 738-0481 (Superseded to 938-0481A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.00

731-0066

74

Hardtop Cover w/ Logo

Part# 731-0066

OEM Warranty Repair Part for MTD

Not available

731-0068

Hardtop Cover w/o Logo

Part# 731-0068

OEM Warranty Repair Part for MTD

Not available

736-0456

76

Flat Washer

Part# 736-0456 (Superseded to 936-0456)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0356

78

Bell Washer

Part# 736-0356 (Superseded to 936-0356)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.03

732-0866

80

Spring Lever, Rear

Part# 732-0866

OEM Warranty Repair Part for MTD

Not available

720-0312

81

Foam Grip

Part# 720-0312

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.26

712-3005

82

Hex Flange Lock Nut, 3/8-16 Thd.

Part# 712-3005 (Superseded to 912-3005)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.81

710-0896

83

Scr. AB 1/4-14 x .625 Hx Ind Wash.

Part# 710-0896

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

751B224437

84

Muffler Guard

Part# 751B224437

OEM Warranty Repair Part for MTD

Not available

710-1268

85

Screw #10-16 x 3/8" Lg.

Part# 710-1268

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

736-0270

87

Bell Washer .265 x .75 x .062

Part# 736-0270

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

782-9050

88

Mtg. Bracket - Hardtop Cover

Part# 782-9050

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-MTG

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

710-0896

89

Scr. AB 1/4-20 x .625 Hx Ind Wash.

Part# 710-0896

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

712-0798

90

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06
