11A-543C700 - Yard Machines Walk-Behind Mower (2004) General Assembly Parts Diagram

Walk-Behind Mower

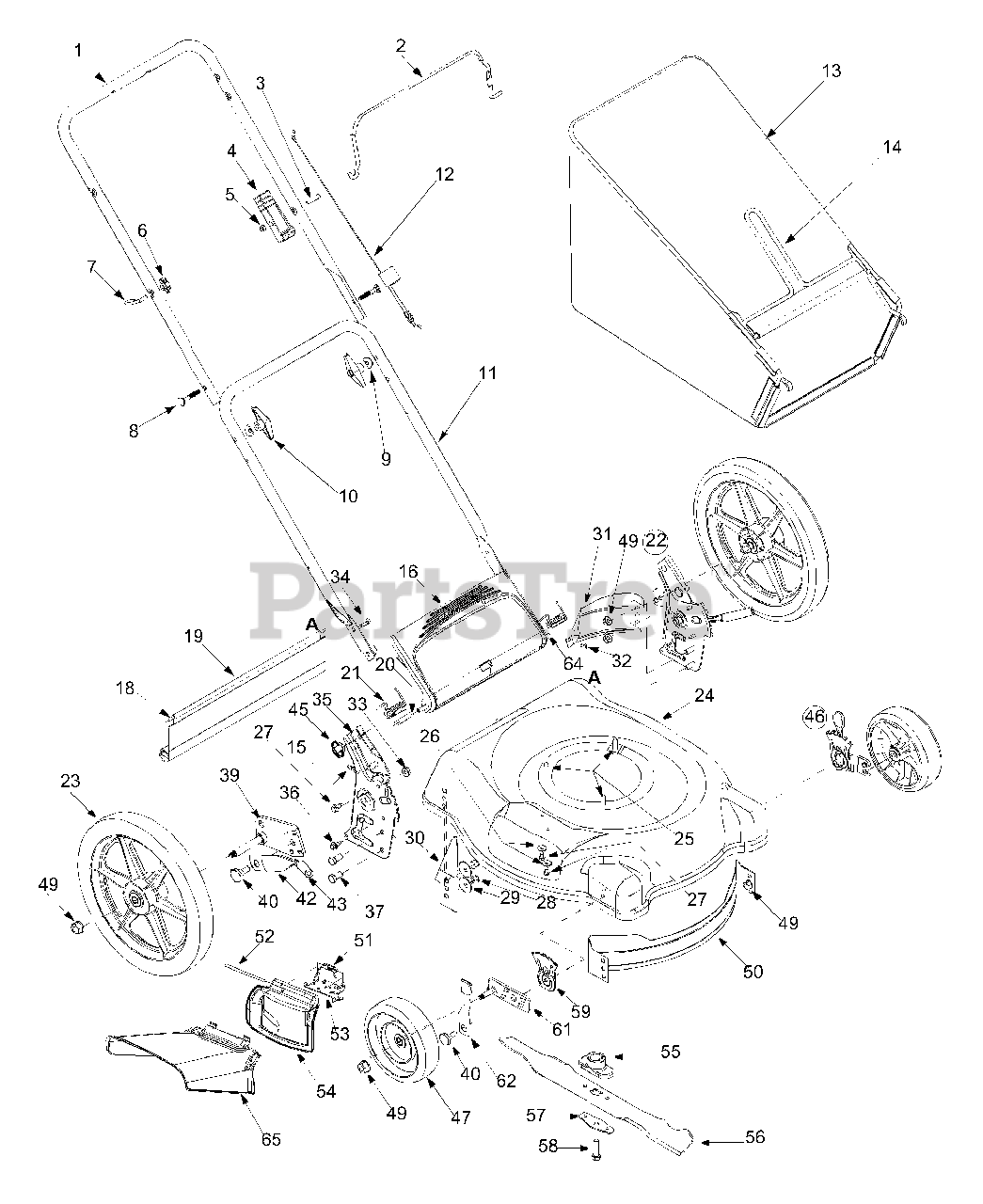

General Assembly Parts Diagram

  • Title

1

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$45.99

$

In Stock, only 4 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

2

MTD 747-1161A

Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$12.99

$

In Stock, Qty 20+

0

3

MTD 710-1270

C-Sunk Screw 1/4-20 x 1.3"

$4.49

$

In Stock, only 2 left!

0

4

MTD 746-0883

Throttle Housing

$15.99

$

In Stock, Qty 20+

0

5

MTD 712-0324

Hex Lock Nut 1/4-20

$3.49

$

In Stock, Qty 20+

0

6

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

8

MTD 710-1174

Carriage Bolt 5/16-18 x 2"

$6.99

$

In Stock, Qty 20+

0

9

MTD 736-0451

Shoulder Washer .320 ID x .930 OD

$3.99

$

In Stock, only 2 left!

0

10

MTD 720-0284

Wing Nut

$6.49

$

In Stock, Qty 20+

0

11

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 10

0

$33.99

$

In Stock, Qty 10

0

12

MTD 746-0957

Control Cable 37.25"
(Superseded to 946-0957)

$16.99

$

In Stock, Qty 20+

0

MTD 746-1130

Control Cable 40"
(Superseded to 946-1130)

$16.99

$

In Stock, Qty 20+

0

MTD 746-1137

Control Cable 53"
(Superseded to 946-1137)

$19.99

$

In Stock, Qty 11

0

13

MTD 664-04005

Grass Bag

$

$

Currently unavailable

14

MTD 747-04080

Grass Catcher Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$55.99

$

In Stock, Qty 11

0

$55.99

$

In Stock, Qty 11

0

15

MTD 714-0104

Hairpin Clip

$3.99

$

In Stock, Qty 20+

0

16

MTD 731-04134

Grass Bag Door
(Superseded to 931-04134)

$

$

Not available

17

MTD 782-5007A

Rear Mulch Plug
(Superseded to 782-5007C)

$48.99

$

In Stock, only 1 left!

0

18

MTD 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, Qty 8

0

19

MTD 731-1236

Trailshield
(Superseded to 731-04998)

$29.99

$

In Stock, Qty 10

0

20

MTD 750-04162

Spacer .375 O.D. x .50 I.D. x 1.02"
(Superseded to 950-04162)

$

$

Not available

21

MTD 732-04090

Torsion Spring - RH
(Superseded to 932-04090)

Note: Right Hand

$7.49

$

Usually ships in 3-6 days

0

MTD 732-04089

Torsion Spring - LH
(Superseded to 732-04089A)

Note: Left Hand

$7.49

$

Usually ships in 3-6 days

0

22

MTD 687-02056

Handle Bracket Assembly - RH
(Superseded to 987-02056)

Note: Right Hand

$

$

Not available

MTD 687-02057

Handle Bracket Assembly - LH

Note: Left Hand

$

$

Not available

23

MTD 734-04082

Rear Wheel: 8-Spoke Bar Gray 12 x 2

$42.99

$

In Stock, only 3 left!

0

MTD 734-04093

Rear Wheel: Zag Trd. Gray 12 x 2.125

Note: If equipped

$63.99

$

In Stock, only 2 left!

0

24

MTD 787-01104

Deck 21"

Variations

MTD 787-01104-0638

SERVICE KIT:21" DE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01104-0665

SERVICE KIT:21" DE - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01104-0691

SERVICE KIT:21" DE - BLACK JACK (0691)

$

$

Not available

MTD 787-01104-0709

SERVICE KIT:21" DE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

25

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$3.99

$

In Stock, only 4 left!

0

26

MTD 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 13

0

28

MTD 712-0130

Hex Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

29

MTD 736-0356

Bell Washer .390 ID x .380 OD
(Superseded to 936-0356)

$

$

Not available

30

MTD 782-5004

Rear Baffle - RH
(Superseded to 782-5004B)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

31

MTD 782-5003

Rear Baffle - LH
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

32

MTD 710-1017

Tap Screw 1/4-14 x .625.

$7.99

$

In Stock, Qty 20+

0

33

MTD 712-3005

Flange Lock Nut 3/8-16

$6.49

$

Usually ships in 3-6 days

0

34

MTD 710-0703

Hex Carriage Screw 1/4-20

$3.99

$

In Stock, Qty 20+

0

35

MTD 687-02033

Handle Bracket Assembly - RH
(Superseded to 987-02033)

Note: Right Hand

$

$

Not available

MTD 687-02031

Handle Bracket Assembly - LH

Note: Left Hand

$

$

Not available

36

MTD 710-1652

TT Screw 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

37

MTD 710-0216

Hex Screw 3/8-16 x 0.75

$3.99

$

In Stock, Qty 17

0

38

MTD 710-0514

Hex Cap Screw 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

39

MTD 687-02039

Pivot Bar Assembly - RH
(Superseded to 987-02335)

Note: Right Hand

$25.99

$

In Stock, only 1 left!

0

MTD 687-02040

Pivot Bar Assembly - LH
(Superseded to 987-02336)

Note: Left Hand

$

$

Not available

40

MTD 738-0507B

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

42

MTD 732-0866

Spring Lever

$

$

Not available

43

MTD 720-0312

Grip: Spring Lever

$4.49

$

In Stock, Qty 7

0

45

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

46

MTD 687-02074

Front Height Adjuster Assembly - RH
(Superseded to 987-02074B)

Note: Right Hand

$37.99

$

In Stock, only 3 left!

0

MTD 687-02075

Front Height Adjuster Assembly - LH
(Superseded to 987-02075B)

Note: Left Hand

$33.99

$

Usually ships in 3-6 days

0

47

MTD 734-1987

Front Wheel: 8-Spoke Bar Gray 8 x 2

$21.99

$

In Stock, Qty 19

0

MTD 734-2005A

Front Wheel: Zag Trd. Gray 8 x 2.125
(Superseded to 753-08093)

Note: If equipped

$42.99

$

In Stock, Qty 11

0

49

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

50

MTD 782-5002A

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002A-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.49

$

In Stock, Qty 20+

0

52

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

53

MTD 782-7006

Hinge Mounting Bracket

Variations

MTD 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

54

MTD 731-04161

Mulching Plug
(Superseded to 987-02055)

$25.99

$

In Stock, Qty 13

0

55

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$19.99

$

In Stock, Qty 20+

0

56

MTD 742-0741

Blade: 21" Mulching
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

57

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

58

MTD 710-1044

Hex Cap Screw 3/8-24 x 1.5

$3.99

$

In Stock, Qty 20+

0

59

MTD 15261A

Height Adjustment Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

60

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

61

MTD 687-02077

Pivot Bar Assembly - RH
(Superseded to 987-02077A)

Note: Right Hand

$16.99

$

In Stock, Qty 6

0

MTD 687-02076

Pivot Bar Assembly - LH
(Superseded to 987-02076A)

Note: Left Hand

$15.99

$

In Stock, only 1 left!

0

62

MTD 732-0404

Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

64

MTD 747-0996

Chute Door Pivot Rod

$29.99

$

Usually ships in 3-6 days

0

65

MTD 731-04177

Side Discharge Deflector

$17.99

$

In Stock, Qty 20+

0

66

MTD 731-1426A

Hubcap Radial Spoke Yellow
(Superseded to 731-1426B)

Note: If equipped; Not shown

$8.99

$

Usually ships in 3-6 days

0

MTD 731-0981A

Hubcap Radial Spoke Gray
(Superseded to 731-0981C)

Note: If equipped; Not shown

$9.99

$

In Stock, Qty 6

0
