11A-549C766 - Troy-Bilt Walk-Behind Mower (2005) General Assembly Parts Diagram

Walk-Behind Mower

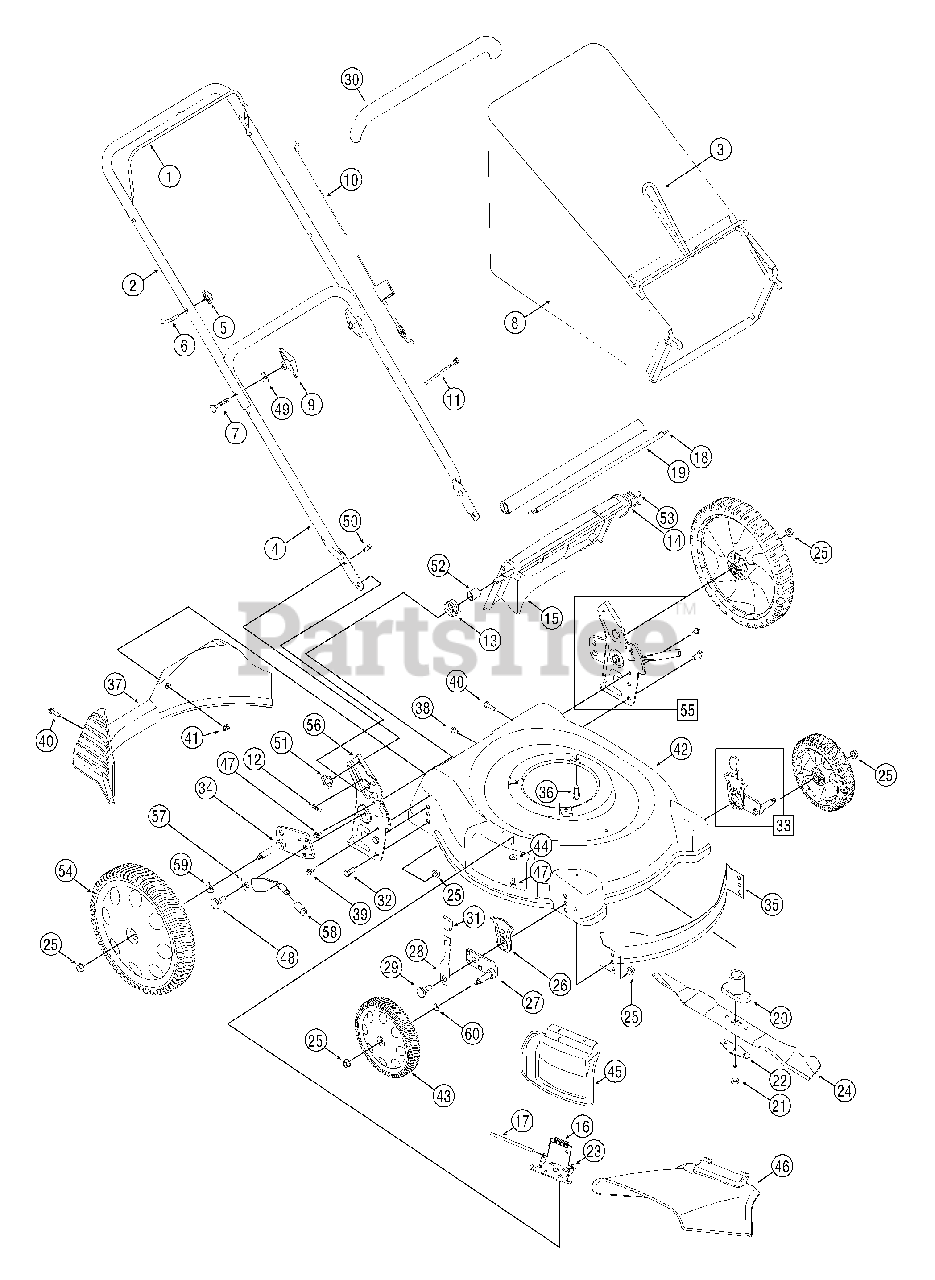

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 747-1161A-0637

Control Handle

$12.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 749-1092A

Upper Handle

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$45.99

$

In Stock, only 4 left!

0

Troy-Bilt 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 747-04080A

Grass Bag Frame

Variations

Troy-Bilt 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$55.99

$

In Stock, Qty 11

0

$55.99

$

In Stock, Qty 11

0

4

Troy-Bilt 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

Troy-Bilt 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 10

0

$33.99

$

In Stock, Qty 10

0

5

Troy-Bilt 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

7

Troy-Bilt 710-1174

Carriage Bolt 5/16-18 x 2"

$6.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 964-04007A

Grass Bag

$124.99

$

In Stock, Qty 18

0

9

Troy-Bilt 920-0284

Wing Nut
(Superseded to 720-0284)

$

$

Not available

10

Troy-Bilt 946-1130

Control Cable 40"

$16.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 926-0240

Cable Ties
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

12

Troy-Bilt 914-0104

Hairpin Clip
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 732-04090A

Torsion Spring - RH

$7.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 732-04089A

Torsion Spring - LH

$7.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 753-06366

Grass Bag Door

$46.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 732-1014C

Torsion Spring

$7.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 747-0710A

Hinge Pin

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, Qty 8

0

19

Troy-Bilt 731-04998

Trail shield

$29.99

$

In Stock, Qty 10

0

20

Troy-Bilt 748-0377E

Blade Adapter

$17.99

$

In Stock, Qty 16

0

21

Troy-Bilt 710-1257

Hex Cap Screw 3/8-24 x 2.5

$7.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 4 left!

0

24

Troy-Bilt 942-0741A

21" Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 912-0431

Flange Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 787-01290A

Height Adjustment Plate

$11.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 987-02077A

Pivot Arm Assembly - LH

$16.99

$

In Stock, Qty 6

0

27

Troy-Bilt 987-02076A

Pivot Arm Assembly - RH

$15.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 94832

Spring Lever

$10.99

$

In Stock, Qty 8

0

29

Troy-Bilt 938-0507B

Shoulder Screw
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 731-04204

Deluxe Bail Cover

$10.99

$

In Stock, Qty 5

0

31

Troy-Bilt 720-0426

Spring Lever Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

32

Troy-Bilt 710-0216

Hex Screw 3/8-16 x 0.75

$3.99

$

In Stock, Qty 17

0

33

Troy-Bilt 987-02074B

Front Height Adjuster Assembly - RH

$37.99

$

In Stock, only 3 left!

0

33

Troy-Bilt 987-02075B

Front Height Adjuster Assembly - LH

$33.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 987-02335

Pivot Arm Assembly - RH

$25.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 987-02336

Pivot Arm Assembly - LH

$

$

Not available

35

Troy-Bilt 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

36

Troy-Bilt 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$3.99

$

In Stock, only 4 left!

0

37

Troy-Bilt 731-04150C

Rear Baffle 21" Rd.

$42.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 710-0286

Machined Screw 1/4-20

$4.49

$

Usually ships in 3-6 days

0

39

Troy-Bilt 710-1652

TT Screw 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 710-04371

Hex Screw 1/4-15

$6.49

$

Usually ships in 3-6 days

0

41

Troy-Bilt 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

42

MTD 753-05200

Deck 21"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 753-05200-0638

SERVICE KIT:DECK 2 - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 753-05200-0650

SERVICE KIT:DECK 2 - RED METALLIC (0650)

$

$

Not available

$

$

43

Troy-Bilt 753-08175

Front Wheel 8x2.125 Gray IDL

$40.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 14

0

45

Troy-Bilt 987-02055

Mulching Plug

$25.99

$

In Stock, Qty 13

0

46

Troy-Bilt 731-04177

Side Discharge Deflector

$17.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 710-0599

Screw 1/4-20 x.500

$3.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 710-0514

Hex Cap Screw 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 936-0451

Shoulder Washer.320 ID x.930 OD
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 710-0703

Hex Carriage Screw 1/4-20

$3.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 712-0397A

Wing Nut

$3.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 950-04162

Spacer.375 O.D. x.50 I.D. x 1.02"

$

$

Not available

53

Troy-Bilt 747-0996

Chute Door Pivot Rod

$29.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 734-04019

Rear Wheel 12x2.125 Gray IDL

$65.99

$

In Stock, Qty 20+

0

55

MTD 987-02056

Handle Bracket Assembly - RH

$

$

Not available

55

MTD 687-02057

Handle Bracket Assembly - LH

Note: (No Longer Available)

$

$

Not available

56

Troy-Bilt 987-02033

Handle Bracket - RH

$

$

Not available

56

MTD 687-02031

Handle Bracket - LH

Note: (No Longer Available)

$

$

Not available

57

MTD 732-0866

Spring Lever

$

$

Not available

58

Troy-Bilt 720-0312

Spring Lever Grip

$4.49

$

In Stock, Qty 7

0

59

Troy-Bilt 736-0182

Spring Washer.500 x 1.00 x.022

$4.49

$

In Stock, Qty 10

0

60

Troy-Bilt 936-0504

Wave Washer.510 x.750 x.017

$4.49

$

In Stock, Qty 12

0
