11A-549Q897 - Columbia 21" Walk-Behind Mower (2010) General Assembly Parts Diagram

21" Walk-Behind Mower

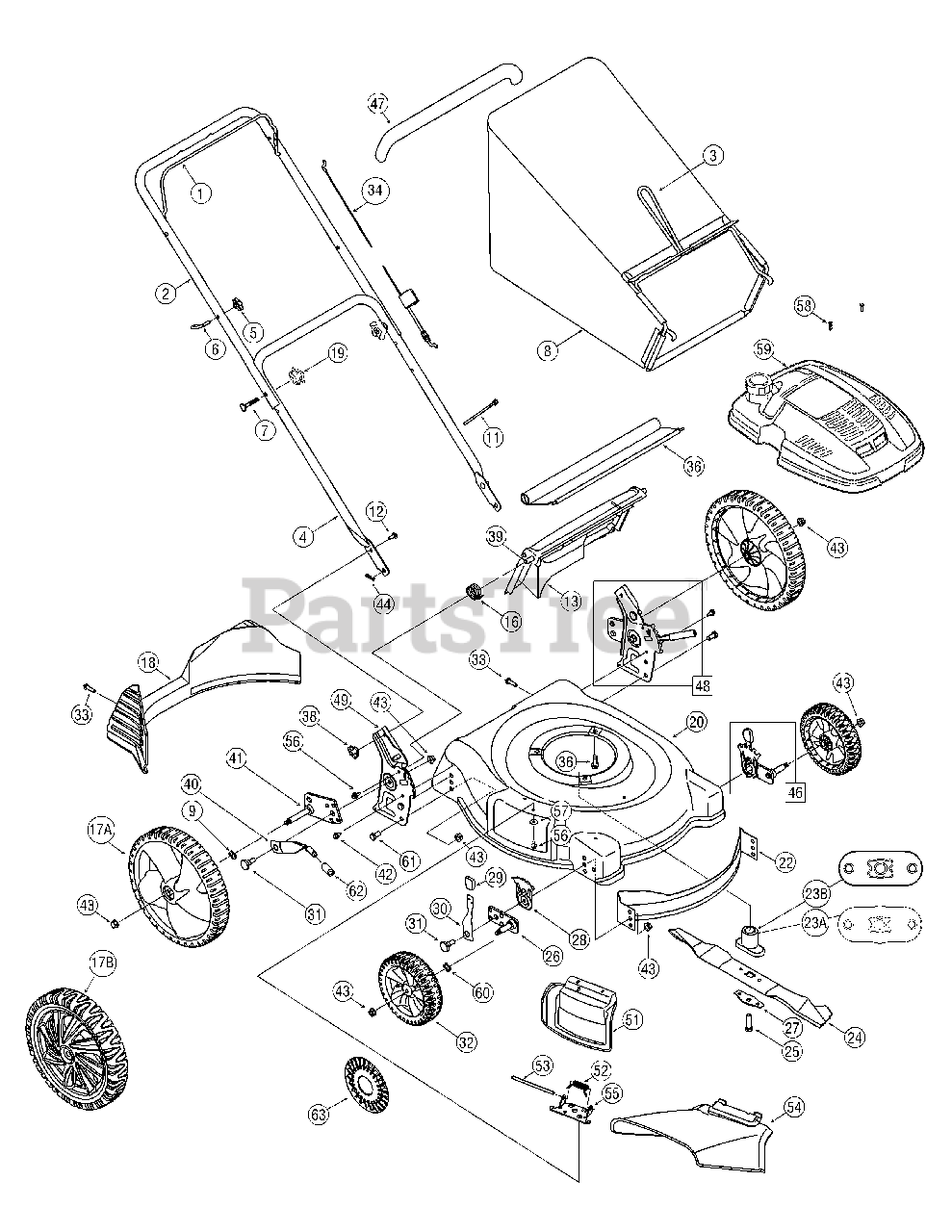

General Assembly Parts Diagram

  • Title

1

White Outdoor 747-1161A-0637

Blade Control Handle - Black

$12.99

$

In Stock, Qty 20+

0

2

White Outdoor 749-1092A-0637

Upper Handle - Black

$45.99

$

In Stock, only 4 left!

0

3

White Outdoor 747-04080A-0637

Catcher Lower Frame
(Superseded to 747-04080A)

$55.99

$

In Stock, Qty 11

0

4

White Outdoor 749-0928A-0637

Lower Handle

$33.99

$

In Stock, Qty 10

0

5

White Outdoor 720-0279

Knob 1/4-20

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 15

0

7

White Outdoor 710-1174

Curved Carriage Bolt 5/16-18 x 2.00

$6.99

$

In Stock, Qty 20+

0

8

White Outdoor 964-04007A

Generic Grasscatcher Bag - Black

$124.99

$

In Stock, Qty 18

0

9

White Outdoor 736-0182

Spring Wash. .5 x 1.0 (w/2" side rear wheels)

$4.49

$

In Stock, Qty 10

0

10

White Outdoor 710-0606

Hex Cap Screw1/4-20 x 1.5" Lg.

$4.99

$

In Stock, Qty 15

0

11

White Outdoor 926-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

12

White Outdoor 710-0703

Carriage Bolt 1/4-20 x .75 Gr. 1

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 731-06885

RB Chute Door

$

$

Not available

16

White Outdoor 732-04090A

RH Torsion Spring

$7.49

$

Usually ships in 3-6 days

0

17A

N/A

Not used in this application

$

$

Not available

17B

White Outdoor 734-04093

Wheel Ass'y Comp.12 x 2.125 Idle Zag Grey

$63.99

$

In Stock, only 2 left!

0

18

White Outdoor 731-04150C

RR Baffle

$42.99

$

In Stock, only 2 left!

0

19

White Outdoor 720-04072

Knob - Star 5/16-18
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

20

White Outdoor 787-01279-0606

21" Deck Ass’y (w/ side discharge)

$

$

Not available

22

White Outdoor 782-5002B

Front Baf fle 21"
(Superseded to 782P5002B)

$

$

Not available

23A

White Outdoor 748-04082

Blade Adapter 25 mm x 2.15 (w/star)

$34.99

$

In Stock, Qty 17

0

23B

N/A

Not used in this application

$

$

Not available

24

White Outdoor 942-0741

21" Mulching Blade (w/star)
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

25

White Outdoor 710-1257

Hex Bolt 3/8-24 x 2.5" Lg. Gr. 8

$7.49

$

In Stock, Qty 20+

0

26

White Outdoor 987-02337

Pivot Bar RH

$16.99

$

In Stock, only 1 left!

0

26

White Outdoor 987-02336

Pivot Bar LH

$

$

Not available

27

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

28

White Outdoor 787-01290A

Height Adjuster Plate

$11.99

$

In Stock, only 2 left!

0

29

White Outdoor 720-0426

Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

30

White Outdoor 94832

Spring Lever Ass’y

$10.99

$

In Stock, Qty 8

0

31

White Outdoor 738-04266

Shoulder Screw .50 Dia. x .385

$5.99

$

Usually ships in 3-6 days

0

32

734-02004A

Wheel Ass'y 8 x 2.125 Idle Zab BB

$

$

Not available

33

White Outdoor 710-1241

Hex. L-Scr. 1/4-15 x 1.0

$6.49

$

In Stock, Qty 20+

0

34

White Outdoor 746-1130

Control Cable 40.0" Lg. (w/Honda & B&S)
(Superseded to 946-1130)

$16.99

$

In Stock, Qty 20+

0

36

White Outdoor 731-05642A

Rear Flap

$26.99

$

In Stock, Qty 12

0

37

White Outdoor 712-04064

Flange Locknut 1/4-20

$3.99

$

In Stock, Qty 20+

0

38

White Outdoor 912-0397

Wingnut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

39

White Outdoor 747-04588

Pivot Rod

$16.99

$

Usually ships in 3-6 days

0

40

White Outdoor 732-0866

Spring Lever SP (w/o knob)

$

$

Not available

41

White Outdoor 987-02039A

Pivot Bar RH SP
(Superseded to 987-02335)

$25.99

$

In Stock, only 1 left!

0

41

White Outdoor 987-02040A

Pivot Bar LH SP (not shown)
(Superseded to 987-02336)

$

$

Not available

42

White Outdoor 710-1652

Hex HD. TT Tap Scr. 1/4-20 x 5/8

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 712-04065

Flange Locknut 3/8-16

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 914-0104

Int. Cotter Pin 5/16 DIA
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$3.99

$

In Stock, only 4 left!

0

46

White Outdoor 987-02075B

Height Adj. Ass’y LH (w/8" Front Wheels)

$33.99

$

Usually ships in 3-6 days

0

46

White Outdoor 987-02074B

Height Adj. Ass’y RH (w/8" Front Wheels)

$37.99

$

In Stock, only 3 left!

0

47

White Outdoor 731-04859

Snap-On Bail Cover - Grey

$10.99

$

Usually ships in 3-6 days

0

48

White Outdoor 987-02280A

LH Rear Height Adj. Ass’y Complete

$49.99

$

Usually ships in 3-6 days

0

48

White Outdoor 987-02279A

RH Rear Height Adj. Ass’y Complete

$49.99

$

Usually ships in 3-6 days

0

49

White Outdoor 987-02280A

LH Height Adj. Brkt.

$49.99

$

Usually ships in 3-6 days

0

49

White Outdoor 987-02279A

RH Height Adj. Brkt.

$49.99

$

Usually ships in 3-6 days

0

50

White Outdoor 736-0182

Spring Washer .50 ID x 1.0 OD x .022

$4.49

$

In Stock, Qty 10

0

51

White Outdoor 987-02055

Complete Hinged Mulching Plug Ass'y

$25.99

$

In Stock, Qty 13

0

52

White Outdoor 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.49

$

In Stock, Qty 20+

0

53

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

54

White Outdoor 731-04177

Chute Deflector

$17.99

$

In Stock, Qty 20+

0

55

White Outdoor 17032A

Chute Adapter

$10.99

$

In Stock, only 4 left!

0

56

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

57

White Outdoor 736-0270

Cupped Washer .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 13

0

58

White Outdoor 710-04577

Screw
(Superseded to 710-04744)

$4.99

$

In Stock, Qty 11

0

59

White Outdoor 731-05889

Shroud (w/MTD Engine)

$

$

Not available

60

White Outdoor 936-0504

Wave Washer .510 x .750 x .017

$4.49

$

In Stock, Qty 12

0

61

White Outdoor 710-0216

Hex Hd. Cap Screw 3/8-16 x .75

$3.99

$

In Stock, Qty 17

0

62

White Outdoor 720-0312

Knob

$4.49

$

In Stock, Qty 7

0

63

White Outdoor 731-07049

Hub Cap - Grey w/snaps

$8.49

$

Usually ships in 3-6 days

0
