11A-54M9006 - MTD Walk-Behind Mower (2009) Engine Assembly Parts Diagram

Walk-Behind Mower

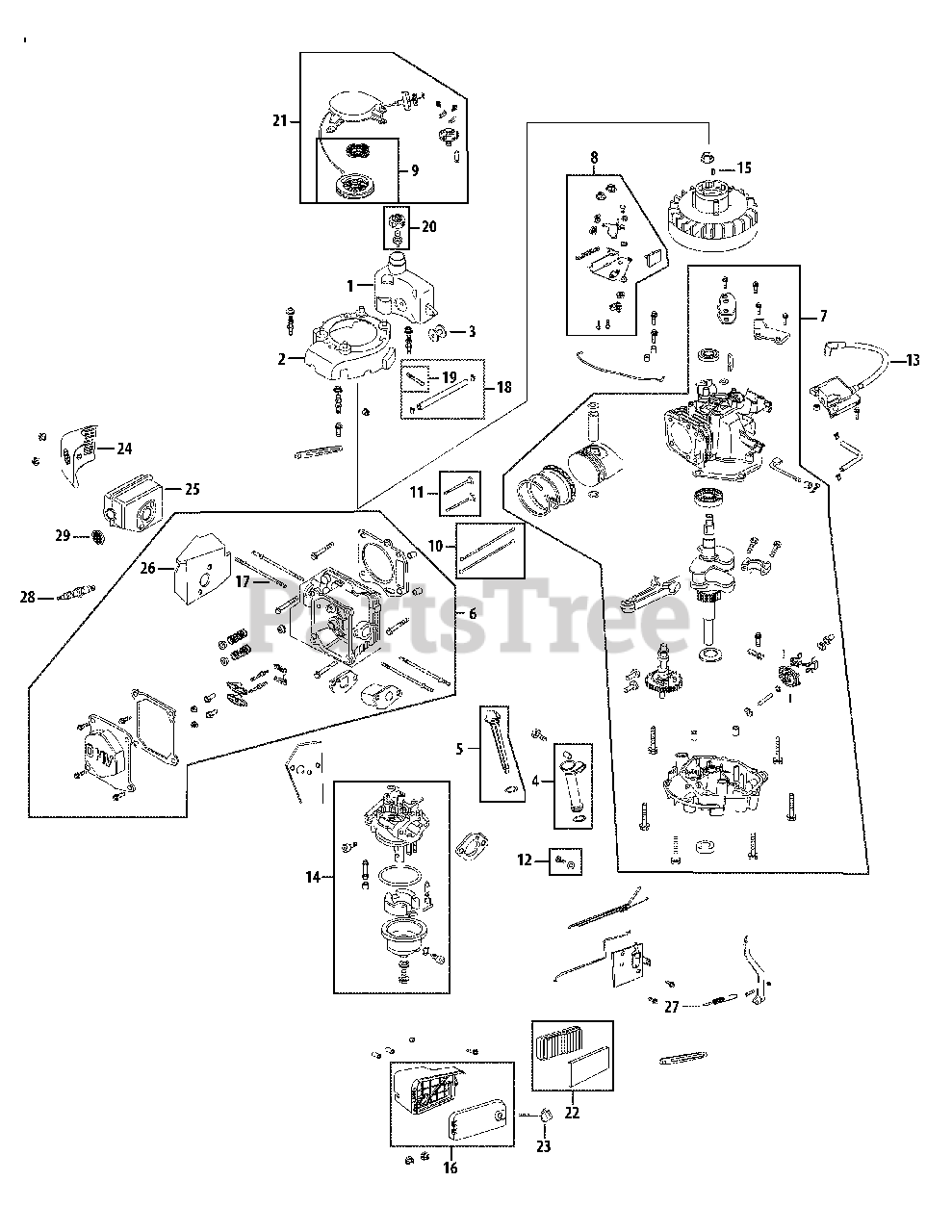

Engine Assembly Parts Diagram

  • Title

1

MTD 951-10337

Fuel Tank

$60.99

$

Usually ships in 3-6 days

0

2

MTD 951-10875

Flywheel Shroud

$42.99

$

Usually ships in 3-6 days

0

3

MTD 951-10335

Rubber Fuel Tank Mounting Washer

$5.49

$

In Stock, only 1 left!

0

4

MTD 951-10334

Oil Filler Tube Assembly

$20.99

$

Usually ships in 3-6 days

0

5

MTD 951-10333

Dipstick Assembly

$16.99

$

Usually ships in 3-6 days

0

6

MTD 951-10877

Cylinder Head Complete
(Superseded to 951-10877A)

$

$

Not available

7

MTD 951-10878

Short Block Assembly
(Superseded to 951-11789)

$341.99

$

Usually ships in 3-6 days

0

8

MTD 951-10320

Stop Switch and Brake Assembly
(Superseded to 951-10320A)

$37.99

$

Usually ships in 3-6 days

0

9

MTD 951-10319

Recoil Spring and Pulley Assembly

$44.99

$

In Stock, Qty 5

0

10

MTD 951-10314

Push Rod Kit

$16.99

$

Usually ships in 3-6 days

0

11

MTD 951-10313

Valve Kit

$60.99

$

In Stock, only 1 left!

0

12

MTD 951-10370

Oil Drain Plug and Washer Assembly

$8.49

$

Usually ships in 3-6 days

0

13

MTD 951-10367

Ignition Coil

$95.99

$

In Stock, only 2 left!

0

14

MTD 951-10873

Carburetor Assembly

$83.99

$

In Stock, only 1 left!

0

15

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 11

0

16

MTD 951-10876

Air Cleaner Housing Assembly Complete

$36.99

$

In Stock, Qty 6

0

17

MTD 951-10304

Muffler Stud Assembly
(Superseded to 710-05093)

$3.99

$

In Stock, only 2 left!

0

18

MTD 951-10363

Fuel Line Kit - Inc. hoses, clamps & filter

$26.99

$

In Stock, only 2 left!

0

19

MTD 951-10358

Fuel Filter
(Superseded to 951-12296A)

$9.49

$

In Stock, Qty 20+

0

20

MTD 951-10300

Fuel Cap Assembly

$10.99

$

In Stock, Qty 10

0

21

MTD 951-10299

Recoil Starter Assembly
(Superseded to 951-10299A)

$64.99

$

In Stock, Qty 17

0

22

MTD 951-10298

Air Cleaner Kit

$15.99

$

In Stock, Qty 20+

0

23

MTD 951-10297

Air Cleaner Thumb Screw

$5.49

$

In Stock, Qty 19

0

24

MTD 951-10404

Muffler Guard

$

$

Not available

25

MTD 951-10403

Muffler

$76.99

$

In Stock, only 1 left!

0

26

MTD 951-10402

Muffler Gasket /Heat Shield

$17.99

$

Usually ships in 3-6 days

0

27

MTD 951-10387

Governor Return Spring

$6.99

$

In Stock, Qty 11

0

28

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

29

MTD 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$51.99

$

Usually ships in 3-6 days

0

MTD 952Z5P65M0

Engine - Complete
(Superseded to 952Z5P65M0A)

Note: Not Shown

$

$

Not available

MTD 951-10874

Carburetor Kit - Major
(Superseded to 951-10874A)

Note: Not Shown

$

$

Not available

MTD 951-10846

Cylinder Head Service Kit
(Superseded to 951-10846A)

Note: Not Shown

$18.99

$

Usually ships in 3-6 days

0

MTD 951-10409

Gasket Kit - Complete
(Superseded to 951-10409A)

Note: Not Shown

$57.99

$

Usually ships in 3-6 days

0

MTD 951-10410

Gasket Kit - External
(Superseded to 951-10410A)

Note: Not Shown

$

$

Not available
