11A-54MC000 - Yard Machines Walk-Behind Mower (2008) Engine Assembly 1P70 Parts Diagram

Walk-Behind Mower

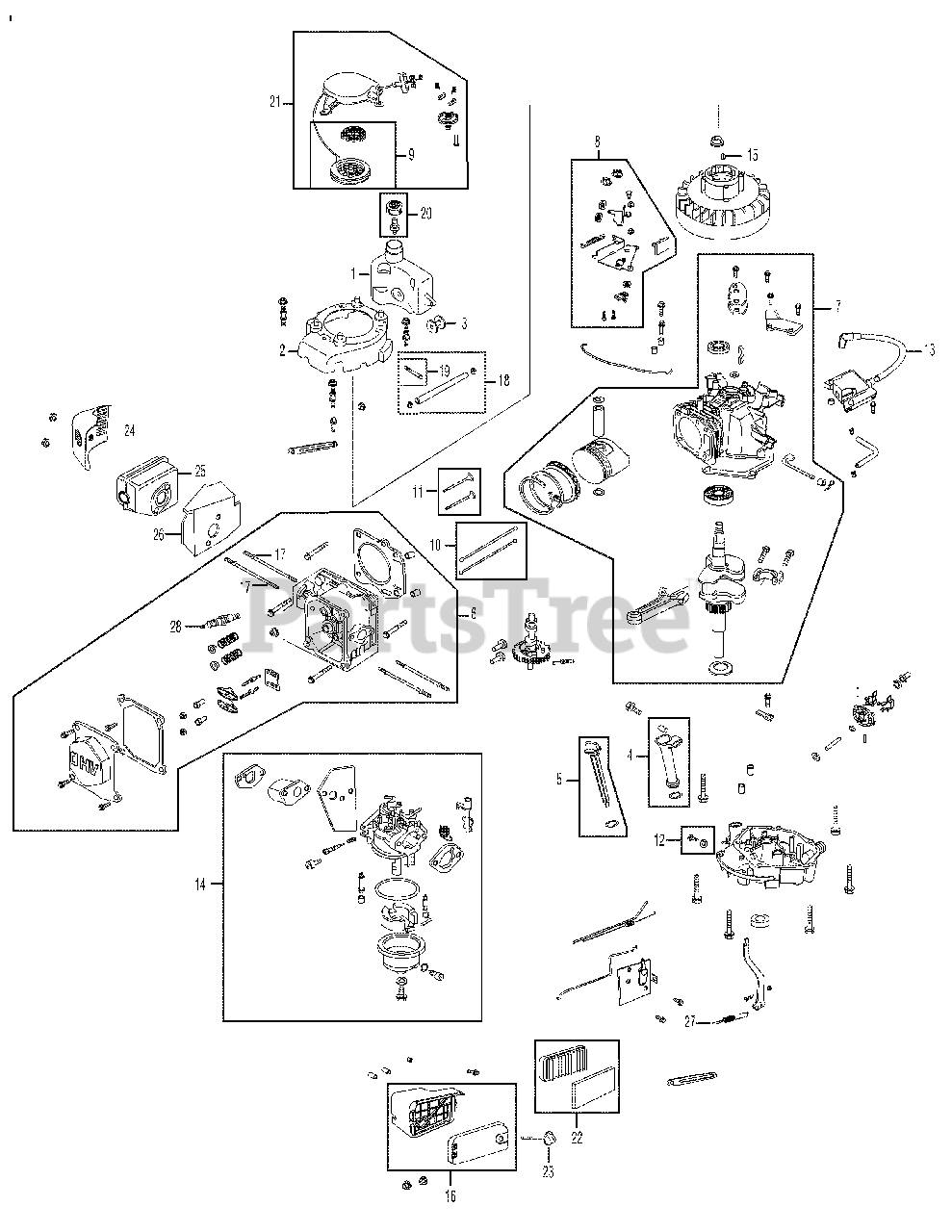

Engine Assembly 1P70 Parts Diagram

  • Title

1

MTD 951-10368

Fuel Tank
(Superseded to 951-12739)

$61.99

$

In Stock, only 3 left!

0

2

MTD 951-10369

Flywheel Shroud

$53.99

$

Usually ships in 3-6 days

0

3

MTD 951-10335

Rubber Fuel Tank Mouting Washer

$5.49

$

In Stock, only 1 left!

0

4

MTD 951-10334

Oil Filler Tube Assembly

$20.99

$

Usually ships in 3-6 days

0

5

MTD 951-10333

Dipstick Assembly

$16.99

$

Usually ships in 3-6 days

0

6

MTD 951-10413

Cylinder Head Complete
(Superseded to 951-10413B)

Note: (spark plug not included)

$174.99

$

Usually ships in 3-6 days

0

7

MTD 951-10414

Short Block Assembly
(Superseded to 951-12724)

$348.99

$

Usually ships in 3-6 days

0

8

MTD 951-10321

Stop Switch & Brake Assembly
(Superseded to 951-10321A)

$37.99

$

Usually ships in 3-6 days

0

9

MTD 951-10319

Recoil Spring & Pulley Assembly

$44.99

$

In Stock, Qty 5

0

10

MTD 951-10344

Push Rod Kit

$17.99

$

Usually ships in 3-6 days

0

11

MTD 951-10345

Valve Kit

$60.99

$

Usually ships in 3-6 days

0

12

MTD 951-10370

Oil Drain Plug & Washer Assembly

$8.49

$

Usually ships in 3-6 days

0

13

MTD 951-10366

Ignition Coil

$96.99

$

In Stock, only 4 left!

0

14

MTD 951-10310

Carburetor Assembly

$99.99

$

In Stock, only 3 left!

0

15

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 11

0

16

MTD 951-10412

Air Cleaner Housing Assembly Complete
(Superseded to 951-10412B)

$36.99

$

In Stock, Qty 20+

0

17

MTD 951-10342

Muffler Stud Assembly

$9.49

$

In Stock, only 2 left!

0

18

MTD 951-10364

Fuel Line Kit

Note: (Incl. Hoses, Clamps & Filter)

$26.99

$

In Stock, only 4 left!

0

19

MTD 951-10358

Fuel Filter
(Superseded to 951-12296A)

$9.49

$

In Stock, Qty 20+

0

20

MTD 951-10300

Fuel Cap Assembly

$10.99

$

In Stock, Qty 10

0

21

MTD 951-10299

Recoil Starter Assembly
(Superseded to 951-10299A)

$64.99

$

In Stock, Qty 17

0

22

MTD 951-10298

Air Cleaner Kit

$15.99

$

In Stock, Qty 20+

0

23

MTD 951-10297

Air Cleaner Thumb Screw

$5.49

$

In Stock, Qty 19

0

24

MTD 951-10411

Muffler Guard

$29.99

$

Usually ships in 3-6 days

0

25

MTD 951-10403

Muffler

$76.99

$

In Stock, only 1 left!

0

26

MTD 951-10402

Muffler Gasket/ Heat Shield

$17.99

$

Usually ships in 3-6 days

0

27

MTD 951-10387

Governor Return Spring

$6.99

$

In Stock, Qty 11

0

28

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

MTD 952Z1P70M0

Engine - Complete
(Superseded to 952Z5P70MU)

Note: not shown

$548.99

$

Usually ships in 3-6 days

0

MTD 951-10326

Carburetor Kit - Major
(Superseded to 951-12425A)

Note: not shown

$55.99

$

In Stock, only 1 left!

0

MTD 951-10323

Carburetor Kit - Minor

Note: not shown

$28.99

$

Usually ships in 3-6 days

0

MTD 951-10416

Gasket Kit - Complete
(Superseded to 951-10416A)

Note: not shown

$

$

Not available

MTD 951-10417

Gasket Kit - External
(Superseded to 951-10417A)

Note: not shown

$41.99

$

Usually ships in 3-6 days

0

MTD 951-10351

Spark Arrestor
(Superseded to 951-10351A)

Note: not shown

$51.99

$

Usually ships in 3-6 days

0
