11A-588Q795 - MTD Pro Walk-Behind Mower (2004)

Pro Walk-Behind Mower

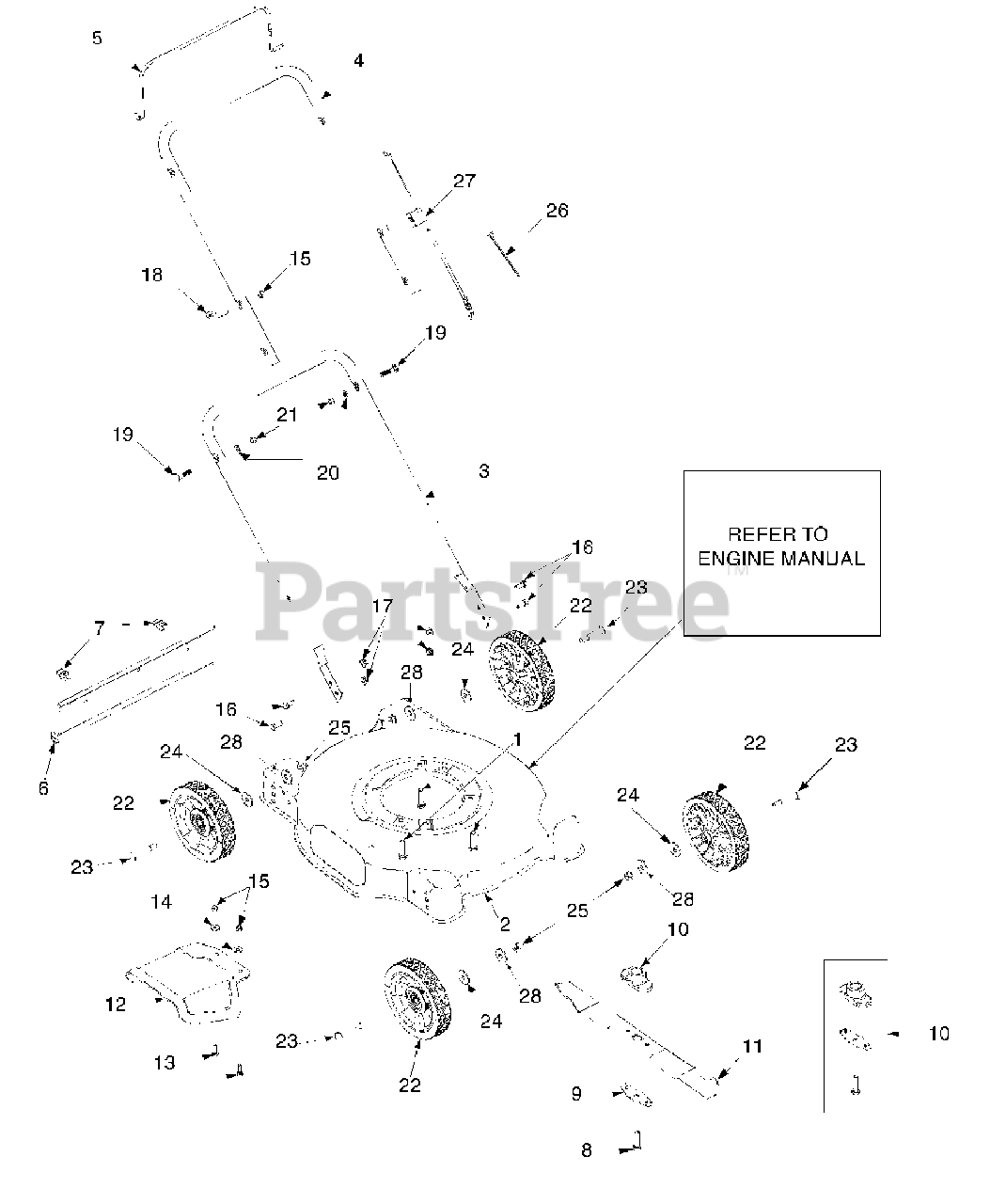

11A-588Q795 - MTD Pro Walk-Behind Mower (2004) > Parts Diagrams (1) > General Assembly

  • Title
749-1092A-0637

1

Upper Handle

Part# 749-1092A-0637

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $36.87

747-1161A-0637

2

Control Handle

Part# 747-1161A-0637

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.18

720-0279

6

Handle Knob

Part# 720-0279

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-1205

7

Rope Guide

Part# 710-1205

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

710-1174

8

Carriage Bolt 5/16-18 x 2"

Part# 710-1174

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.03

936-0451

9

Shoulder Washer.320 ID x.930 OD

Part# 936-0451

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

920-0284

10

Wing Nut

Part# 920-0284

OEM Warranty Repair Part for MTD

Not available

749-0928A-0637

11

Lower Handle

Part# 749-0928A-0637 (Superseded to 749-0928A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $31.60

946-1130

12

Control Cable 40"

Part# 946-1130

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.71

964-04007A

13

Grass Bag

Part# 964-04007A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $95.95

747-04080A-0637

14

Grass Catcher Frame

Part# 747-04080A-0637 (Superseded to 747-04080A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $42.00

914-0104

15

Hairpin Clip

Part# 914-0104

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

931-04134

16

Grass Bag Door

Part# 931-04134

OEM Warranty Repair Part for MTD

Not available

732-0700

18

Wire Rod

Part# 732-0700

OEM Warranty Repair Part for MTD

Not available

731-04998

19

Trail Shield

Part# 731-04998

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $22.34

950-04162

20

Spacer.375 O.D. x.50 I.D. x 1.02"

Part# 950-04162

OEM Warranty Repair Part for MTD

Not available

932-04090

21

Torsion Spring - RH

Part# 932-04090

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.34

732-04089A

21

Torsion Spring - LH

Part# 732-04089A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.60

987-02056

22

Handle Bracket Assembly - RH

Part# 987-02056

OEM Warranty Repair Part for MTD

Not available

987-02057

22

Handle Bracket Assembly - LH

Part# 987-02057

OEM Warranty Repair Part for MTD

Not available

734-04093

23

Rear Wheel: 12 x 2.125

Part# 734-04093

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $50.30

787-01103

24

Deck: 21"

Part# 787-01103

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $165.79

Variations

MTD/TROY-BILT RED (0638)

SERVICE KIT:DECK 2

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

SERVICE KIT:DECK 2

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

BLACK JACK (0691)

SERVICE KIT:DECK 2

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Not available

MASTERCRAFT GREEN (0709)

SERVICE KIT:DECK 2

Part# MASTERCRAFT GREEN (0709)

OEM Warranty Repair Part for MTD

Not available

710-0654A

25

Hex Washer Screw 3/8-16 x 1.0

Part# 710-0654A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

782-5003A

31

Rear Baffle - LH

Part# 782-5003A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $21.24

710-1017

32

Tap Screw 1/4-14 x.625.

Part# 710-1017

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.82

912-3005

33

Flange Lock Nut 3/8-16

Part# 912-3005

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.81

710-0703

34

Hex Carriage Screw 1/4-20

Part# 710-0703

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

987-02033

35

Handle Bracket Assembly - RH

Part# 987-02033

OEM Warranty Repair Part for MTD

Not available

987-02031

35

Handle Bracket Assembly - LH

Part# 987-02031

OEM Warranty Repair Part for MTD

Not available

710-1652

36

TT Screw 1/4-14 x.625

Part# 710-1652

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-0216

37

Hex Screw 3/8-16 x 0.75

Part# 710-0216

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.12

987-02335

39

Pivot Bar Assembly - RH

Part# 987-02335

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $19.03

987-02040A

39

Pivot Bar Assembly - LH

Part# 987-02040A (Superseded to 987-02336)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $16.84

938-0507B

40

Shoulder Screw

Part# 938-0507B

OEM Warranty Repair Part for MTD

Not available

732-0866

42

Rear Spring Lever

Part# 732-0866

OEM Warranty Repair Part for MTD

Not available

720-0312

43

Spring Lever Grip

Part# 720-0312

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.26

912-0397

45

Wing Nut

Part# 912-0397 (Superseded to 712-0397A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.95

987-02074A

46

Front Height Adjuster Assembly - RH

Part# 987-02074A (Superseded to 987-02074B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $28.44

987-02075A

46

Front Height Adjuster Assembly - LH

Part# 987-02075A (Superseded to 987-02075B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $28.44

734-2005B

47

Front Wheel: 8 x 2.125

Part# 734-2005B (Superseded to 753-08093)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $32.16

912-0431

49

Flange Lock Nut 3/8-16

Part# 912-0431

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.45

782-5002B

50

Front Baffle

Part# 782-5002B

OEM Warranty Repair Part for MTD

Not available

748-0376C

55

Blade Adapter

Part# 748-0376C (Superseded to 748-0376E)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.19

942-0741

56

21" Mulching Blade

Part# 942-0741 (Superseded to 942-0741A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $26.82

736-0524B

57

Blade Bell Support

Part# 736-0524B

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.87

710-1044

58

Hex Cap Screw 3/8-24 x 1.5

Part# 710-1044

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.79

787-01290A

59

Height Adjustment Plate

Part# 787-01290A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.48

720-0426

60

Knob

Part# 720-0426

OEM Warranty Repair Part for MTD

Not available

987-02077A

61

Pivot Bar Assembly - RH

Part# 987-02077A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.24

987-02076A

61

Pivot Bar Assembly - LH

Part# 987-02076A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.24

94832

62

Spring Lever

Part# 94832

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.61

747-0996

64

Chute Door Pivot Rod

Part# 747-0996

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $22.53

731-0981C

66

Hubcap

Part# 731-0981C

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.40

710-0599

67

Tap Screw 1/4-20 x.500

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

731-2626

68

Deluxe Bail Cover

Part# 731-2626

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.39

782-5004B

69

Rear Baffle - RH

Part# 782-5004B

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $17.52
