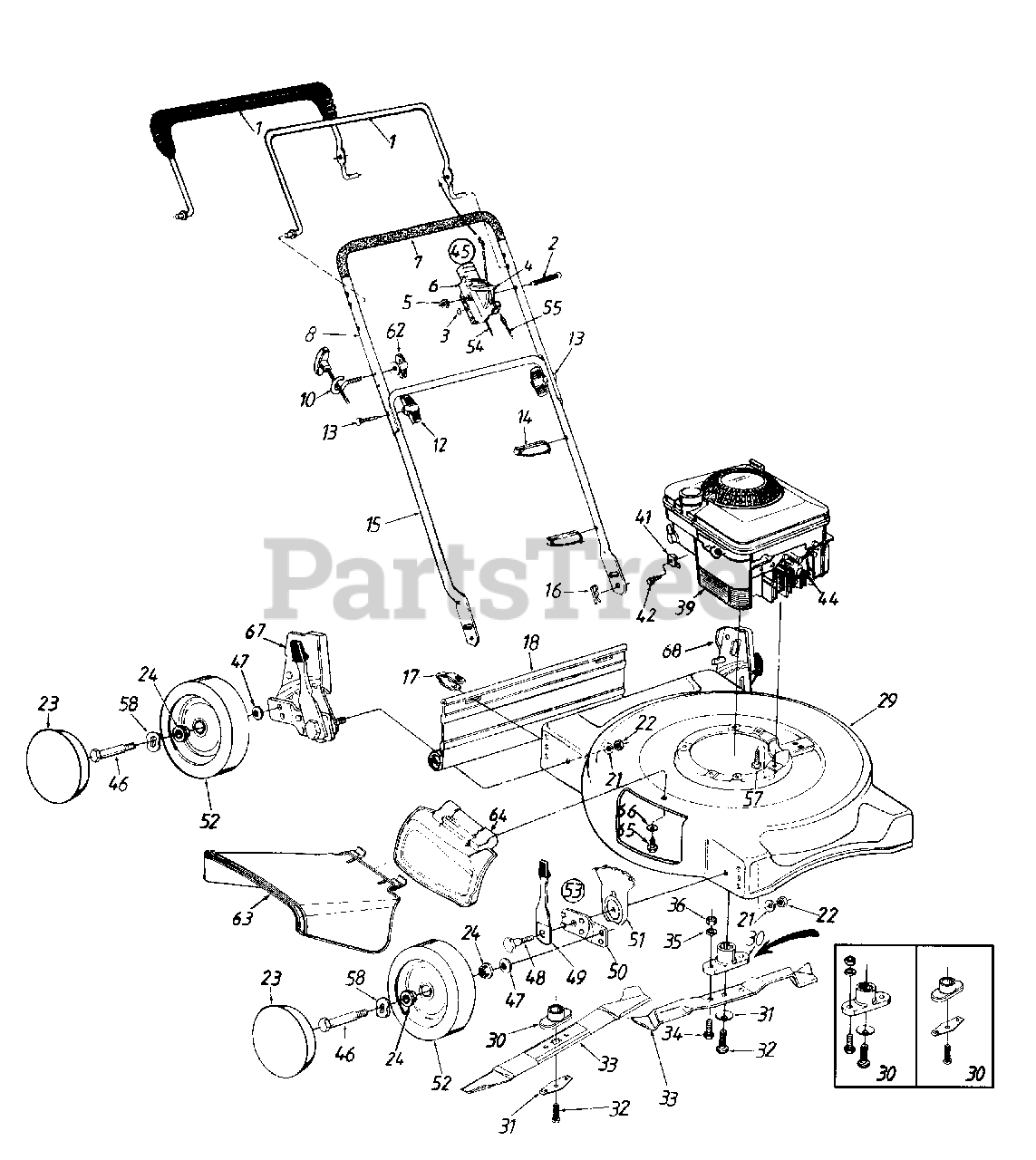

11A-735A000 - Yard Machines Walk-Behind Mower (1997) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 647-0004

Control Handle Ass'y. Deluxe
(Superseded to 747-0824B-0637)

$69.99

$

Usually ships in 3-6 days

0

1

MTD 747-0824

Control Handle (Std.)
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

2

MTD 710-0605

Oval C-Sunk Scr.

$4.99

$

In Stock, only 2 left!

0

3

MTD 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$7.49

$

Usually ships in 3-6 days

0

4

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.99

$

In Stock, only 1 left!

0

5

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, only 3 left!

0

6

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.99

$

In Stock, Qty 5

0

7

MTD 720-0295

Grip

$35.99

$

Usually ships in 3-6 days

0

8

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 710-1205

Rope Guide

$4.49

$

In Stock, Qty 10

0

12

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 6

0

13

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" L

$7.99

$

In Stock, Qty 16

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

$35.99

$

In Stock, only 1 left!

0

16

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 16

0

17

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

MTD 731-0872A

Rear Flap
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 5

0

21

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

23

N/A

Hub Cap

$

$

Not available

24

MTD 741-0484

Ball Bearing
(Superseded to 941-0484)

$7.99

$

Usually ships in 3-6 days

0

29

MTD 682-0025

20" Deck Ass'y.
(Superseded to 682-0139)

$

$

Not available

30

MTD 753-0484

Blade Adapter Kit

Note: Blade secured with 3 bolts

$24.99

$

In Stock, only 4 left!

0

30

MTD 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

Note: Blade secured with 1 bolt

$17.99

$

In Stock, Qty 8

0

31

MTD 736-0452

Bell-Wash. .39" I.D.

Note: Blade secured with 1 bolt

$4.99

$

In Stock, only 4 left!

0

31

MTD 736-0524A

Support, Blade Bell
(Superseded to 736-0524B-1)

Note: Blade secured with 3 bolts

$6.49

$

In Stock, Qty 20+

0

32

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 742-0720

20" Mulching Blade
(Superseded to 742-0720-0637)

Note: Blade secured with 1 bolt

$30.99

$

Usually ships in 3-6 days

0

33

MTD 742-0740

20" Mulching Blade
(Superseded to 942-0740)

Note: Blade secured with 3 bolts

$24.99

$

In Stock, only 1 left!

0

34

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$5.49

$

Usually ships in 3-6 days

0

35

MTD 736-0169

L-Wash. 3/8" I.D.

Note: Blade secured with 1 bolt

$3.99

$

In Stock, Qty 20+

0

36

MTD 712-0241

Hex Nut 3/8-24 Thd.

Note: Blade secured with 1 bolt

$4.99

$

In Stock, Qty 10

0

39

N/A

Engine, Tecumseh

$

$

Not available

41

MTD 7510007755

Cable Clamp

Note: For Model 733 & 735

$

$

Not available

42

MTD 710-0871

Sems Scr. #10-32 x .38" Lg.

Note: For Model 733 & 735

$

$

Not available

44

MTD 735-0639

Spark Plug Boot

$

$

Not available

45

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl Ref. 2-6)

$38.99

$

In Stock, only 4 left!

0

46

MTD 738-0102

Axle Bolt

$10.99

$

In Stock, Qty 5

0

47

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.99

$

In Stock, Qty 20+

0

48

MTD 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.99

$

In Stock, Qty 14

0

49

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$11.99

$

In Stock, Qty 6

0

50

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$15.99

$

In Stock, only 2 left!

0

$15.99

$

In Stock, only 2 left!

0

51

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

Usually ships in 3-6 days

0

52

MTD 734-1781

Wheels w/o Bearings (Gray - no Hub Cap)Bar Tread
(Superseded to 734-1855)

$34.99

$

In Stock, only 1 left!

0

52

MTD 634-0020

Wheels w/o Bearings (Gray) Bar Tread

$42.99

$

In Stock, Qty 8

0

52

MTD 734-1821

Wheels w/Ball Bearings (Gray) "S" Wave Tread
(Superseded to 753-08093)

$48.99

$

In Stock, only 4 left!

0

52

MTD 741-0484

Ball Bearing
(Superseded to 941-0484)

Note: Not Shown

$7.99

$

Usually ships in 3-6 days

0

53

MTD 14578

Height Adj. Ass'y. Comp.-R.F.
(Superseded to 753-06761)

$69.99

$

In Stock, Qty 7

0

53

MTD 14579

Height Adj. Ass'y. Comp.-L.F.
(Superseded to 753-06761)

$69.99

$

In Stock, Qty 7

0

54

MTD 746-0844

Throttle Cable-39"

Note: For Model 733 & 735

$

$

Not available

55

MTD 746-0552

Control Cable-49"
(Superseded to 946-0552)

Note: For Model 733 & 735

$43.99

$

Usually ships in 3-6 days

0

57

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg

$4.99

$

In Stock, Qty 20+

0

58

MTD 736-0504

Wave Washer .51" I.D. (Used w/Ball Bearings)
(Superseded to 936-0504)

$4.99

$

In Stock, only 2 left!

0

62

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.99

$

In Stock, Qty 13

0

63

MTD 731-1409

Chute Deflector
(Superseded to 731-1409B)

$29.99

$

In Stock, Qty 5

0

64

MTD 682-7002

Mulching Plug

$

$

Not available

65

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

66

MTD 736-0270

Bell-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

67

MTD 682-3024

Height Adj. Ass'y Comp-R.R.
(Superseded to 987-02106A)

Variations

MTD 682-3024-0637

Handle Bracket Assembly, RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

68

MTD 682-3025

Height Adj. Ass'y Comp-L.R.
(Superseded to 987-02107A)

Variations

MTD 682-3025-0637

Handle and Height Bracket Assembly - POWDER BLACK (0637)

$45.99

$

In Stock, only 3 left!

0

$45.99

$

In Stock, only 3 left!

0

MTD 190-110-000

Grass Catcher Complete
(Superseded to OEM-190-110)

Note: Not Shown

$120.99

$

In Stock, only 1 left!

0
