11A-A1S5345 - Yard Machines 21" Walk-Behind Mower (2019) Deck Hardware Parts Diagram

21" Walk-Behind Mower

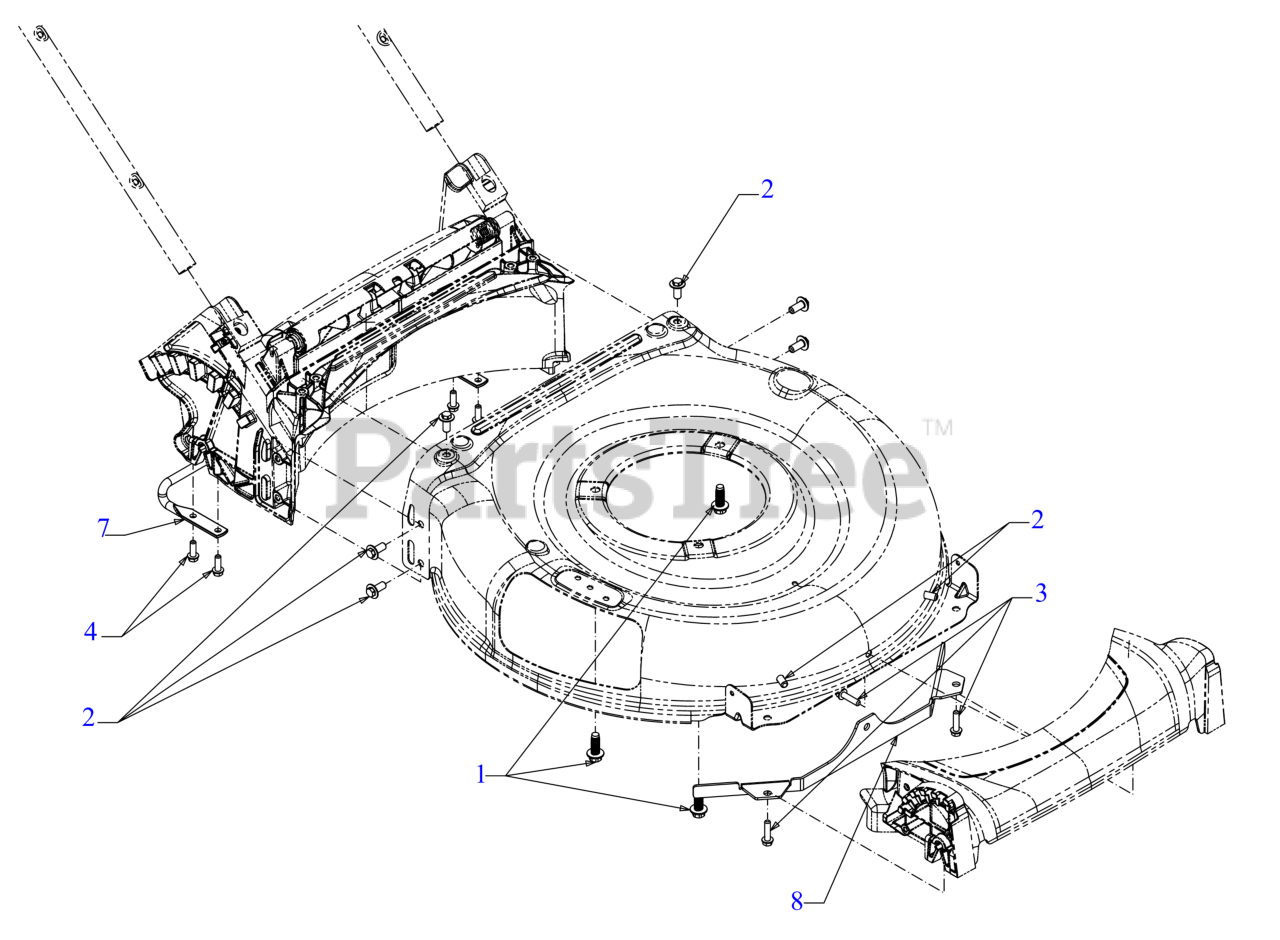

Deck Hardware Parts Diagram

  • Title

1

MTD 710-04683C

SCREW 3/8-16 x 1

$6.99

$

In Stock, Qty 20+

0

2

MTD 710-04995A

SCREW 5/16-14 x .750

$4.49

$

In Stock, Qty 17

0

3

MTD 710-05109

SCREW 5/16-14 x 1

$3.99

$

In Stock, only 2 left!

0

4

MTD 710-0895

SCREW 1/4-15 x .750

$6.99

$

In Stock, Qty 20+

0

7

MTD 747-05319

TRAILSHIELD ROD

$25.99

$

Usually ships in 3-6 days

0

8

MTD 787-03149

FRONT DECK BRACKET

Note: (Choose color when ordering)

Variations

787-03149-0638

MTD 787-03149-0638

BRACKET-FRONT DECK - MTD/TROY-BILT RED (0638)

$30.99

$

Usually ships in 3-6 days

0

787-03149-0691

MTD 787-03149-0691

Front Deck Bracket - BLACK JACK (0691)

$37.99

$

Usually ships in 3-6 days

0

787-03149-4021

MTD 787-03149-4021

BRACKET-FRONT DECK - CUB YELLOW 2 (4021)

$34.99

$

Usually ships in 3-6 days

0

787-03149-4044

MTD 787-03149-4044

BRACKET-FRONT DECK - CRAFTSMAN RED (4044)

$34.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0
