11A-A1S5345 - Yard Machines 21" Walk-Behind Mower (2020) Deck Assembly Parts Diagram

21" Walk-Behind Mower

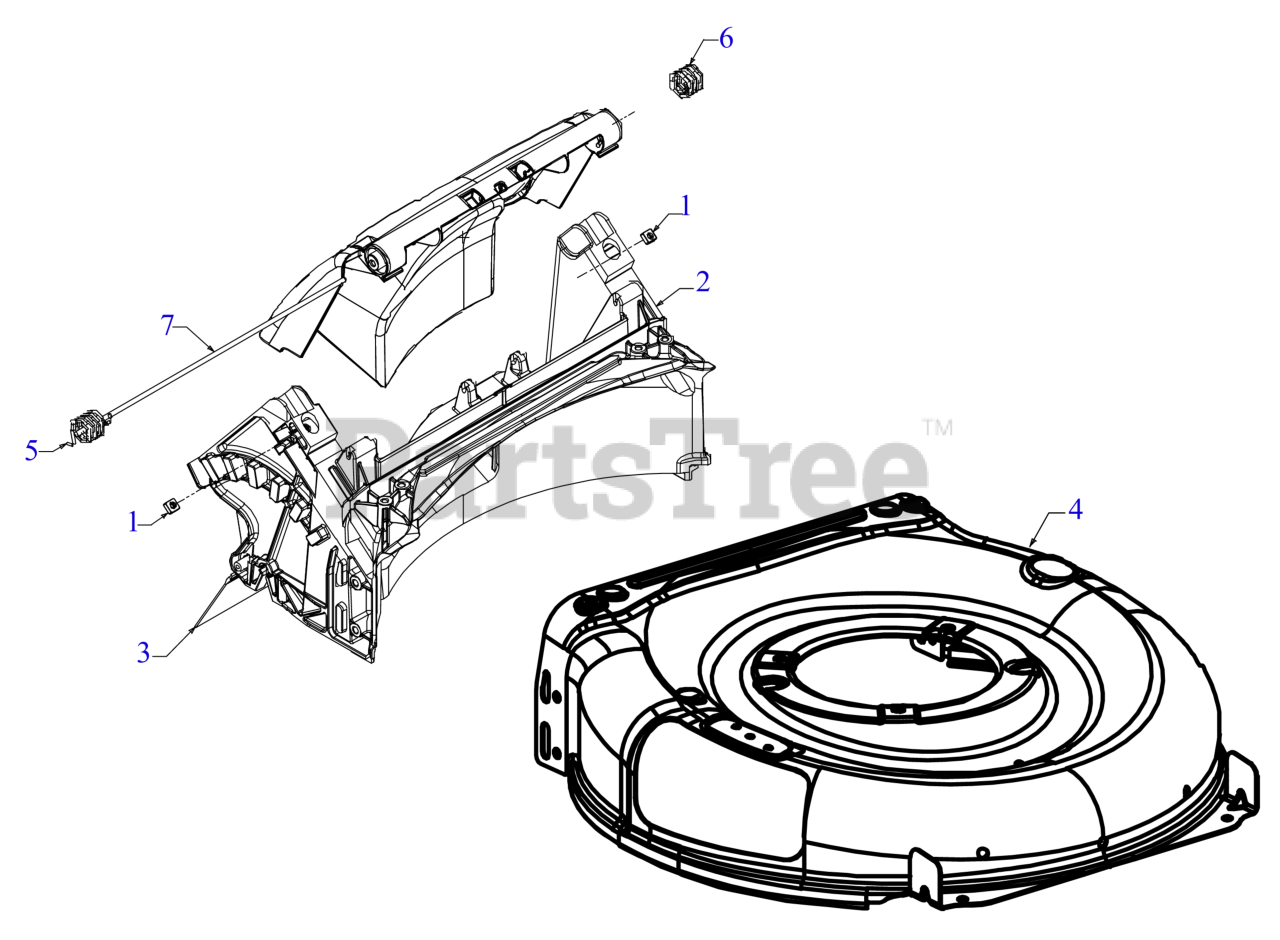

Deck Assembly Parts Diagram

  • Title

1

MTD 712-04222

SQUARE NUT 1/4-20

$5.49

$

In Stock, Qty 20+

0

2

MTD 631-04567A

REAR DOOR ASSEMBLY

$49.99

$

Usually ships in 3-6 days

0

3

MTD 731-07203

TRAILSHIELD

$9.99

$

In Stock, Qty 20+

0

4

MTD 787-01871B

21" DECK (3N1)

Note: (Choose color when ordering)

Variations

MTD 787-01871B-0638

DECK-21" 3 IN 1 SP - MTD/TROY-BILT RED (0638)

$118.99

$

Usually ships in 3-6 days

0

MTD 787-01871B-0665

DECK-21" 3 IN 1 SP - YARDMAN GREEN (0665)

$118.99

$

Usually ships in 3-6 days

0

MTD 787-01871B-0691

DECK-21" 3 IN 1 SP - BLACK JACK (0691)

$118.99

$

Usually ships in 3-6 days

0

MTD 787-01871B-0709

DECK-21" 3 IN 1 SP - MASTERCRAFT GREEN (0709)

$118.99

$

Usually ships in 3-6 days

0

MTD 787-01871B-4021

DECK-21" 3 IN 1 SP - CUB YELLOW 2 (4021)

$102.99

$

Usually ships in 3-6 days

0

MTD 787-01871B-4043

DECK-21" 3 IN 1 SP - CRAFTSMAN METALLIC GRAY (4043)

$118.99

$

Usually ships in 3-6 days

0

MTD 787-01871B-4044

DECK-21" 3 IN 1 SP - CRAFTSMAN RED (4044)

$118.99

$

In Stock, only 1 left!

0

$95.99

$

Usually ships in 3-6 days

0

5

MTD 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$4.99

$

Usually ships in 3-6 days

0

6

MTD 732-05062A

TORSION SPRING (LH)

$4.99

$

Usually ships in 3-6 days

0

7

MTD 747-05183

REAR DOOR PIVOT ROD

$3.99

$

In Stock, only 1 left!

0
