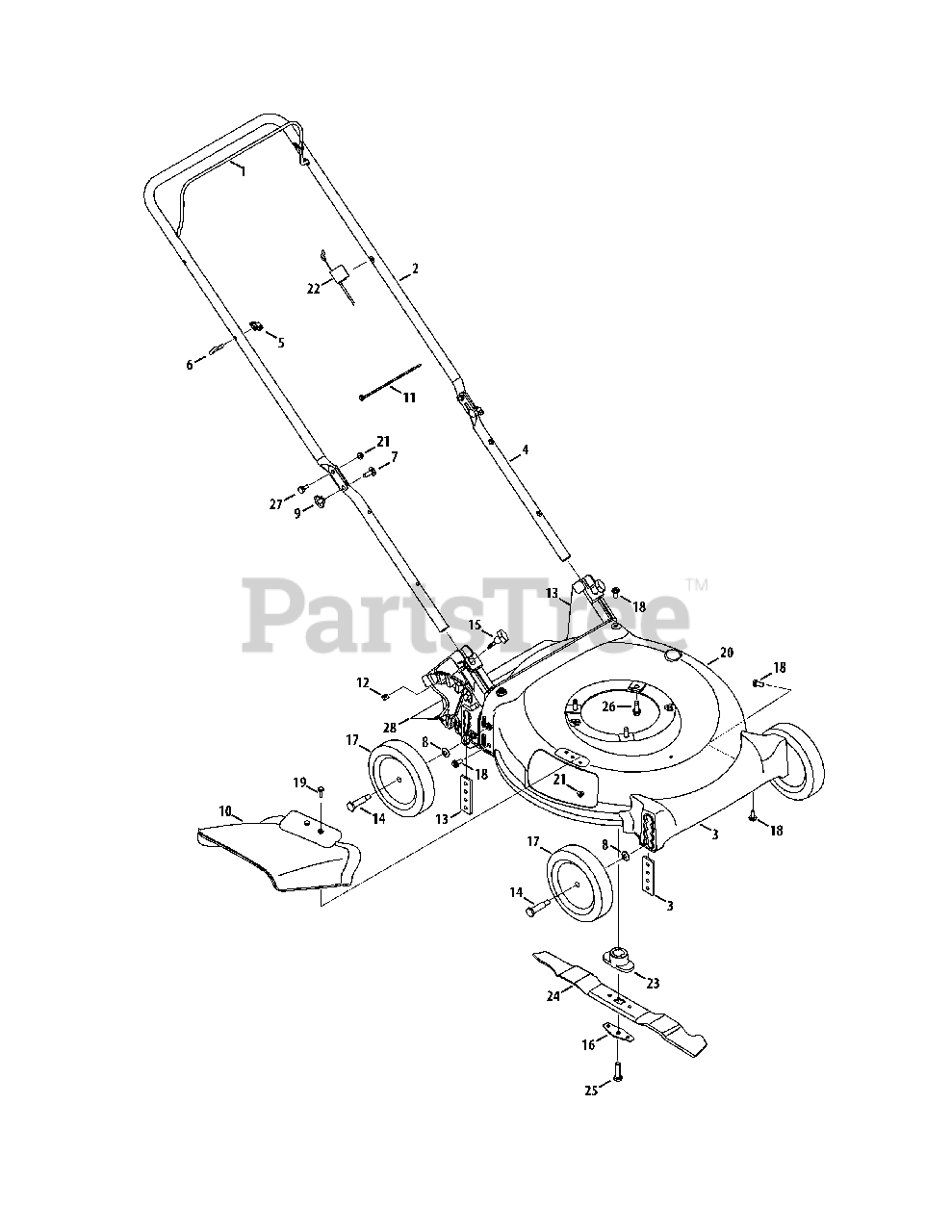

11A-A44E029 - Yard Machines Walk-Behind Mower (2011) (Home Depot) > Parts Diagrams (2) > General Assembly 11A-A44

  • Title
747-05184

1

Blade Control

Part# 747-05184 (Superseded to 747-05184D)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.39

749-04680-0637

2

Upper Handle

Part# 749-04680-0637 (Superseded to 749-04680C-0637)

OEM Warranty Repair Part for MTD

Not available

631-04516

3

Front Cover Assembly

Part# 631-04516 (Superseded to 631-04516A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $24.61

749-04608A-0637

4

Lower Handle

Part# 749-04608A-0637

OEM Warranty Repair Part for MTD

Not available

720-0279

5

Wing Nut

Part# 720-0279

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-1205

6

Rope Guide

Part# 710-1205

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

710-04998

7

Carriage Screw ,5/16-18

Part# 710-04998

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.92

736-0105

8

Washer, .401 x .870 x .060

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

720-04122

9

Wing Knob

Part# 720-04122

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.69

731-07877

10

Side Chute

Part# 731-07877

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.32

725-0157

11

Cable Tie

Part# 725-0157

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.74

712-04222

12

Nut, Sq., 1/4-20

Part# 712-04222

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.82

631-04557

13

Rear Baffle, Generic

Part# 631-04557

OEM Warranty Repair Part for MTD

Not available

631-04545

13

Rear Baffle, Home Depot

Part# 631-04545 (Superseded to 631-04545A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $31.07

931-04515

13

Rear Baffle, Lowes

Part# 931-04515

OEM Warranty Repair Part for MTD

Not available

738-04466

14

Shoulder Screw

Part# 738-04466

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.97

720-04123

15

Wing Nut

Part# 720-04123 (Superseded to 720-05066A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0524B

16

Blade Bell Support

Part# 736-0524B

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.87

734-04063

17

Wheel, 7" Star-Dia., Oys. Gray

Part# 734-04063 (Superseded to 734-04063B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.74

710-04995

18

Screw, 5/16-14 x .750

Part# 710-04995 (Superseded to 710-04995A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

710-3015

19

Screw, 1/4-20 x .750

Part# 710-3015

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.90

787-01869-0638

20

Deck , 21" - Red

Part# 787-01869-0638 (Superseded to 787-01869B-0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $123.07

787-01869-0709

20

Deck , 21" - Green

Part# 787-01869-0709 (Superseded to 787-01869B-0709)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $123.07

712-04064

21

Nut, Flange Lock, 1/4-20

Part# 712-04064

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.88

946-0957

22

Control Cable

Part# 946-0957

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.95

748-0376E

23

Blade Adapter

Part# 748-0376E

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.19

942-0741A

24

Mulching Blade

Part# 942-0741A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $26.82

710-1044

25

Screw , 3/8-24 x 1.50

Part# 710-1044

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.79

710-0654A

26

TT Sems Screw, 3/8-16 x 1.0

Part# 710-0654A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

738-04419A

27

Sldr. Screw, .375 x .126 x 1/4-20

Part# 738-04419A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

731-07203

28

Trail shield

Part# 731-07203

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.55
