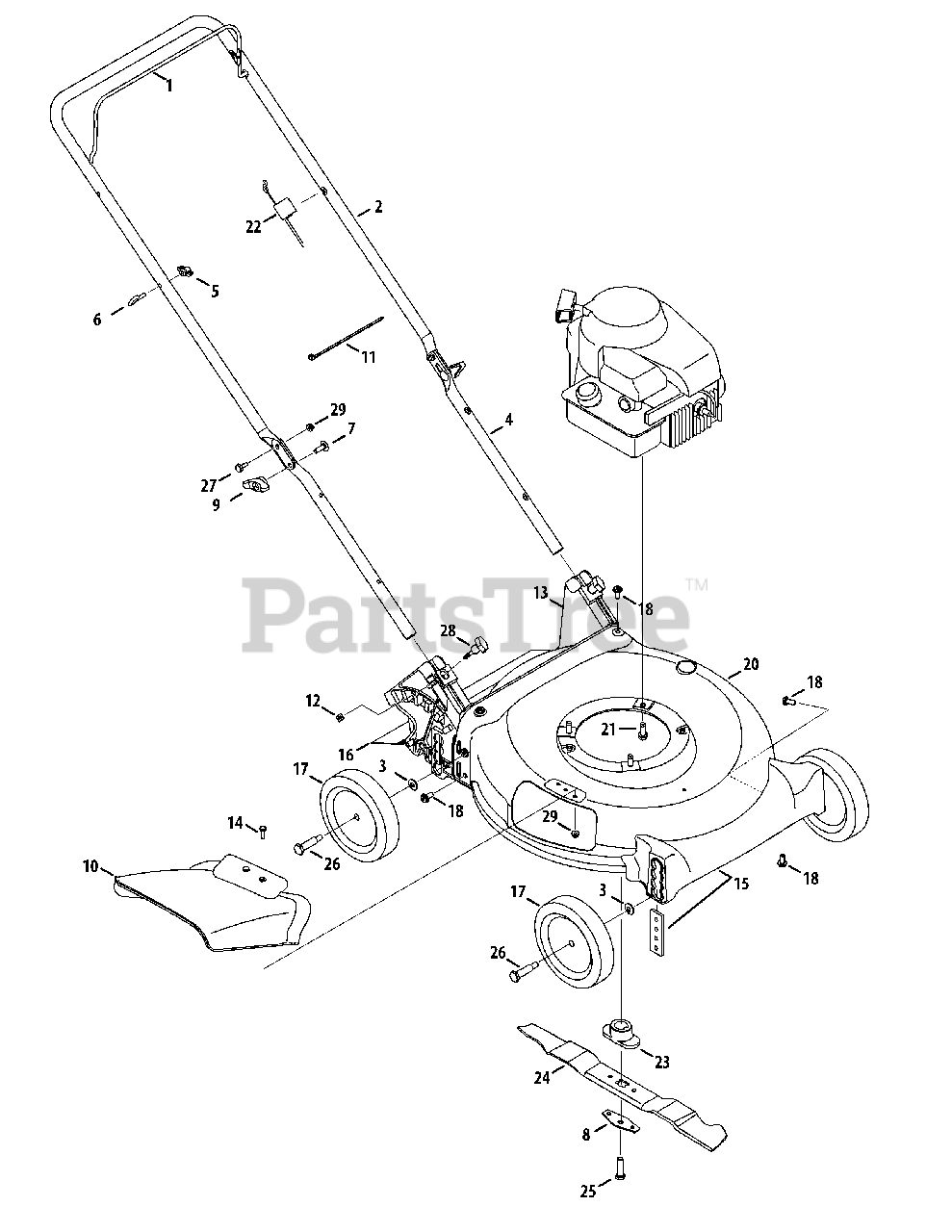

11A-A44E897 - Columbia Walk-Behind Mower (2011) Model Series A4X Parts Diagram

Walk-Behind Mower

Model Series A4X Parts Diagram

  • Title

1

White Outdoor 747-05184A

Blade Control Handle - Black
(Superseded to 747-05184D)

$6.99

$

In Stock, Qty 20+

0

2

White Outdoor 749-04680-0637

Upper Handle - Black (non adjustable)
(Superseded to 749-05084B-0637)

$31.99

$

In Stock, Qty 6

0

3

White Outdoor 736-0105

Cupped Washer

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.49

$

In Stock, Qty 20+

0

5

White Outdoor 720-0279

Knob 1/4-20

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 15

0

7

White Outdoor 710-04998

Carriage Bolt 5/16-18

$5.49

$

In Stock, Qty 20+

0

8

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

9

White Outdoor 720-04124

Wing Knob 5/16-18 Red

$4.99

$

In Stock, Qty 20+

0

9

White Outdoor 720-04122

Wing Knob 5/16-18 Black

$6.49

$

In Stock, Qty 20+

0

10

White Outdoor 731-07877

Chute Deflector

$18.99

$

Usually ships in 3-6 days

0

11

White Outdoor 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

12

White Outdoor 712-04222

Sq. Nut 1/4-20

$5.49

$

In Stock, Qty 20+

0

13

White Outdoor 631-04594A

Rear Baffle Ass'y

$44.99

$

Usually ships in 3-6 days

0

14

White Outdoor 710-3015

Hex. Hd. Cap Screw. 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 631-04516A

Front Axle Cover

$32.99

$

In Stock, only 3 left!

0

16

White Outdoor 731-07203

Trailing Shield 4.54 x 17.37

$9.99

$

In Stock, Qty 20+

0

17

White Outdoor 734-04063A

Wheel Ass'y 7 x 1.5 Diamond Star
(Superseded to 734-04063B)

$16.99

$

In Stock, Qty 20+

0

18

White Outdoor 710-04995

Hex Hd. Cap Screw. 5/16-14 x .75
(Superseded to 710-04995A)

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 787-01869

21" Deck Ass’y
(Superseded to 787-01869A)

Variations

White Outdoor 787-01869-0638

Mower Deck, 21" 3-in-1 - MTD/TROY-BILT RED (0638)

$133.99

$

In Stock, only 1 left!

0

White Outdoor 787-01869-0709

DECK-21" 3 IN 1 - MASTERCRAFT GREEN (0709)

$133.99

$

Usually ships in 3-6 days

0

White Outdoor 787-01869-4044

USE 787-01869A-4044 DECK-21" - CRAFTSMAN RED (4044)

$133.99

$

Usually ships in 3-6 days

0

White Outdoor 787-01869-0691

DECK-21" 3 IN 1 - BLACK JACK (0691)

$133.99

$

Usually ships in 3-6 days

0

White Outdoor 787-01869-4043

DECK-21" 3 IN 1 - CRAFTSMAN METALLIC GRAY (4043)

$133.99

$

Usually ships in 3-6 days

0

$95.99

$

Usually ships in 3-6 days

0

21

White Outdoor 710-0654A

Hex Wash HD Tap Screw 3/8-16 x .88

$3.99

$

In Stock, only 4 left!

0

22

White Outdoor 946-0957

Control Cable, 158 cc B&S

$16.99

$

In Stock, Qty 20+

0

23

White Outdoor 748-0376E

Blade Adapter

$19.99

$

In Stock, Qty 20+

0

24

White Outdoor 942-0741A

21" Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg. (Gr 8)

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 738-04466

Shoulder Screw .498 x 1.6

$3.99

$

In Stock, Qty 7

0

27

White Outdoor 738-04419A

Shoulder Screw .375 x .126 x 1/4-20

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 720-04123A

Knob 1/4-20 x 1.725 Black
(Superseded to 720-05066A)

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 720-04127A

Knob 1/4-20 x 1.725 Red
(Superseded to 720-05067A)

$5.49

$

In Stock, Qty 20+

0

29

White Outdoor 712-04064

Flanged Lock Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0
