11A-B16M029 - Yard Machines Walk-Behind Mower (2010) (Home Depot) General Assembly 11A-B16 Parts Diagram

Walk-Behind Mower

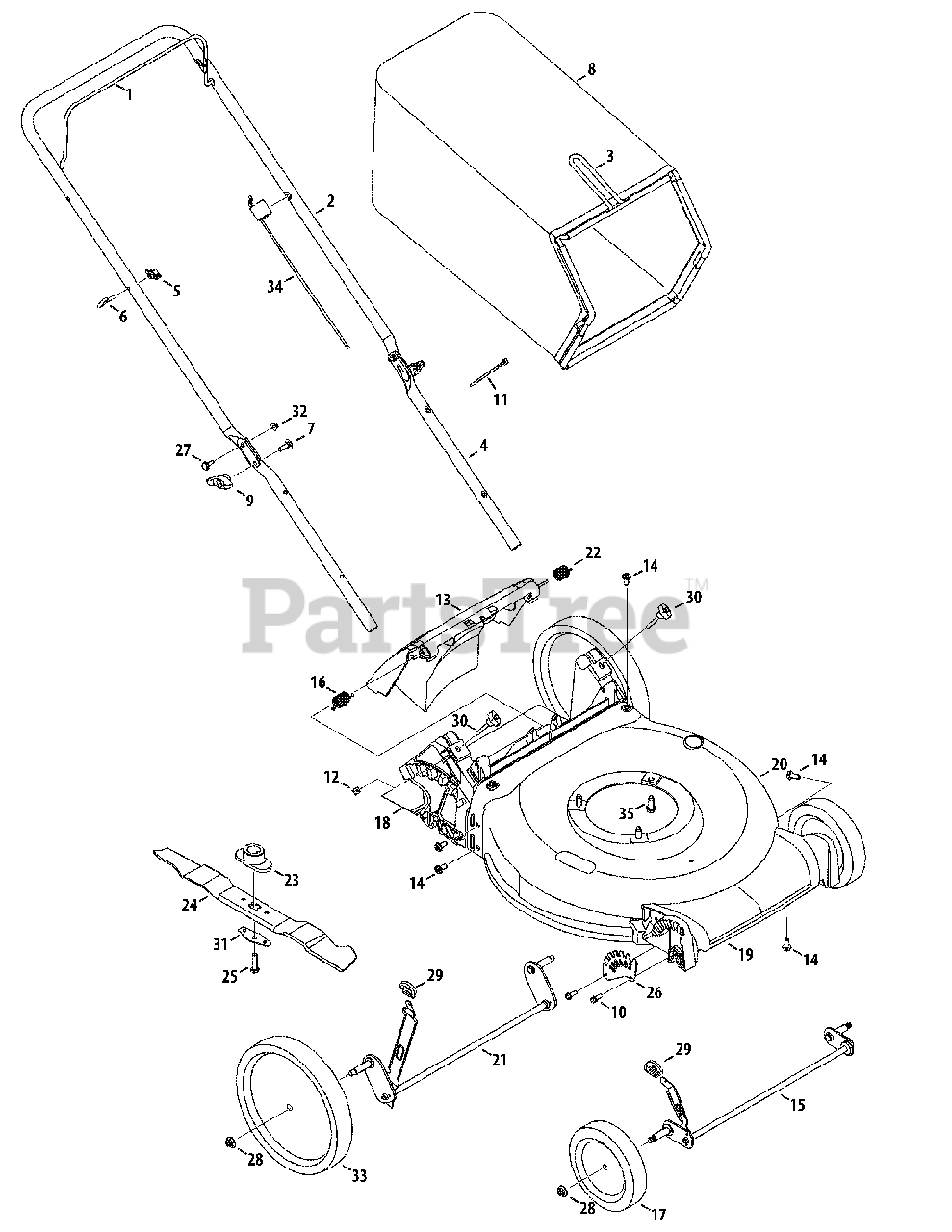

General Assembly 11A-B16 Parts Diagram

  • Title

1

MTD 747-05184

Blade Control
(Superseded to 747-05184D)

$6.99

$

In Stock, Qty 20+

0

2

MTD 749-04680-0637

Upper Handle
(Superseded to 749-05084B-0637)

$31.99

$

In Stock, Qty 9

0

3

MTD 747-05226-0637

Grass Catcher Frame
(Superseded to 647-04271-0637)

$38.99

$

In Stock, Qty 20+

0

4

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.49

$

In Stock, Qty 20+

0

5

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

7

MTD 710-04998

Carriage Screw ,5/16-18

$5.49

$

In Stock, Qty 20+

0

8

MTD 764-04077A

Grass Bag
(Superseded to 764-04077D)

$42.99

$

In Stock, Qty 16

0

9

MTD 720-04122

Wing Knob

$6.49

$

In Stock, Qty 20+

0

10

MTD 710-0895

Screw, 1/4-15 x .750

$5.99

$

In Stock, Qty 20+

0

11

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

12

MTD 712-04222

Nut, Sq., 1/4-20

$5.49

$

In Stock, Qty 20+

0

13

MTD 631-04369

Rear Discharge Door Assembly
(Superseded to 631-08159)

$51.99

$

In Stock, Qty 7

0

14

MTD 710-04995

Screw, 5/16-14 x .750
(Superseded to 710-04995A)

$3.99

$

In Stock, Qty 20+

0

15

MTD 911-04148A

Front Axle Assembly
(Superseded to 753-06702)

$29.99

$

In Stock, only 1 left!

0

16

MTD 732-04673

Torsion Spring - RH
(Superseded to 732-05061B)

$4.99

$

Usually ships in 3-6 days

0

17

MTD 734-1988

Front Wheel

$18.99

$

In Stock, Qty 10

0

18

MTD 731-07203

Trail Shield

$9.99

$

In Stock, Qty 20+

0

19

MTD 731-07078

Front Cover
(Superseded to 753-08680)

$47.99

$

In Stock, Qty 7

0

20

MTD 787-01781

Deck - 21"
(Superseded to 787-01781A)

Variations

MTD 787-01781-0638

DECK-21" 2 IN 1 PU - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01781-0709

DECK-21" 2 IN 1 PU - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

21

MTD 911-04144

Rear Axle Assembly
(Superseded to 911-04144B)

$34.99

$

In Stock, Qty 20+

0

22

MTD 732-04674

Torsion Spring - LH
(Superseded to 732-04674A)

$3.99

$

In Stock, only 2 left!

0

23

MTD 748-04096

Blade Adapter

$21.99

$

In Stock, Qty 20+

0

24

MTD 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1044

Screw , 3/8-24 x 1.50

$3.99

$

In Stock, Qty 20+

0

26

MTD 787-01818-0637

Front Height Adjuster Plate
(Superseded to 787-01818A-0637)

$9.99

$

In Stock, Qty 8

0

27

MTD 738-04419A

Sldr. Screw, .375 x .126 x 1/4-20

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-04217

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

29

MTD 720-04130

Adjustment Lever Knob

$4.99

$

In Stock, Qty 5

0

30

MTD 720-04123

Wing Nut
(Superseded to 720-05066A)

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

32

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

33

MTD 634-04625

Rear Wheel

$40.99

$

In Stock, Qty 10

0

34

MTD 946-04661

Control Cable
(Superseded to 946-04661A)

$12.99

$

In Stock, Qty 20+

0

35

MTD 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$3.99

$

In Stock, only 4 left!

0
