11A-B1BE729 - Yard Machines Walk-Behind Mower (2016)

Walk-Behind Mower

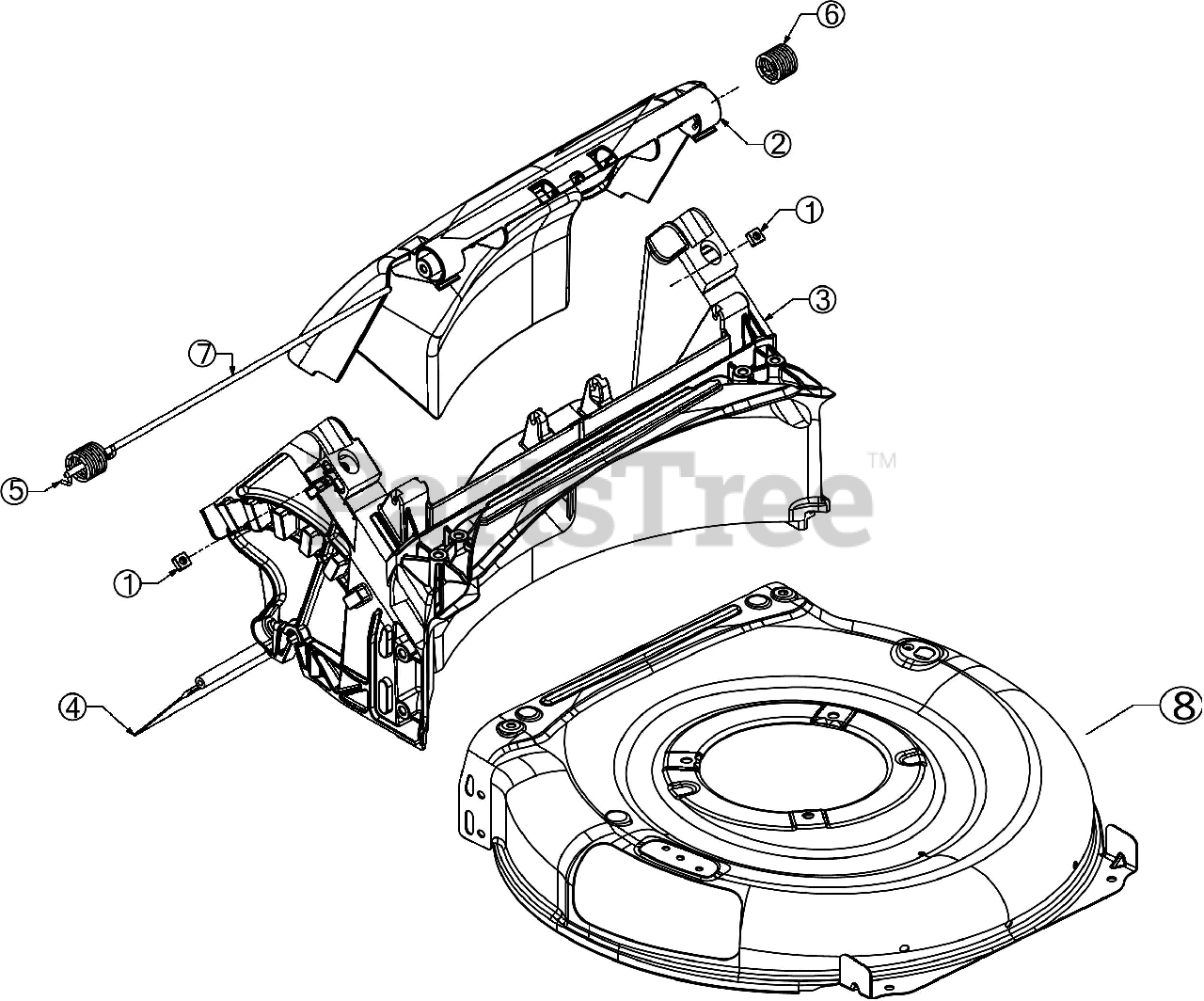

11A-B1BE729 - Yard Machines Walk-Behind Mower (2016) > Parts Diagrams (16) > Rear Baffle & Deck Assembly

  • Title
712-04222

1

SQUARE NUT 1/4-20

Part# 712-04222

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.82

N/A

2

N/A

Part# N/A

Note: (Not Serviceable; order part number 931-04369A)

Not available

631-04369A

3

DOOR ASSEMBLY

Part# 631-04369A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $48.23

731-07203

4

TRAILSHIELD

Part# 731-07203

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.55

732-05061A

5

TORSION SPRING (RH)

Part# 732-05061A

OEM Warranty Repair Part for MTD

Not available

732-05062A

6

TORSION SPRING (LH)

Part# 732-05062A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.73

747-05183

7

REAR DOOR PIVOT ROD

Part# 747-05183

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.81

787-01870B-0638

8

21" DECK (2N1)

Part# 787-01870B-0638

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $89.63
