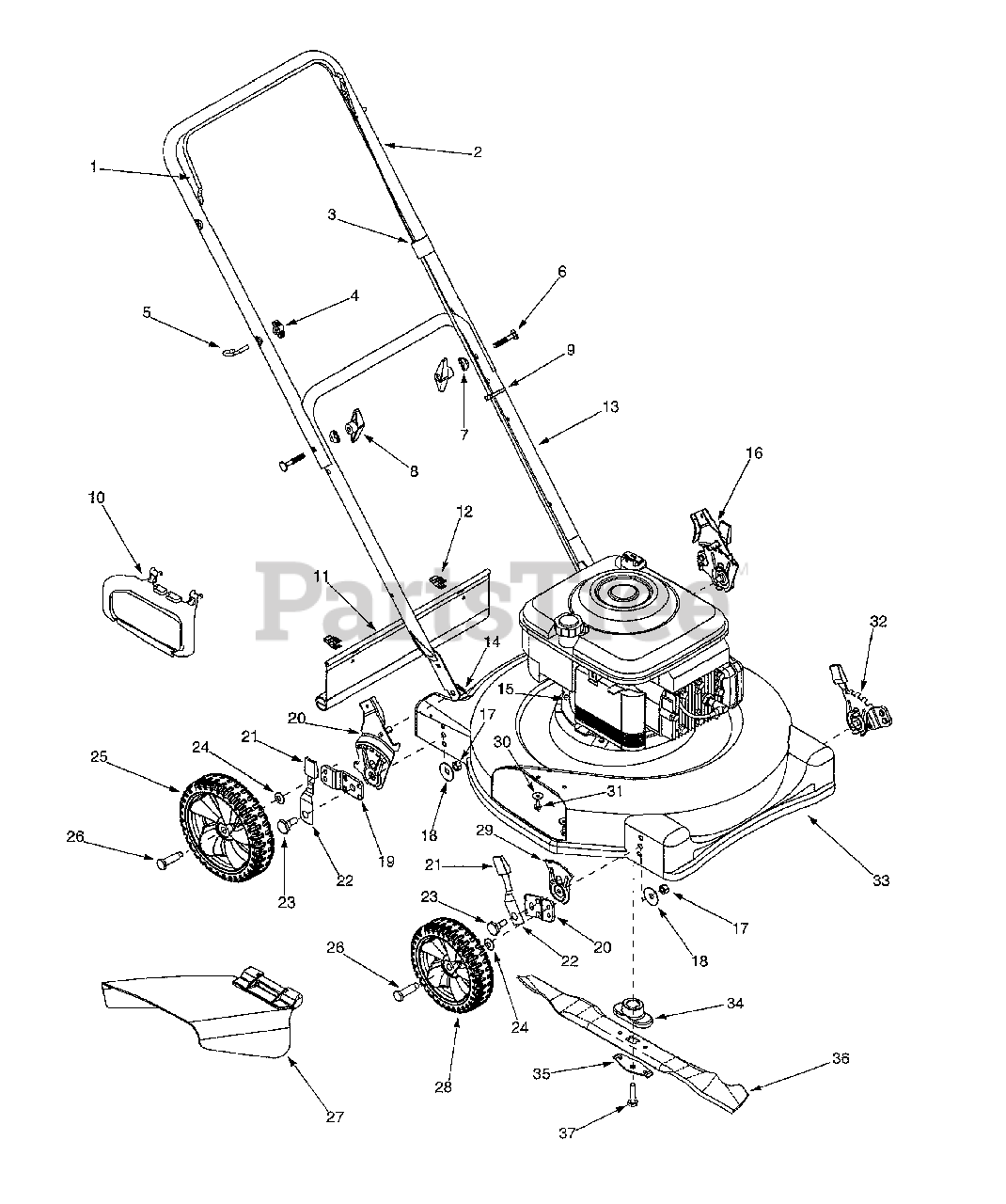

11Z-084C062 - Yard Machines Walk-Behind Mower (2001) (Lowes) > Parts Diagrams (2) > General Assembly

  • Title
747-1161A

1

Control Handle

Part# 747-1161A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.18

Variations

POWDER BLACK (0637)

Operator Bail, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.18

749-1092A

2

Upper Handle

Part# 749-1092A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.87

Variations

POWDER BLACK (0637)

Upper Handle, Black

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $36.87

MTD/TROY-BILT RED (0638)

HANDLE-UPPER

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.87

746-0957

3

Control Cable 37.25"

Part# 746-0957 (Superseded to 946-0957)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.95

720-0279

4

Handle Knob

Part# 720-0279

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-1205

5

Eye Bolt

Part# 710-1205

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.81

710-1174

6

Carriage Bolt

Part# 710-1174

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.03

736-0451

7

Shoulder Washer

Part# 736-0451 (Superseded to 936-0451)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

720-0284

8

Wing Nut

Part# 720-0284 (Superseded to 920-0284)

OEM Warranty Repair Part for MTD

Not available

725-0157

9

Cable Tie

Part# 725-0157

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.74

731-1386D

10

Mulching Baffle

Part# 731-1386D

Note: (If Equipped)

OEM Warranty Repair Part for MTD

Not available

731-1026

11

Trail Shield

Part# 731-1026

OEM Warranty Repair Part for MTD

Not available

17098

12

Clip

Part# 17098 (Superseded to 17098P)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.03

749-0928

13

Lower Handle

Part# 749-0928

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

HANDLE-LOWER

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

714-0104

14

Cotter Pin

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

710-0654A

15

Hex Washer Screw 3/8-16 x 1.0

Part# 710-0654A

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

682-3025

16

Handle Hgt. Adj. Bracket LH Ass'y

Part# 682-3025

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Handle and Height Bracket Assembly

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $39.03

682-3024

Handle Hgt. Adj. Bracket RH Ass'y

Part# 682-3024

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

Handle Bracket Assembly, RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $39.03

712-0431

17

Hex Nut 3/8-16

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.45

736-0356

18

Bell Washer .390 ID x .380 OD

Part# 736-0356 (Superseded to 936-0356)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.03

152628

19

Pivot Bar

Part# 152628

OEM Warranty Repair Part for MTD

Currently unavailable

782-3025

20

Height Adj. Bracket LH

Part# 782-3025 (Superseded to 987-02107A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $39.03

782-3024

Height Adj. Bracket RH

Part# 782-3024 (Superseded to 987-02106A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $39.03

720-0190

21

Height Knob

Part# 720-0190 (Superseded to 720-0426)

OEM Warranty Repair Part for MTD

Not available

732-0404

22

Spring Lever

Part# 732-0404 (Superseded to 94832)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.61

738-05078

23

Shoulder Screw

Part# 738-05078 (Superseded to 938-05078)

OEM Warranty Repair Part for MTD

Not available

736-0105

24

Spring Washer .401 ID x .870 OD

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

734-1987

25

Wheel Assembly 8" x 1.8

Part# 734-1987

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $17.37

738-0102

26

Shoulder Screw

Part# 738-0102 (Superseded to 938-0102)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.32

731-1034B

27

Discharge Chute Assembly

Part# 731-1034B (Superseded to 931-1034B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $51.19

734-1988

28

Wheel Assembly 7" x 1.8

Part# 734-1988

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.08

15261A

29

Height Adjuster Plate

Part# 15261A (Superseded to 787-01290A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $8.48

736-0270

30

Bell Washer .265 ID x .75 OD

Part# 736-0270

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

710-0599

31

Hex Washer Screw 1 /4-20 x .50

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

14579

32

Height Adjuster Assembly LH

Part# 14579 (Superseded to 753-06761)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $46.15

14578

Height Adjuster Assembly RH

Part# 14578 (Superseded to 753-06761)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $46.15

682-0084

33

22" Deck Assembly

Part# 682-0084

OEM Warranty Repair Part for MTD

Variations

CHARCOAL GRAY (0483)

No Longer Available

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for MTD

Not available

SILVER FLAKE (0629)

"No Longer Available DECK 22""S"

Part# SILVER FLAKE (0629)

OEM Warranty Repair Part for MTD

Not available

MTD/TROY-BILT RED (0638)

No Longer Available DECK 22SD

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

YARDMAN GREEN (0665)

"No Longer Available DECK 22""S"

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for MTD

Not available

MOSS GREEN (0668)

No Longer Available

Part# MOSS GREEN (0668)

OEM Warranty Repair Part for MTD

Not available

BLACK JACK (0691)

"No Longer Available DECK 22""S"

Part# BLACK JACK (0691)

OEM Warranty Repair Part for MTD

Not available

748-0376C

34

Blade Adapter

Part# 748-0376C (Superseded to 748-0376E)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $15.19

736-0524A

35

Blade Bell Support

Part# 736-0524A (Superseded to 736-0524B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.87

742-0742A

36

22" Blade

Part# 742-0742A (Superseded to 942-0742A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $21.06

710-1044

37

Hex Cap Screw 3/8-24 x 1.50

Part# 710-1044

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.79
