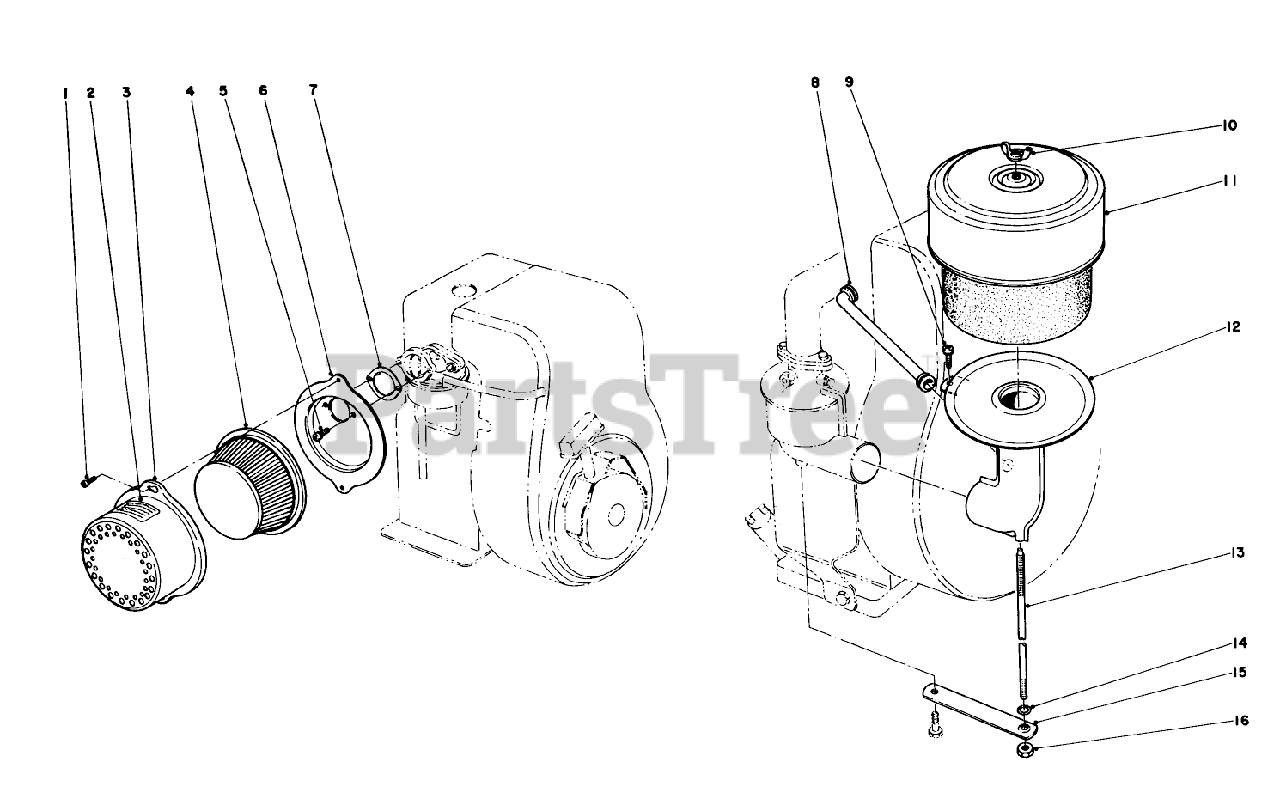

12-9900 - Toro Sweeper Attachment, Snow Thrower Air Cleaner Assembly 5 H.p. Model, 7 And 8 H.p. Model Parts Diagram

Sweeper Attachment, Snow Thrower

Air Cleaner Assembly 5 H.p. Model, 7 And 8 H.p. Model Parts Diagram

  • Title

1

Toro 650152

Screw

Note: Tecumseh Engine Model No. H50-65279J,5 H.P. MODEL

$

$

Currently unavailable

2

Toro 31752

Decal

Note: Tecumseh Engine Model No. H50-65279J,5 H.P. MODEL

$

$

Not available

3

Toro 31692

Body

Note: Tecumseh Engine Model No. H50-65279J,5 H.P. MODEL

$

$

Currently unavailable

4

Toro 30727

Element

Note: Tecumseh Engine Model No. H50-65279J,5 H.P. MODEL

$

$

Currently unavailable

5

Toro 28820

Screw (10-32 x 1/2)

Note: Tecumseh Engine Model No. H50-65279J,5 H.P. MODEL

$

$

Currently unavailable

6

Toro 31691

Bracket

Note: Tecumseh Engine Model No. H50-65279J,5 H.P. MODEL

$

$

Currently unavailable

7

Toro 27277

Gasket

Note: Tecumseh Engine Model No. H50-65279J,5 H.P. MODEL

$

$

Currently unavailable

8

Toro 867068

Tube Breather

Note: Briggs Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable

9

Toro 093158

Screw

Note: Briggs Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable

10

Toro 092129

Wing Nut

Note: Briggs Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable

11

Toro 390400

Cleaner Assy.-Air

Note: Briggs Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable

12

Toro 390311

Pipe Tube Assembly

Note: Briggs Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable

13

Toro 230768

Stud

Note: Briggs Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable

14

Toro 066648

Gasket-O-Ring

Note: Briggs Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable

15

Toro 222150

Strap

Note: Briggs Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable

16

Toro 093453

Nut

Note: Briggs Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable
