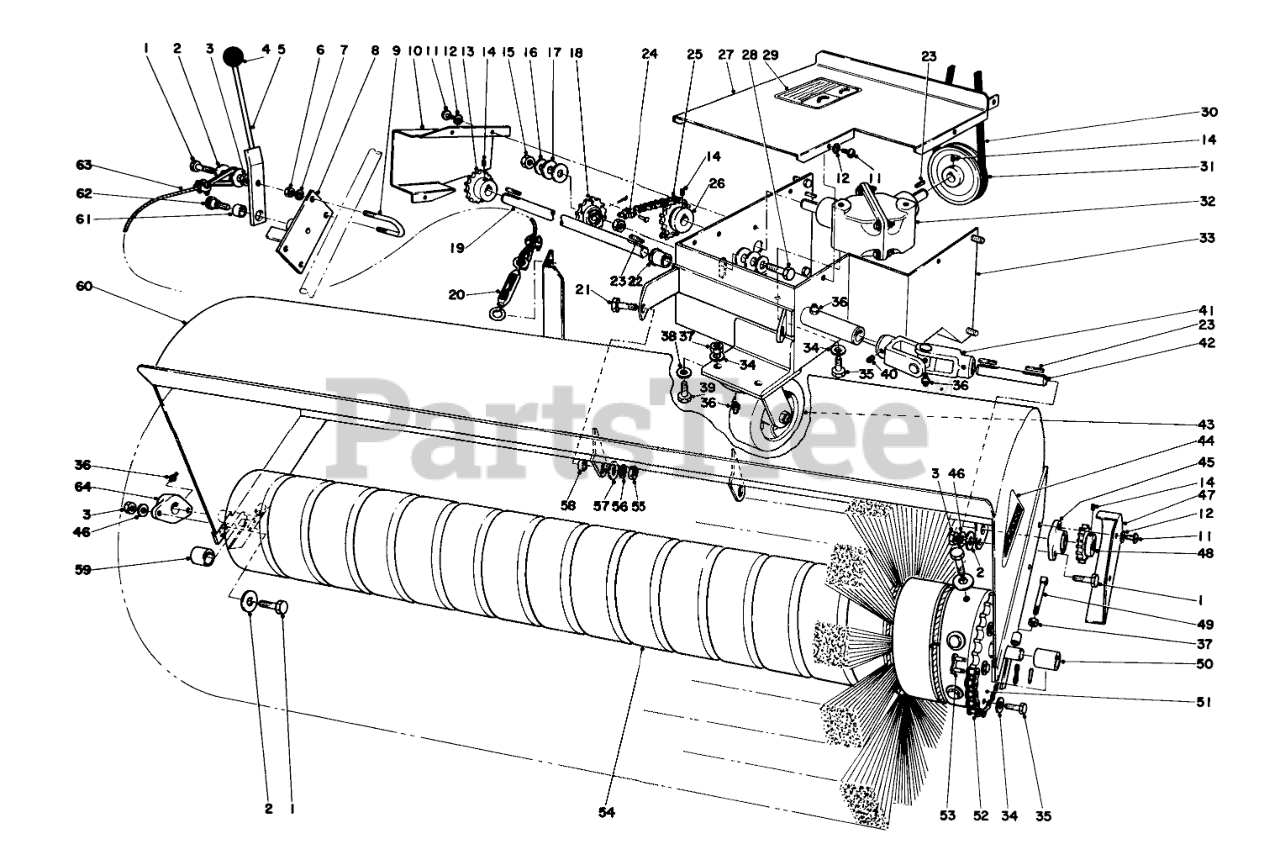

12-9900 - Toro Sweeper Attachment, Snow Thrower ANGLE BROOM ASSEMBLY Parts Diagram

Sweeper Attachment, Snow Thrower

ANGLE BROOM ASSEMBLY Parts Diagram

  • Title

1

Toro 324-6

SCREW-HH
(Superseded to 1-800811)

Note: Obtain from your Toro Dealer

$11.99

$

In Stock, only 1 left!

0

2

Toro 3256-4

WASHER-FLAT

Note: Obtain from your Toro Dealer

$1.99

$

In Stock, Qty 20+

0

3

Toro 3217-8

NUT-HEX

Note: Obtain from your Toro Dealer

$2.49

$

Usually ships in 3-6 days

0

4

Toro A-12049

Lift Handle Knob

$

$

Currently unavailable

5

Toro B-2925

Lift Handle

$

$

Currently unavailable

6

Toro 3217-6

NUT-HEX

Note: Obtain from your Toro Dealer

$1.49

$

In Stock, Qty 5

0

7

Toro 3253-4

WASHER-LOCK

Note: Obtain from your Toro Dealer

$0.99

$

In Stock, Qty 20+

0

8

Toro B-2920

Lift Handle Plate

$

$

Currently unavailable

9

Toro A-2929

U-Bolt

$

$

Currently unavailable

10

Toro C-2917

Chain Guard

$

$

Currently unavailable

11

Toro GM137952

Truss Head Machine Screw

$

$

Currently unavailable

12

Toro 3255-7

WASHER-LOCK/EXT

Note: Obtain from your Toro Dealer

$1.99

$

Usually ships in 3-6 days

0

13

Toro A-12273

Jackshaft Sprocket

$

$

Currently unavailable

14

Toro 3246-3

SCREW-HSH

Note: Obtain from your Toro Dealer

$12.99

$

Usually ships in 3-6 days

0

15

Toro 3218-6

NUT-JAM

Note: Obtain from your Toro Dealer

$6.49

$

In Stock, only 2 left!

0

16

Toro 5616

RAIL-REAR SHIFT

$78.99

$

Usually ships in 3-6 days

0

17

Toro 3256-27

WASHER-FLAT

Note: Obtain from your Toro Dealer

$2.99

$

In Stock, only 1 left!

0

18

Toro A-2362

Idler Sprocket

$

$

Currently unavailable

19

Toro A-12169

Jackshaft Long

$

$

Currently unavailable

20

Toro 12057

Turnbuckle
(Superseded to 704267)

$

$

Not available

21

Toro 322-5

SCREW-HH

Note: Obtain from your Toro Dealer

$0.99

$

In Stock, Qty 20+

0

22

Toro A-12042

Jackshaft Bushing

$

$

Currently unavailable

23

Toro A-12424

Key

$

$

Currently unavailable

24

Toro A-2878

Offset Link

$

$

Currently unavailable

25

Toro A-2877

Roller Chain

$

$

Currently unavailable

26

Toro A-12067

Gear Box Sprocket

$

$

Currently unavailable

27

Toro B-2907

Mounting Frame Cover

$

$

Currently unavailable

28

Toro GM428694

Capscrew

$

$

Currently unavailable

29

Toro A-226

Brush Adjustment Decal

$

$

Currently unavailable

30

Toro A-2915

V-Belt

$

$

Currently unavailable

31

Toro B-12271

Gear Box Sheave

$

$

Currently unavailable

32

Toro C-12270

Gear Box Assembly

$

$

Currently unavailable

33

Toro C-2891

Mounting Frame

$

$

Currently unavailable

34

Toro 3253-21

WASHER-LOCK

Note: Obtain from your local Toro Dealer

$0.99

$

In Stock, Qty 14

0

35

Toro 323-4

SCREW-HH

Note: Obtain from your local Toro Dealer

$3.99

$

In Stock, Qty 19

0

36

Toro 302-2

FITTING-GREASE

Note: Obtain from your local Toro Dealer

$2.49

$

In Stock, Qty 6

0

37

Toro 3217-7

NUT-HEX

Note: Obtain from your local Toro Dealer

$0.99

$

In Stock, Qty 14

0

38

Toro 3256-3

WASHER-FLAT

Note: Obtain from your local Toro Dealer

$0.99

$

In Stock, Qty 20+

0

39

Toro 323-6

SCREW-HH

Note: Obtain from your local Toro Dealer

$2.49

$

In Stock, Qty 20+

0

40

Toro 3247-2

SCREW-SET, HSH

Note: Obtain from your local Toro Dealer

$4.49

$

Usually ships in 3-6 days

0

41

Toro B-12063

Universal Joint Assembly

$

$

Currently unavailable

42

Toro A-12170

Jackshaft Short

$

$

Currently unavailable

43

Toro C-2913

Caster Assembly

$

$

Currently unavailable

44

Toro 11-9930

Decal
(Superseded to 17-6500)

Note: Obtain from your local Toro Dealer

$

$

Not available

45

Toro A-12062

Bearing

$

$

Currently unavailable

46

Toro 3253-21

WASHER-LOCK

Note: Obtain from your local Toro Dealer

$0.99

$

In Stock, Qty 14

0

47

Toro A-2880

Chain Guard

$

$

Currently unavailable

48

Toro A-12067

Gear Box Sprocket

$

$

Currently unavailable

49

Toro GM435893

Set Screw

$

$

Currently unavailable

50

Toro A-12075

Brush Shaft Spacer Long

$

$

Currently unavailable

51

Toro A-12018

Brush Drive Sprocket

$

$

Currently unavailable

52

Toro A-2876

Roller Chain

$

$

Currently unavailable

53

Toro A-12072

Connector Link

$

$

Currently unavailable

54

Toro B-2865

Brush Assembly

$

$

Currently unavailable

55

Toro 3217-9

NUT-HH

Note: Obtain from your local Toro Dealer

$0.99

$

In Stock, Qty 20+

0

56

Toro 3253-7

WASHER-LOCK

Note: Obtain from your local Toro Dealer

$1.49

$

In Stock, Qty 20+

0

57

Toro 3256-5

WASHER-FLAT

Note: Obtain from your local Toro Dealer

$0.99

$

In Stock, only 4 left!

0

58

Toro A-2874

Pivot Collar

$

$

Currently unavailable

59

Toro A-12074

Brush Shaft Spacer Short

$

$

Currently unavailable

60

Toro E-2851

Broom Frame

$

$

Currently unavailable

61

Toro A-4674

Lift Handle Bearing

$

$

Currently unavailable

62

Toro A-6735

Shoulder Bolt

$

$

Currently unavailable

63

Toro B-2931

Lift Cable Assembly(Incl. Ref. No. 20)

$

$

Currently unavailable

64

Toro A-9523

Brush Shaft Bearing

$

$

Currently unavailable
