12 LRC - Husqvarna String Trimmer (1995-12) General Assembly Parts Diagram

String Trimmer

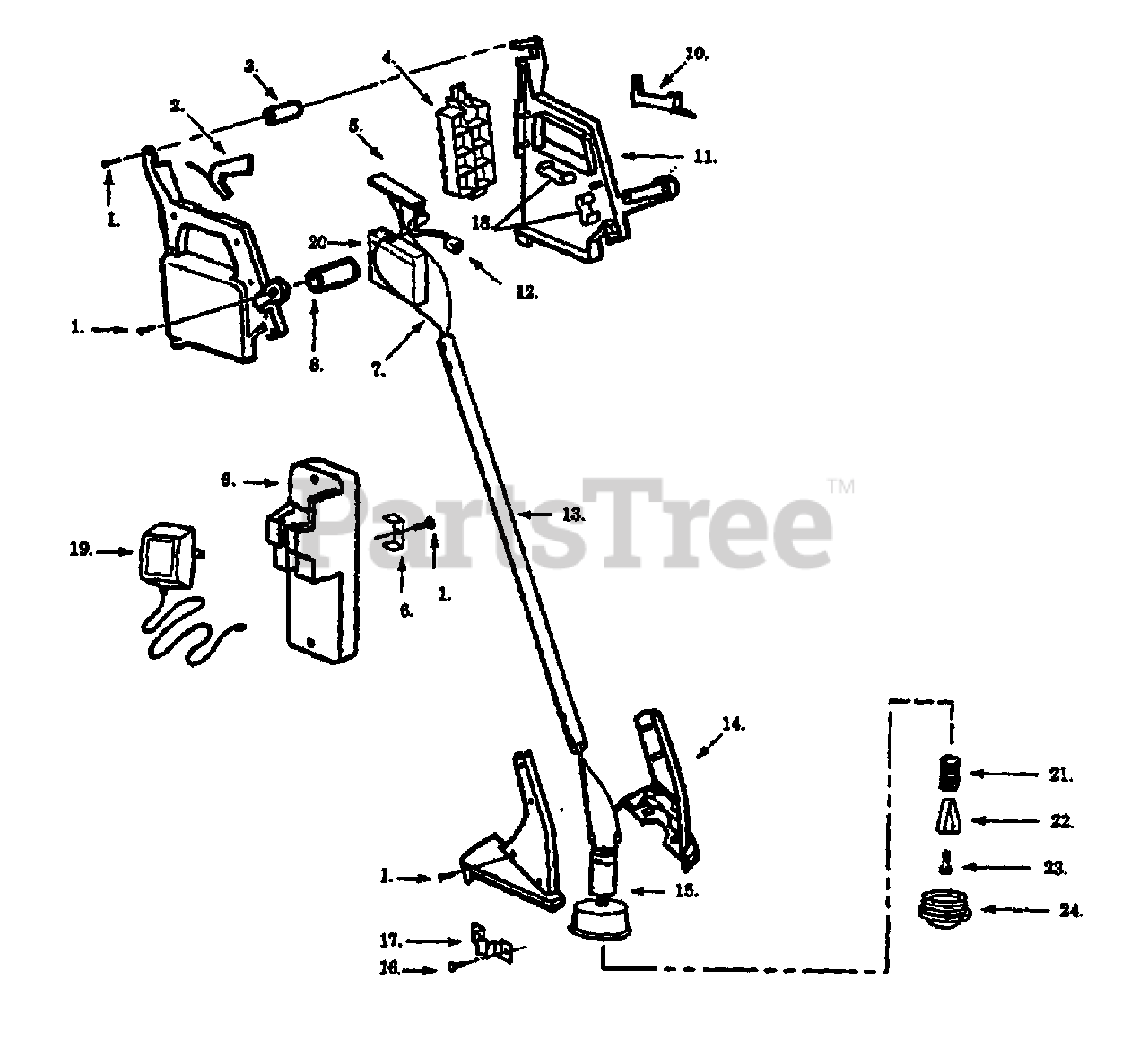

General Assembly Parts Diagram

  • Title

1

Husqvarna 530340179

Screw

$0.99

$

In Stock, Qty 8

0

2

Husqvarna 530400479

Trigger Switch

$

$

Currently unavailable

3

Wrist Support Cushion

$

$

Not available

4

Husqvarna 530402133

Battery Door

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 530401561

Circuit Board Ass'y

$

$

Not available

6

Husqvarna 530401465

Probe-clamp

$

$

Not available

7

Husqvarna 530401847

Wire Ass'y. (Red)

$121.99

$

Usually ships in 3-10 days

0

8

Husqvarna 534101430

Assist Handle Cushion

$

$

Not available

9

Husqvarna 530401431

Hanging Bracket

$

$

Not available

10

Husqvarna 530037040

Trigger Lock
(Superseded to 530402931)

$

$

Not available

11

Husqvarna 530402129

Battery Hsg. Set
(Superseded to 530402852)

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna 530401479

Recepticle Ass'y.

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 530401470

Tube w/Warning Decal
(Superseded to 530402275)

$24.99

$

Usually ships in 3-10 days

0

14

Husqvarna 530402133

Motor Hsg. Set w/ Line Limiter

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 530401582

Motor/Hub Ass'y.
(Superseded to 530403337)

$

$

Not available

16

Husqvarna 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

17

Husqvarna 530401460

Clamp-Motor

$0.99

$

Usually ships in 3-10 days

0

18

Husqvarna 530401462

Battery Spring

$

$

Currently unavailable

19

Husqvarna 530401462

Charger

$

$

Currently unavailable

20

Husqvarna 530401574

Battery
(Superseded to 530402815)

$

$

Not available

21

Husqvarna 530401464

Spring

$

$

Not available

22

Husqvarna 530401466

Clip Retainer

$3.99

$

In Stock, Qty 10

0

23

Husqvarna 530401467

Screw w/Washer

$

$

Not available

24

Husqvarna 530401463

Spool

$

$

Not available

Husqvarna 530063266

Operator Manual

$

$

Currently unavailable

Husqvarna 530401448

Carton Contents Bag

$

$

Not available
