120-476B190 - White Outdoor 21" Walk-Behind Mower (1990)

21" Walk-Behind Mower

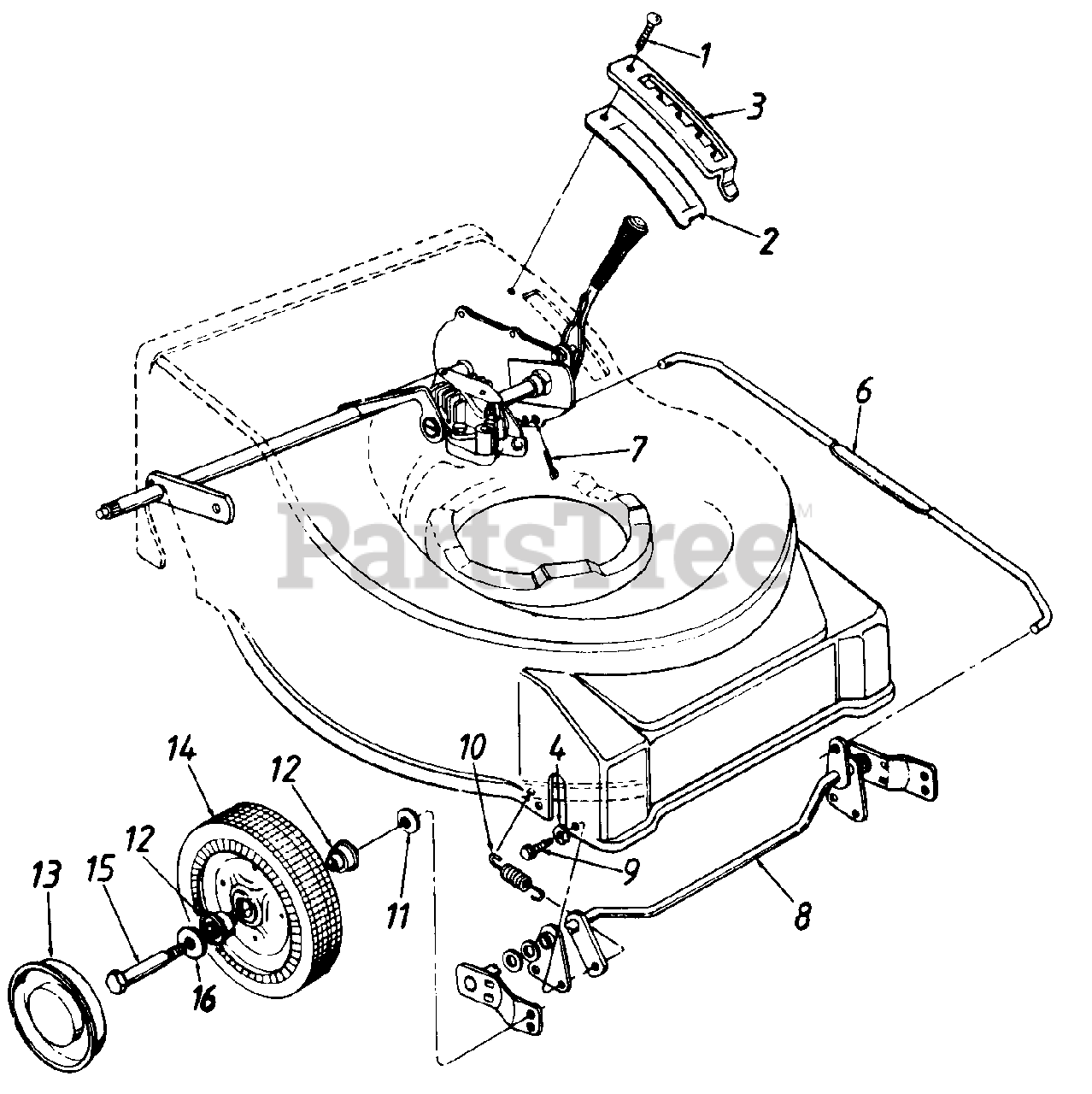

120-476B190 - White Outdoor 21" Walk-Behind Mower (1990) > Parts Diagrams (3) > Height Adjustment Assembly

  • Title
710-1017

1

Torx Mach. AB-Tap Scr. 1/4 X .62" Lg.*

Part# 710-1017

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.37

721-0216

2

Height Adjustment Support

Part# 721-0216

OEM Warranty Repair Part for White Outdoor

Not available

17323

3

Height Adjustment Plate

Part# 17323

OEM Warranty Repair Part for White Outdoor

Not available

736-0329

4

L-Wash. 1/4" I.D.*

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

747-0699

6

Height Adj. Connecting Rod

Part# 747-0699

OEM Warranty Repair Part for White Outdoor

Not available

714-0507

7

Cotter Pin 3/32" Dia.

Part# 714-0507 (Superseded to 914-0507)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

17022

8

Front Axle Ass'y.

Part# 17022

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

AXLE ASSEMBLY BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $88.74

710-0352

9

Hex L-Wash. Hd. AB-Tap Scr. 1/4 X .88" Lg.

Part# 710-0352

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

732-0589

10

Extension Spring 2.39" Lg.

Part# 732-0589

OEM Warranty Repair Part for White Outdoor

Not available

736-0105

11

Bell-Wash. .380" I.D. x .88"

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

741-0180

12

Flange Ball Bearing 1/2" I.D.

Part# 741-0180 (Superseded to 941-0180)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $12.94

731-0981A

13

Hub Cap

Part# 731-0981A (Superseded to 731-0981C)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.86

734-1513A

14

Wheel Ass'y. Comp.-Front

Part# 734-1513A (Superseded to 753-08093)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $29.74

738-0102

15

Shld. Bolt .498" Dia. x 1.45

Part# 738-0102 (Superseded to 938-0102)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.78

736-0232

16

Wave Wash. .53" I.D. x .78"

Part# 736-0232 (Superseded to 936-0232)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.97
