120-476B190 - White Outdoor 21" Walk-Behind Mower (1990) Mower Assembly Parts Diagram

21" Walk-Behind Mower

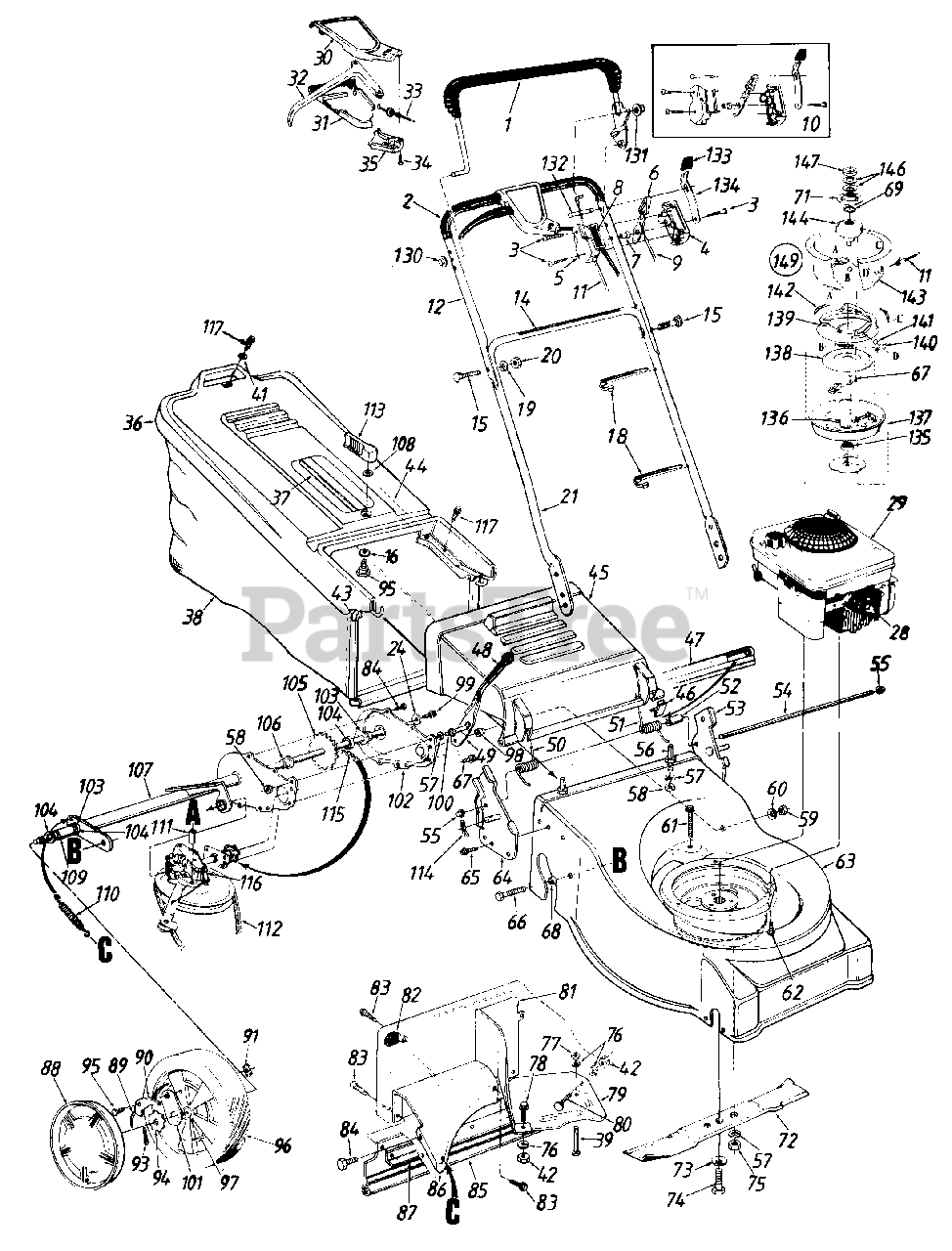

Mower Assembly Parts Diagram

  • Title

1

White Outdoor 731-0609

Control Handle Ass'y.

$

$

Not available

2

White Outdoor 720-0225

Grip
(Superseded to 720-0294A)

$6.99

$

In Stock, Qty 6

0

3

White Outdoor 710-0796

Truss Mach. B-Tap Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, Qty 6

0

4

White Outdoor 731-0817A

Control Panel Half

$

$

Not available

5

White Outdoor 731-0816A

Clutch Panel Half

$

$

Not available

6

White Outdoor 731-0972

Throttle Control Lever
(Superseded to 931-0972)

$8.99

$

In Stock, Qty 14

0

7

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

8

777-5772

Control Label-Throttle

$

$

Not available

9

White Outdoor 746-0672

Throttle Wire-58" Lg.
(Superseded to 946-0674A)

$17.99

$

In Stock, Qty 5

0

10

White Outdoor 753-0431

Control Housing Comp.

$

$

Not available

11

White Outdoor 746-0407

Control Cable-52" Lg.
(Superseded to 946-0407)

$

$

Not available

12

White Outdoor 749-0439A

Upper Handle
(Superseded to 749-0439E-0637)

$43.99

$

In Stock, only 1 left!

0

14

777-5775

Instruction Label-Handle

$

$

Not available

15

White Outdoor 710-0671

CuNed Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

16

White Outdoor 736-0286

Bowed Washer
(Superseded to 936-0286)

$6.49

$

In Stock, only 2 left!

0

18

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 2 left!

0

19

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

21

White Outdoor 749-0504C

Lower Handle
(Superseded to 749-0907B)

$46.99

$

In Stock, Qty 8

0

24

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 17

0

28

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

29

Engine

$

$

Not available

30

White Outdoor 731-1057

Control Cover Half-Upper
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

31

White Outdoor 731-1058

Control Cover Half-Lower
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

32

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$14.99

$

In Stock, only 3 left!

0

33

White Outdoor 746-0711

Drive Cable-53" Lg.
(Superseded to 946-0711B)

$29.99

$

In Stock, Qty 16

0

34

White Outdoor 710-0841

Flat C-Sunk Hd. Tap Scr. #10 x .75" Lg.

$3.99

$

Usually ships in 3-6 days

0

35

White Outdoor 731-1059

Cable Mtg. Cap
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

36

White Outdoor 731-0857A

Hardtop Bag Cover
(Superseded to 631-0003)

$97.99

$

Usually ships in 3-6 days

0

37

White Outdoor 731-0856

Hardtop Handle
(Superseded to 631-0003)

$97.99

$

Usually ships in 3-6 days

0

38

White Outdoor 764-0252

Grass Bag
(Superseded to 964-0252)

$133.99

$

Usually ships in 3-6 days

0

39

White Outdoor 710-0166

Truss Mach. Scr. 1/4-20 x 1.0" Lg.
(Superseded to 710-0166A)

$6.99

$

In Stock, only 1 left!

0

41

White Outdoor 736-0463

Fl-Wash. .281" I.D. x .62"

$4.49

$

In Stock, only 1 left!

0

42

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

43

White Outdoor 747-0693B

Front Catcher Frame
(Superseded to 764-0411-0637)

$38.99

$

Usually ships in 3-6 days

0

44

White Outdoor 749-0736B

Rear Catcher Frame

Variations

White Outdoor 749-0736B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

45

White Outdoor 731-0859

Chute Deflector
(Superseded to 931-0859A)

$120.99

$

Usually ships in 3-6 days

0

46

White Outdoor 731-0970A

Deflector Plug
(Superseded to 731-0970B)

$

$

Not available

47

White Outdoor 731-0858

Seal-Extrusion

$

$

Not available

48

White Outdoor 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

49

White Outdoor 732-0580

Spring Lever

$7.99

$

In Stock, only 1 left!

0

50

White Outdoor 732-0578A

Torsion Spring-R.H.
(Superseded to 732-0578B)

$

$

Not available

51

White Outdoor 732-0577A

Torsion Spring-L.H.
(Superseded to 932-0577B)

$

$

Not available

52

White Outdoor 750-0566

Spacer .255" I.D.
(Superseded to 750-0566A)

$9.49

$

In Stock, Qty 8

0

53

White Outdoor 12297A

Handle Brkt. Ass'y.-L.H.
(Superseded to 12297B-0637)

$

$

Not available

54

White Outdoor 747-0698

Hinge Pin 17.75" Lg.
(Superseded to 747-0698B)

$

$

Not available

55

White Outdoor 726-0106

Cap Speed Nut

$3.99

$

Usually ships in 3-6 days

0

56

White Outdoor 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

57

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

58

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$3.99

$

In Stock, Qty 20+

0

59

White Outdoor 712-0296

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

60

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

61

White Outdoor 710-0778

Hex Wash. Hd. Tap Scr. 1/4-20 x 1.5" Lg.

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x l.O" Lg.

$3.99

$

In Stock, only 4 left!

0

63

16997A

638/N 21" Deck Ass'y.

$

$

Not available

64

White Outdoor 12296A

Handle Brkt. Ass'y.-R.H.
(Superseded to 12296B-0637)

$

$

Not available

65

White Outdoor 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.
(Superseded to 910-0892)

$

$

Not available

66

White Outdoor 710-1006

Hex Wash. Hd. Tap Scr. 3/8-16 x .75" Lg.
(Superseded to 910-1006)

$

$

Not available

67

White Outdoor 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

68

White Outdoor 750-0736

Spacer.383" I.D.
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

69

White Outdoor 736-0409

Serrated Washer 1.0" I.D.
(Superseded to 936-0409)

$

$

Not available

71

White Outdoor 756-0503

Serrated Pulley Half

$7.99

$

Usually ships in 3-6 days

0

72

White Outdoor 742-0306A

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 2 left!

0

73

White Outdoor 736-0412

Bell-Wash. .46" I.D. x .88"

$

$

Not available

74

White Outdoor 710-1002

Hex Bolt 7/16-20 x 2.0" Lg. (Gr. 5)

$6.49

$

Usually ships in 3-6 days

0

75

White Outdoor 712-0328

Hex Nut 3/8-24 Thd. (Gr. 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 20+

0

76

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

77

White Outdoor 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$5.99

$

Usually ships in 3-6 days

0

78

White Outdoor 710-0252

Hex Bolt 1/4-20 x .85" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

79

White Outdoor 17013

Rear Belt Baffle

$

$

Not available

80

White Outdoor 710-0167

Carr. Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

81

White Outdoor 17006

Rear Panel Baffle

Variations

White Outdoor 17006-0637

No Longer Available BAFFLE-RR-PANEL - POWDER BLACK (0637)

$

$

Not available

$

$

82

White Outdoor 731-0931

Corner Plug

$

$

Not available

83

White Outdoor 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$7.99

$

In Stock, Qty 20+

0

84

White Outdoor 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.49

$

Usually ships in 3-6 days

0

85

White Outdoor 731-0668

Rear Flap
(Superseded to 731-0669)

$46.99

$

Usually ships in 3-6 days

0

86

White Outdoor 17008

Rear Chute Baffle
(Superseded to 17008-0637)

Variations

White Outdoor 17008-0637

BAFFLE-RR-CHUTE - POWDER BLACK (0637)

$

$

Not available

$

$

87

White Outdoor 14847

Retaining Strip

Variations

White Outdoor 14847-0637

STRIP-RETAINING - POWDER BLACK (0637)

$

$

Not available

$

$

88

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$9.99

$

In Stock, Qty 6

0

89

White Outdoor 10622B

Plastic Spring

$4.49

$

In Stock, Qty 20+

0

90

White Outdoor 748-0188B

Pawl.345" I.D.
(Superseded to 948-0188B)

$10.99

$

In Stock, Qty 19

0

91

White Outdoor 712-0189

Weld Nut 1/4-20 Thd.
(Superseded to 912-0414)

$

$

Not available

93

White Outdoor 714-0115

Cotter Pin 1/8" Dia.

$3.99

$

In Stock, only 1 left!

0

94

White Outdoor 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$9.99

$

In Stock, Qty 9

0

95

White Outdoor 738-0137

Shld. Bolt .342" Dia. x .268"

$

$

Not available

96

White Outdoor 734-1510A

Wheel Ass'y. Comp.-Rear
(Superseded to 734-1826)

$31.99

$

In Stock, Qty 7

0

97

White Outdoor 741-0486B

Bearing 1/2" I.D.

$

$

Not available

98

White Outdoor 750-0624

Shld. Spacer .50" Dia.

$

$

Not available

99

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

100

White Outdoor 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

101

White Outdoor 16855

Pawl Plate

$5.99

$

In Stock, Qty 20+

0

102

White Outdoor 17053A

Chain Cover Ass'y.

Variations

White Outdoor 17053A-0480

No Longer Available COVER-CHAIN - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 17053A-0483

No Longer Available COVER-CHAIN - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17053A-0637

No Longer Available COVER-CHAIN - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17053A-0638

No Longer Available COVER-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17053A-0650

No Longer Available COVER-CHAIN - RED METALLIC (0650)

$

$

Not available

White Outdoor 17053A-0662

No Longer Available COVER-CHAIN - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17053A-0665

No Longer Available COVER-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17053A-0674

No Longer Available COVER-CHAIN - YARDMAN YELLOW (0674)

$

$

Not available

$

$

103

White Outdoor 741-0324

Hex Flange Brg. .506" I.D.
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

104

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .93"

$3.99

$

In Stock, only 2 left!

0

105

White Outdoor 738-0719A

Rear Axle Ass'y.
(Superseded to 938-0719A)

$

$

Not available

106

White Outdoor 741-0522

Hex Flange Bearing

$7.99

$

In Stock, only 2 left!

0

107

White Outdoor 17009

Chain Axle Ass'y.

Variations

White Outdoor 17009-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

108

White Outdoor 736-0498

Internal L-Wash. 1/4" I.D.

$3.99

$

Usually ships in 3-6 days

0

109

White Outdoor 748-0190

Spacer.513" I.D.

$5.99

$

In Stock, only 1 left!

0

110

White Outdoor 732-0481

Extension Spring 3.8" Lg.
(Superseded to 932-0481)

$

$

Not available

111

White Outdoor 750-0589

Spacer.325" l.D.
(Superseded to 950-0589)

$5.99

$

Usually ships in 3-6 days

0

112

White Outdoor 754-0346

V-Belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 20+

0

113

White Outdoor 720-0224

Grass Catcher Locking Knob
(Superseded to 920-0224)

$

$

Not available

114

White Outdoor 714-0104

Internal Cotter Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

115

White Outdoor 713-0353

#48 Chain 50" Pitch x 30 Links
(Superseded to 913-0353)

$

$

Not available

116

White Outdoor 717-0417

Transmission Comp.
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

117

White Outdoor 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 X .62" Lg.
(Superseded to 910-0892)

$

$

Not available

130

White Outdoor 726-0135

Push Cap

$6.49

$

In Stock, Qty 9

0

131

White Outdoor 726-0245

Push Cap

$

$

Not available

132

White Outdoor 731-0607

Lock Pin .314" Dia. x l.75"

$

$

Not available

133

White Outdoor 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

134

White Outdoor 732-0401

Lockout Spring

$

$

Not available

135

White Outdoor 741-0124

Ball Brg. .669" I.D. x 1.574"
(Superseded to 941-0600)

$23.99

$

In Stock, Qty 20+

0

136

White Outdoor 732-0396

Comp. Spring .35" O.D. x 2.0" Lg.

$

$

Not available

137

White Outdoor 14300A

Clutch Blade Housing Ass'y.

$

$

Not available

138

White Outdoor 14304A

Clutch Cone

$

$

Not available

139

719-0283

Brake Cup Cone

$

$

Not available

140

White Outdoor 731-0520

Ball Block

$

$

Not available

141

White Outdoor 741-0326

Steel Ball 50" Dia.

$

$

Not available

142

White Outdoor 732-0397

Ext. Spring 1.75" Lg.

$

$

Not available

143

14309B

Clutch Housing

$

$

Not available

144

White Outdoor 756-0504

Fixed Pulley Adapter

$

$

Not available

146

White Outdoor 736-0450

Bell-Wash. 1.01" I.D.
(Superseded to 936-0450)

$

$

Not available

147

White Outdoor 748-0332

Crankshaft Spacer

$

$

Not available

149

White Outdoor 812-00001

Blade Brake Clutch Ass'y. ComD

$

$

Not available
