120-526R190 - White Outdoor 22" Walk-Behind Mower (1990) Mower Assembly Parts Diagram

22" Walk-Behind Mower

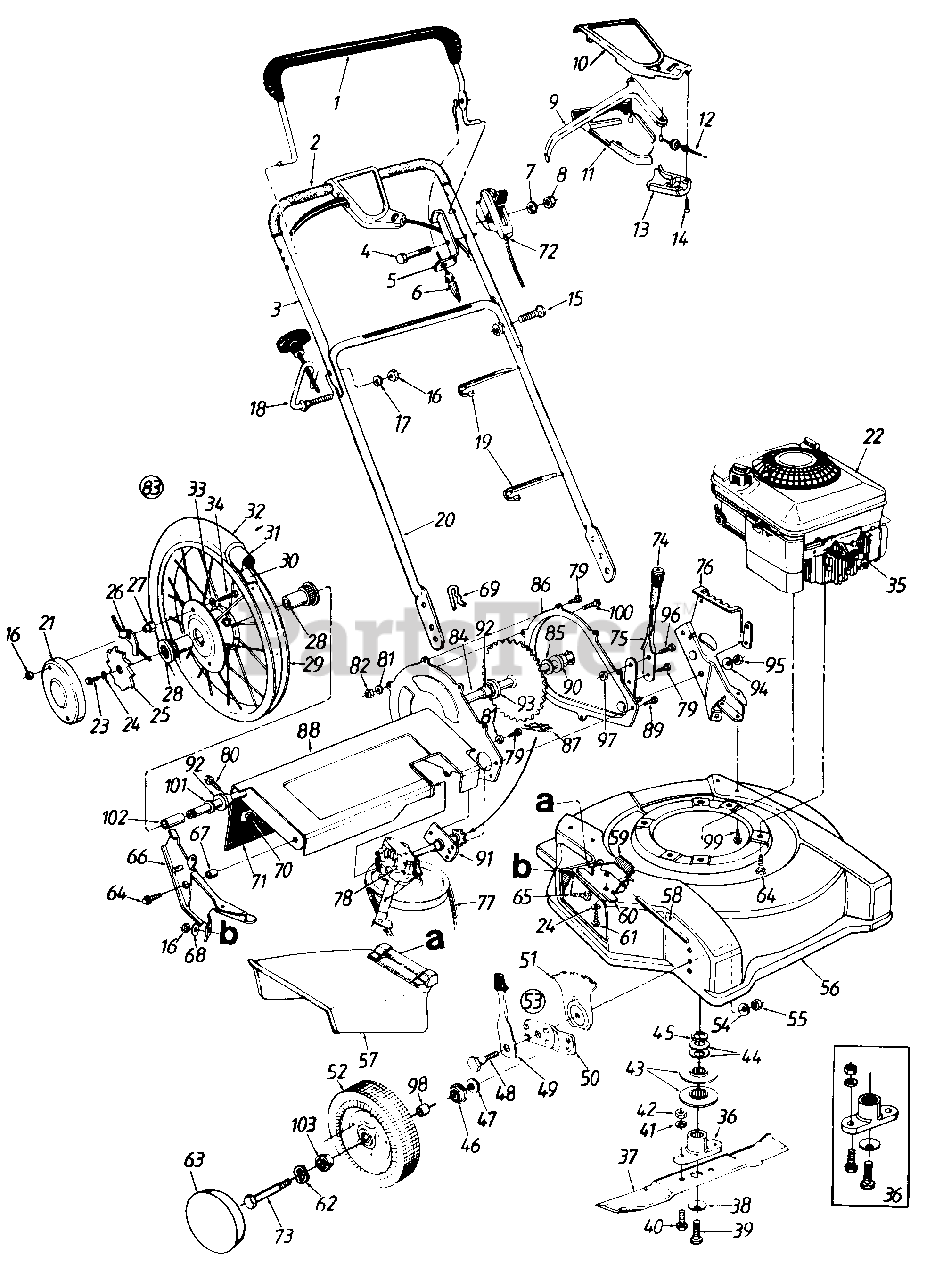

Mower Assembly Parts Diagram

  • Title

1

White Outdoor 731-1135

Control Hand e Ass'y.
(Superseded to 747-0748)

$

$

Not available

2

White Outdoor 720-0225

Foam Grip
(Superseded to 720-0294A)

$6.99

$

In Stock, Qty 6

0

3

White Outdoor 749-0539A

Upper Handle
(Superseded to 749-0539C-0637)

$49.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-0501

Hex Bolt 1/4-20 x 2.0" Lg.

$6.99

$

In Stock, only 1 left!

0

5

White Outdoor 17174

Cable Mtg. Brkt.

$

$

Not available

6

White Outdoor 746-0553

Control Cable-36" Lg.
(Superseded to 946-0553)

$22.99

$

In Stock, only 1 left!

0

7

White Outdoor 736-0175

Spring Wash. .265" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

8

White Outdoor 712-0287

Hex Nut 1/4-20 Thd. *
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

9

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$14.99

$

In Stock, only 3 left!

0

10

White Outdoor 731-1057

Control Cover Half-Upper
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

11

White Outdoor 731-1058

Control Cover Half-Lower
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

12

White Outdoor 746-0712

Self-Propelled Cable-44" Lg.

$

$

Not available

13

White Outdoor 731-1059

Cable Mounting Cap
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

14

White Outdoor 710-0841

Fl-"C" Sunk Hd. Tap Scr. #10 x .75" Lg.

$3.99

$

Usually ships in 3-6 days

0

15

White Outdoor 710-0671

Curved Carr. Bolt 5/16-18x1.38"lg.

$

$

Not available

16

White Outdoor 712-0267

Hex Nut 5/16"18 Thd.
(Superseded to 912-3010)

$

$

Not available

17

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 710-0842B

Rope Guide Bolt

$

$

Not available

19

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

20

White Outdoor 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, Qty 10

0

21

White Outdoor 14967

Wheel Cover

$

$

Not available

22

Engine

$

$

Not available

23

White Outdoor 710-0812

Hex Bolt 1/4-20" x .75" Lg. (Gr. 5)

$

$

Not available

24

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 13

0

25

White Outdoor 748-0312

Wheel Ratchet

$

$

Not available

26

White Outdoor 748-0315

Pawl and Spring Ass'y.

$14.99

$

Usually ships in 3-6 days

0

27

White Outdoor 712-0329

Special Hex Nut 5/16-18 Thd.

$

$

Not available

28

White Outdoor 741-0485

Flange Bearing .63" I.D.
(Superseded to 941-0485)

$

$

Not available

29

White Outdoor 734-1399

Rim Ass'y. 16" x 2.1"

$

$

Not available

30

White Outdoor 734-1400

Rimstrip 16" x 7/8"

$

$

Not available

31

White Outdoor 734-1397

Inner Tube 16" x 2.12"

$

$

Not available

32

White Outdoor 734-1396

Chevron Tire 16" x 2.125"

$

$

Not available

33

White Outdoor 736-0104

Intern. L-Wash. 5/16" I.D.
(Superseded to 936-0104)

$4.49

$

Usually ships in 3-6 days

0

34

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.0" (Gr. 5)

$3.99

$

In Stock, Qty 17

0

35

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

36

White Outdoor 753-0485

Blade Adapter Kit

$46.99

$

Usually ships in 3-6 days

0

37

White Outdoor 742-0522

22" Blade
(Superseded to 942-0622)

$

$

Not available

38

White Outdoor 736-0453

Bell-Wash. .46" I.D.
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

39

White Outdoor 710-0757

Hex Bolt 7/16-20 x 1.5" Lg. (Gr. 5)

$8.99

$

In Stock, Qty 5

0

40

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.49

$

Usually ships in 3-6 days

0

41

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

42

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 756-0502

Pulley Half
(Superseded to 956-0502)

$

$

Not available

44

White Outdoor 736-0450

Bell-Wash. 1.01" l.D.
(Superseded to 936-0450)

$

$

Not available

45

White Outdoor 748-0332

Crankshaft Spacer

$

$

Not available

46

White Outdoor 741-0484

Ball Bearing 1/2" I.D.
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

47

White Outdoor 736-0105

Bell-Wash. .38" I.D.

$3.99

$

In Stock, Qty 20+

0

48

White Outdoor 738-0507B

Shld. Bolt .5"

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

50

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

51

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

52

White Outdoor 734-1259

Wheel Ass'y. Comp.

$

$

Not available

53

White Outdoor 14578

Height Adj. Ass'y. Comp.-F
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

White Outdoor 14579

Height Adj. Ass'y. Comp.-L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$60.99

$

In Stock, Qty 7

0

54

White Outdoor 736-0356

Bell-Wash. 39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

55

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

56

706-14652

22" Deck Ass'y.

$

$

Not available

57

White Outdoor 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$67.99

$

In Stock, Qty 12

0

58

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

59

White Outdoor 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.49

$

In Stock, only 4 left!

0

60

White Outdoor 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 4 left!

0

61

White Outdoor 710-0599

Hex TT-Tap Scr. 1/4-20 x 5"

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 736-0232

Wave Wash. 53" l.D. x .78"

$4.49

$

In Stock, Qty 18

0

63

White Outdoor 731-0355A

Hub Cap

$

$

Not available

64

White Outdoor 710-0654A

Hex TT-Tap Scr. 3/8-16 x 1"

$3.99

$

In Stock, only 4 left!

0

65

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

66

White Outdoor 16136A

Handle Brkt. Ass'y.-R.H.
(Superseded to 16136C-0637)

$

$

Not available

67

White Outdoor 750-0736

Spacer 383" I.D. x 503n
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

68

White Outdoor 736-0242

Bell-Wash. 5/16" l.D.

$3.99

$

In Stock, Qty 20+

0

69

White Outdoor 714-0104

Intern. coner Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

70

White Outdoor 14836

Retaining Strip

$

$

Not available

71

White Outdoor 731-1172

Rear Flap

$

$

Not available

72

White Outdoor 746-0820

Throttle Control Ass'y. Comp.-49" Lg.
(Superseded to 946-0821A)

$41.99

$

Usually ships in 3-6 days

0

73

White Outdoor 738-0102

Front Axle Bolt

$9.49

$

In Stock, Qty 11

0

74

White Outdoor 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

75

732-0651

Height Adjustment Lever

$

$

Not available

76

White Outdoor 706-14734

Handle Brkt. Ass'y.-L.H.

$

$

Not available

77

White Outdoor 754-0369

"V" Belt
(Superseded to 954-0369)

$28.99

$

In Stock, only 2 left!

0

78

White Outdoor 717-0417B

Trans. Comp.
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

79

White Outdoor 710-0352

Hex B-Tap Scr. 1/4 X .38" Lg.

$4.49

$

Usually ships in 3-6 days

0

80

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4 X .62" Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

81

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

82

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

83

White Outdoor 734-1398

Wheel Ass'y. Comp.

$

$

Not available

84

White Outdoor 713-0425

Sprocket and Axle Ass'y.

$

$

Not available

85

White Outdoor 736-0256

Fl-Wash. 635" I.D. x 1.0" O.D.
(Superseded to 936-0256)

$6.99

$

Usually ships in 3-6 days

0

86

White Outdoor 706-14709

Chain Case and Arm Ass'y.

$

$

Not available

87

White Outdoor 713-0257

#48 Chain 1/2" Pitch x 52 Links
(Superseded to 713-0135)

$

$

Not available

88

706-14707

Rear Drive Support Ass'y.

$

$

Not available

89

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

90

741-0481

Hex Flange Brg. .631" I.D.

$

$

Not available

91

White Outdoor 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

White Outdoor 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

92

White Outdoor 741-0413

Hex Flange Brg. .631" I.D.

$8.99

$

Usually ships in 3-6 days

0

93

White Outdoor 748-0313

Spacer 63" l.D. x 1.25"

$3.49

$

Usually ships in 3-6 days

0

94

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 20+

0

95

White Outdoor 712-0296

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

96

White Outdoor 710-0201

Hex Bolt 3/8-16 x .62" Lg.

$

$

Not available

97

White Outdoor 712-0431

Flanged L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

98

White Outdoor 750-0434

Spacer

$6.49

$

Usually ships in 3-6 days

0

99

White Outdoor 710-0603

Hex B-Tap Scr. 5/16-18 x .5"

$4.49

$

Usually ships in 3-6 days

0

100

White Outdoor 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

101

White Outdoor 736-0302

Fl-Wash. .632" I.D. x .943"

$

$

Not available

102

White Outdoor 750-0547

Spacer .628" I.D. x .875"

$5.49

$

In Stock, only 3 left!

0

103

White Outdoor 741-0267

Ball Bearing 3/8" I.D.

$

$

Not available
