120 e Mark II (967861908) - Husqvarna Chainsaw (2018-05) FUEL TANK & HANDLE Parts Diagram

Chainsaw

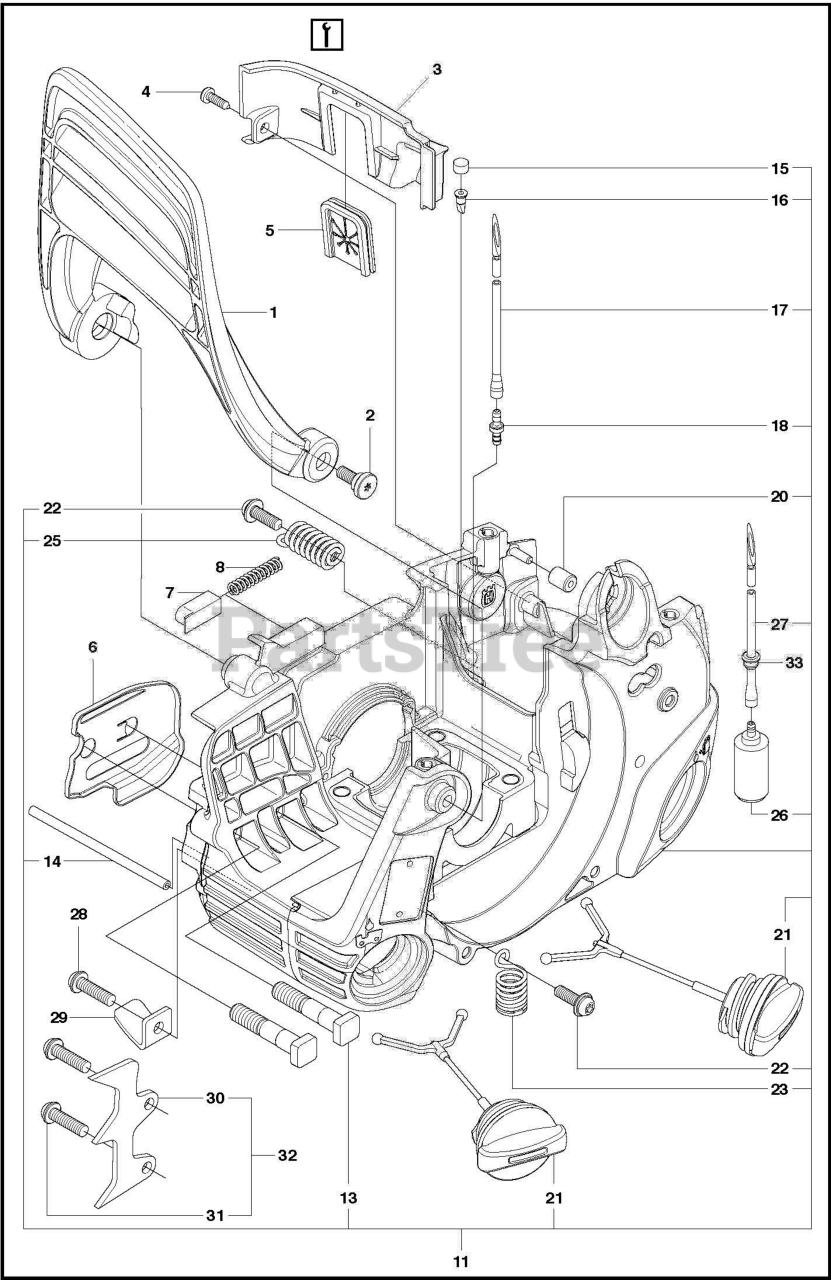

FUEL TANK & HANDLE Parts Diagram

  • Title

1

Husqvarna 577611901

HANDGUARD HHS

Note: HAND GUARD ASSY HHS

$15.99

$

In Stock, Qty 14

0

2

Husqvarna 545127301

BOSS SCREW

Note: BOSS SCREW HANDGUARD

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 545061201

REAR WALL

Note: REAR WHEEL

$12.99

$

Usually ships in 3-10 days

0

4

Husqvarna 545227101

SCREW 6-19X.437

Note: SCREW

$4.99

$

In Stock, Qty 6

0

5

Husqvarna 545075401

GROMMET

Note: GROMMET REAR WALL

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 545071401

PLATE BAR

Note: BAR PLATE MOUNTING

$4.99

$

In Stock, only 4 left!

0

7

Husqvarna 545071301

CAP, SPRING HANDGUARD

Note: CAP. SPRING HANDGUARD

$6.49

$

In Stock, Qty 10

0

8

Husqvarna 545071201

SPRING

Note: SPRING. HANDGUARD POSITION

$4.99

$

In Stock, Qty 10

0

11

Husqvarna 587026801

CHASSIS ASSEMBLY, P021, MACH.

Note: CHASSIS ASSEMBLY MACH. BEARING

$125.99

$

Usually ships in 3-10 days

0

13

Husqvarna 529310301

BOLT

Note: BOLT M8 X 1.25

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 545033501

OIL TUBE

Note: HOSE

$6.49

$

In Stock, Qty 7

0

15

Husqvarna 530029868

VENT,FUEL TANK 36/41

Note: PLUG

$6.49

$

In Stock, Qty 13

0

16

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

Note: CHECK VALVE DUCKBILL

$4.49

$

In Stock, Qty 14

0

17

Husqvarna 580727101

KIT FUEL LINE

Note: FUEL HOSE KIT LP100 5.3 O.D.

$17.99

$

Usually ships in 3-10 days

0

18

Husqvarna 530023877

FUEL LINE FITTING

Note: NIPPLE FITTING - FUEL LINE

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 545061901

ISOLATOR FILTER HOUSING

Note: ISOLATOR FILTER HOUSING

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 544111203

ASSY TANK CAP GREY

Note: TANK CAP ASSY GREY

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 530015906

SCREW,FRONT HBAR 36/41

Note: SCREW

$6.49

$

In Stock, Qty 9

0

23

Husqvarna 545033801

ISOLATOR

Note: ISOLATOR ASSY FRONT

$10.99

$

In Stock, Qty 9

0

25

Husqvarna 545063101

SPRING

Note: SPRING REAR ISOLATOR

$11.99

$

In Stock, Qty 15

0

26

Husqvarna 577167201

ASSY FUEL PICKUP PRE FLUSHED

Note: ASSEMBLY FUEL PICKUP PRE FLUSHED

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 580727101

KIT FUEL LINE

Note: FUEL HOSE KIT LP100 5.3 O.D.

$17.99

$

Usually ships in 3-10 days

0

28

Husqvarna 530015814

SCREW

Note: SCREW PT 60/10-14

$6.49

$

In Stock, Qty 20+

0

29

Husqvarna 530029850

CHAIN CATCHER 36/41

Note: CHAIN CATCHER

$6.49

$

In Stock, Qty 20+

0

30

Husqvarna 530038990

SPIKE
(Superseded to 530014381)

Note: FELLING DOG

$9.99

$

In Stock, Qty 16

0

31

Husqvarna 530016439

SCREW

Note: SCREW

$6.49

$

In Stock, only 1 left!

0

32

Husqvarna 530014381

SPIKE 36/41

Note: FELLING DOG KIT SPIKE ASSEMBLY

$9.99

$

In Stock, Qty 16

0

33

Husqvarna 580457501

GROMMET FUEL LINE

Note: GROMMET FUEL LINE

$6.99

$

In Stock, Qty 20+

0
