120 Mark II (967861934) - Husqvarna Chainsaw (2019-04) FUEL TANK & HANDLE Parts Diagram

Chainsaw

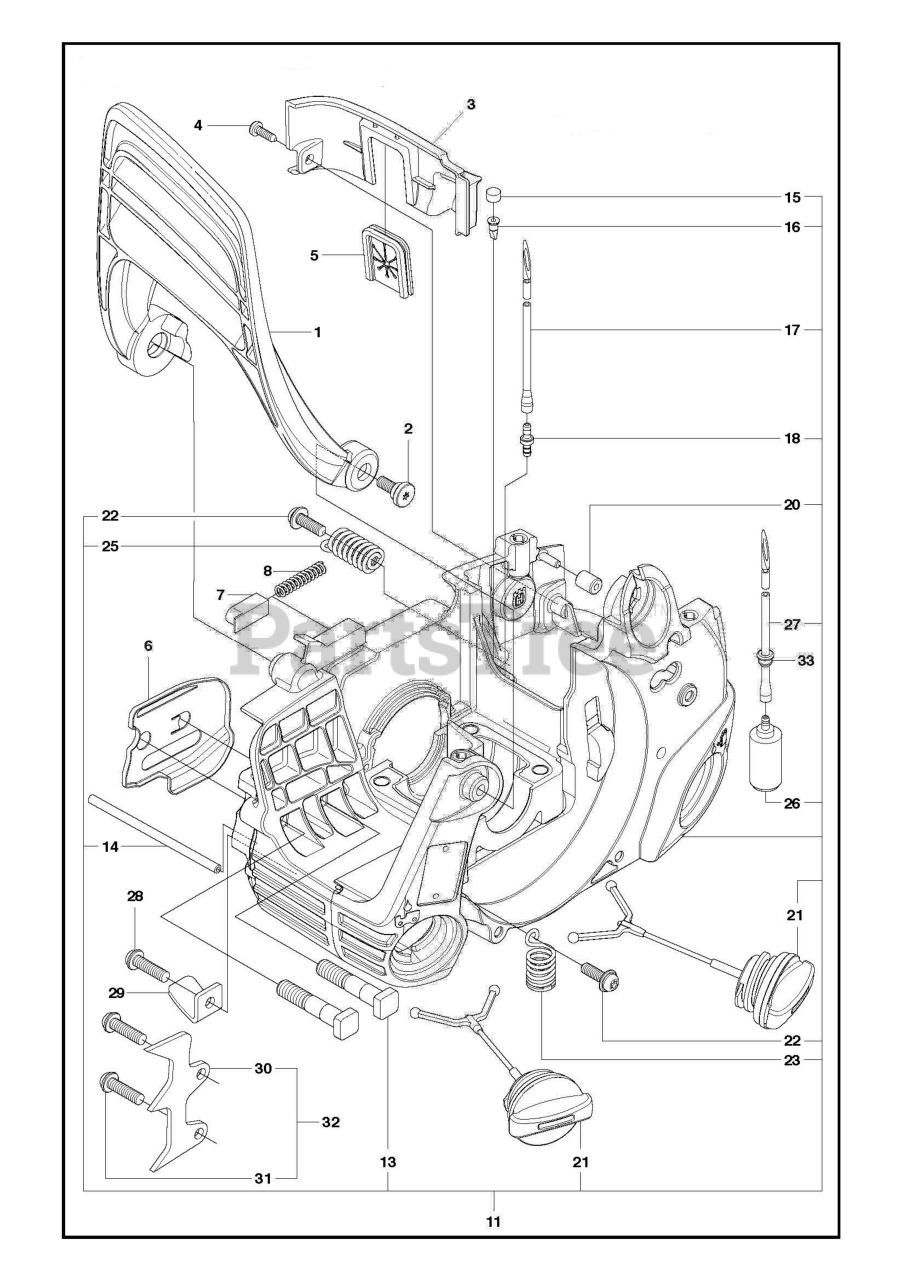

FUEL TANK & HANDLE Parts Diagram

  • Title

1

Husqvarna 577611901

HANDGUARD HHS

$15.99

$

In Stock, Qty 14

0

2

Husqvarna 545127301

BOSS SCREW

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 545061201

REAR WALL

$12.99

$

Usually ships in 3-10 days

0

4

Husqvarna 545227101

SCREW 6-19X.437

$4.99

$

In Stock, Qty 6

0

5

Husqvarna 545075401

GROMMET

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 545071401

PLATE BAR

$4.99

$

In Stock, only 4 left!

0

7

Husqvarna 545071301

CAP, SPRING HANDGUARD

$6.49

$

In Stock, Qty 10

0

8

Husqvarna 545071201

SPRING

$4.99

$

In Stock, Qty 10

0

11

Husqvarna 579665201

ASSY CHASSIS HUSQ ORANGE

$

$

Not available

13

Husqvarna 529310301

BOLT

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 545033501

OIL TUBE

$6.49

$

In Stock, Qty 7

0

15

Husqvarna 530029868

VENT,FUEL TANK 36/41

$6.49

$

In Stock, Qty 13

0

16

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$4.49

$

In Stock, Qty 14

0

17

Husqvarna 580727101

KIT FUEL LINE

$17.99

$

Usually ships in 3-10 days

0

18

Husqvarna 530023877

FUEL LINE FITTING

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 545061901

ISOLATOR FILTER HOUSING

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 544111201

TANK CAP ASSY
(Superseded to 544111203)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 530015906

SCREW,FRONT HBAR 36/41

$6.49

$

In Stock, Qty 9

0

23

Husqvarna 545033801

ISOLATOR

$10.99

$

In Stock, Qty 9

0

25

Husqvarna 545063101

SPRING

$11.99

$

In Stock, Qty 15

0

26

Husqvarna 577167201

ASSY FUEL PICKUP PRE FLUSHED

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 580727101

KIT FUEL LINE

$17.99

$

Usually ships in 3-10 days

0

28

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

29

Husqvarna 530029850

CHAIN CATCHER 36/41

$6.49

$

In Stock, Qty 20+

0

30

Husqvarna 530038990

SPIKE
(Superseded to 530014381)

$9.99

$

In Stock, Qty 16

0

31

Husqvarna 530016439

SCREW

$6.49

$

In Stock, only 1 left!

0

32

Husqvarna 530014381

SPIKE 36/41

$9.99

$

In Stock, Qty 16

0

33

Husqvarna 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$6.99

$

In Stock, Qty 20+

0
