120 Mark II - Husqvarna Chainsaw FUEL TANK & HANDLE Parts Diagram

Chainsaw

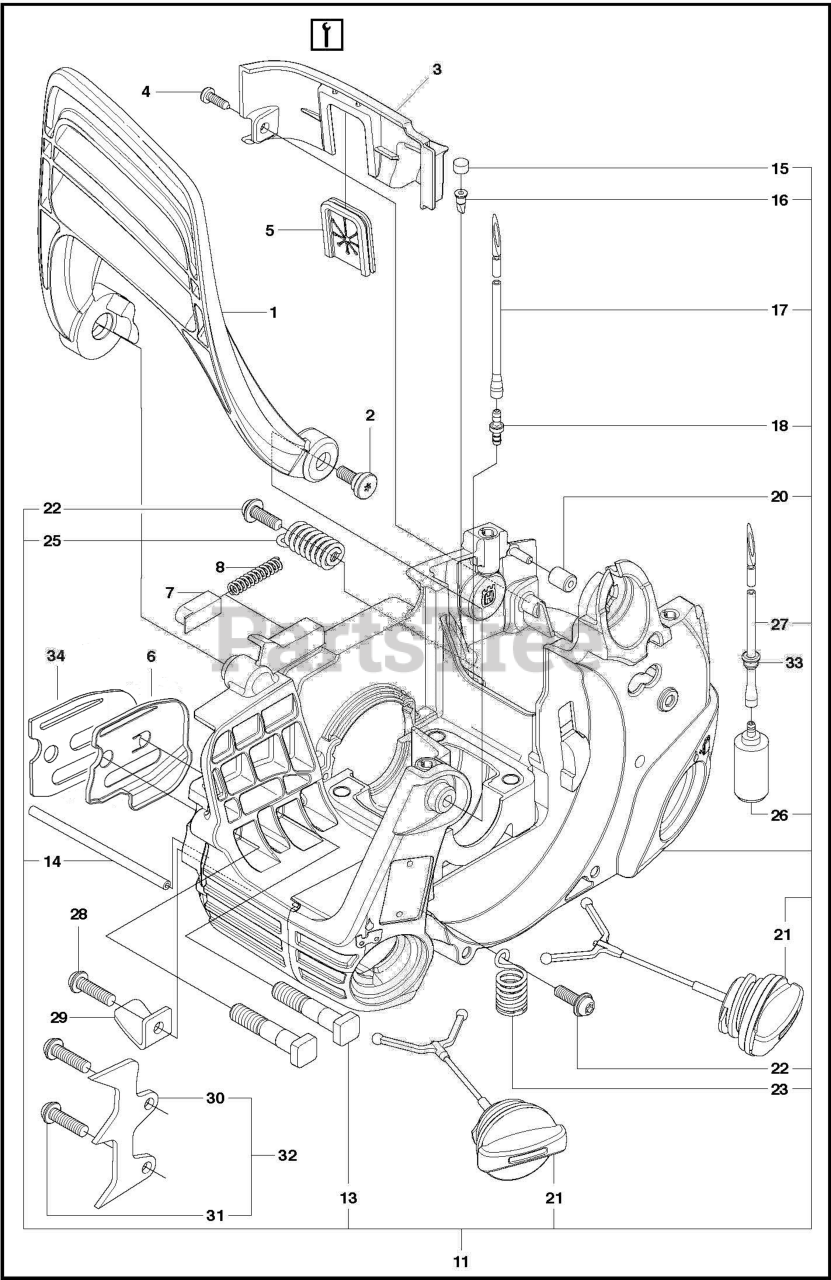

FUEL TANK & HANDLE Parts Diagram

  • Title

23

Husqvarna 545033801

ISOLATOR

Note: ISOLATOR ASSY FRONT

$9.49

$

In Stock, only 2 left!

0

29

Husqvarna 530029850

CHAIN CATCHER 36/41

Note: CHAIN CATCHER

$6.99

$

In Stock, only 1 left!

0

31

Husqvarna 530016439

SCREW

Note: SCREW

$3.49

$

Usually ships in 3-10 days

0

32

Husqvarna 530014381

SPIKE 36/41

Note: FELLING DOG KIT SPIKE ASSEMBLY

$9.49

$

In Stock, Qty 7

0

5

Husqvarna 545075401

GROMMET

Note: GROMMET REAR WALL

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 545227101

SCREW 6-19X.437

Note: SCREW

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 579665203

Chassis
(Superseded to 579665204)

Note: For 967861912, 967861934, 967861936

$102.99

$

Usually ships in 3-10 days

0

13

Husqvarna 529310301

BOLT
(Superseded to 529310302)

Note: BOLT M8 X 1.25

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 530038990

SPIKE
(Superseded to 530014381)

Note: FELLING DOG

$9.49

$

In Stock, Qty 7

0

33

Husqvarna 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

Note: For 967861912, 967861934, 967861936

$1.49

$

In Stock, Qty 20+

0

21

Husqvarna 544111203

ASSY TANK CAP GREY
(Superseded to 544111201)

Note: TANK CAP ASSY GREY

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 577167201

ASSY FUEL PICKUP PRE FLUSHED

Note: ASSEMBLY FUEL PICKUP PRE FLUSHED

$7.99

$

In Stock, Qty 16

0

14

Husqvarna 545033501

OIL TUBE

Note: HOSE

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 587026801

CHASSIS ASSEMBLY, P021, MACH.
(Superseded to 587026804)

Note: For all EXCEPT For 967861912, 967861934, 967861936. CHASSIS ASSEMBLY MACH. BEARING.

$102.99

$

Usually ships in 3-10 days

0

6

Husqvarna 545071401

PLATE BAR

Note: BAR PLATE MOUNTING

$5.99

$

In Stock, Qty 8

0

3

Husqvarna 545061201

REAR WALL

Note: REAR WHEEL

$9.49

$

Usually ships in 3-10 days

0

25

Husqvarna 545063101

SPRING

Note: For all EXCEPT For 967861912, 967861934, 967861936. SPRING REAR ISOLATOR.

$9.49

$

In Stock, Qty 9

0

8

Husqvarna 545071201

SPRING

Note: SPRING. HANDGUARD POSITION

$4.99

$

In Stock, only 3 left!

0

2

Husqvarna 545127301

BOSS SCREW

Note: BOSS SCREW HANDGUARD

$3.49

$

In Stock, Qty 10

0

25

Husqvarna 577540601

SPRING REAR HANDLE ISOLATOR 96

Note: For 967861912, 967861934, 967861936

$6.99

$

Usually ships in 3-10 days

0

1

Husqvarna 577611901

HANDGUARD HHS
(Superseded to 577611902)

Note: HAND GUARD ASSY HHS

$17.99

$

Usually ships in 3-10 days

0

17

Husqvarna 580727101

KIT FUEL LINE

Note: FUEL HOSE KIT LP100 5.3 O.D.

$17.99

$

In Stock, Qty 10

0

16

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

Note: CHECK VALVE DUCKBILL

$5.99

$

In Stock, Qty 20+

0

20

Husqvarna 545061901

ISOLATOR FILTER HOUSING

Note: ISOLATOR FILTER HOUSING

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 530015814

SCREW

Note: SCREW PT 60/10-14

$3.49

$

In Stock, only 3 left!

0

18

Husqvarna 530023877

FUEL LINE FITTING

Note: NIPPLE FITTING - FUEL LINE

$5.99

$

In Stock, Qty 20+

0

22

Husqvarna 530015906

SCREW,FRONT HBAR 36/41

Note: SCREW

$3.49

$

In Stock, Qty 14

0

7

Husqvarna 545071301

CAP, SPRING HANDGUARD

Note: CAP. SPRING HANDGUARD

$4.99

$

In Stock, only 3 left!

0

33

Husqvarna 580457501

GROMMET FUEL LINE

Note: For all EXCEPT For 967861912, 967861934, 967861936. GROMMET FUEL LINE.

$1.49

$

In Stock, Qty 20+

0

34

Husqvarna 592969801

Spacers

Note: SPACER PLATE

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 530029868

VENT,FUEL TANK 36/41

Note: PLUG

$5.99

$

In Stock, only 3 left!

0

27

Husqvarna 580727101

KIT FUEL LINE

Note: FUEL HOSE KIT LP100 5.3 O.D.

$17.99

$

In Stock, Qty 10

0
