120 R (21B-120R000) - Yard Machines Tiller (2002) Engine Parts Parts Diagram

Tiller

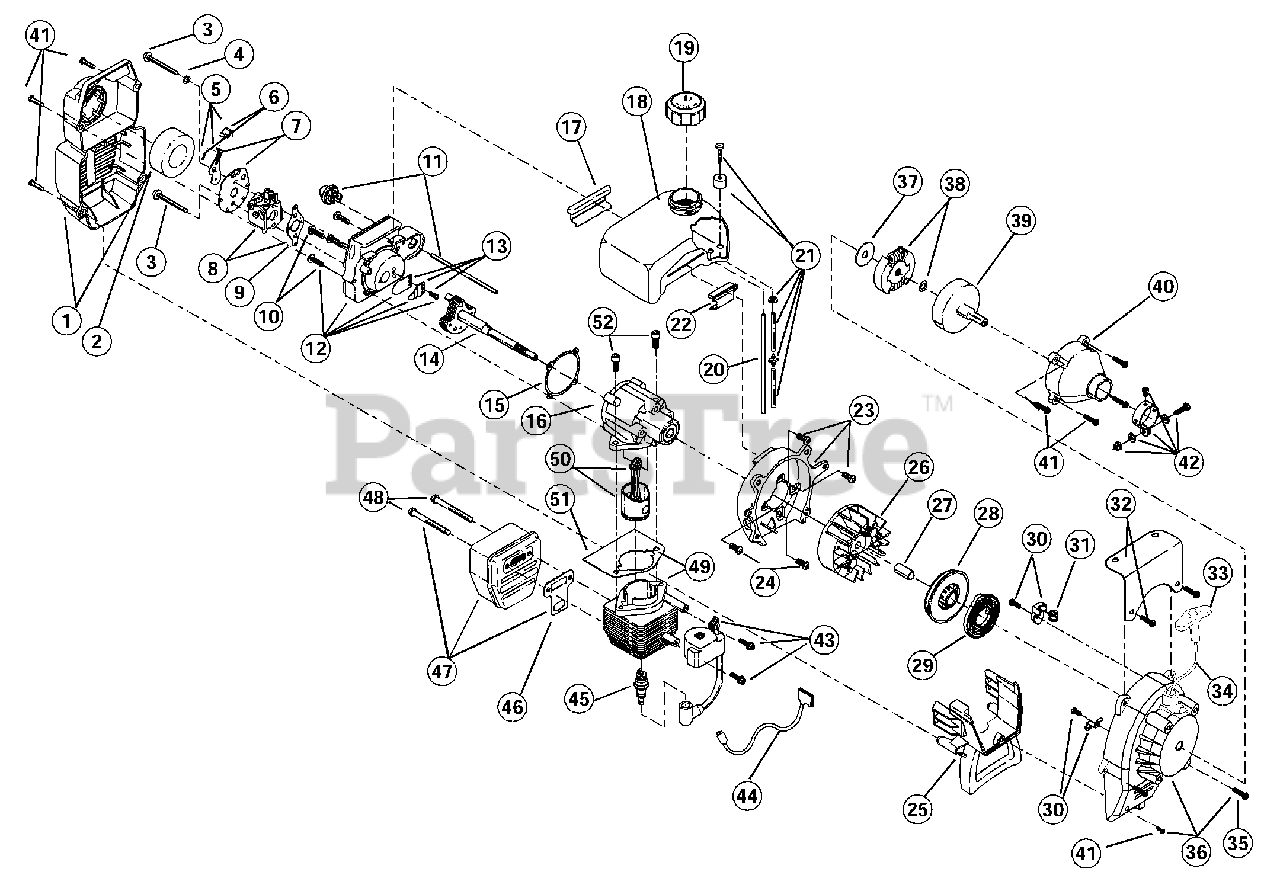

Engine Parts Parts Diagram

  • Title

1

MTD 791-182059

Air Cleaner/Muffler Cover Assembly
(Superseded to 753-04511)

Note: (includes 2 & 41)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350

Air Cleaner Filter
(Superseded to 791-180350B)

$9.49

$

In Stock, Qty 9

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 12

0

5

MTD 791-182160

Choke Lever Assembly
(Superseded to 753-04418)

Note: (includes 6)

$10.99

$

Usually ships in 3-6 days

0

6

MTD 791-182161

Choke Knob and Screw
(Superseded to 791-182202)

$14.99

$

Usually ships in 3-6 days

0

7

MTD 791-182162

Choke Lever and Plate
(Superseded to 753-04419)

Note: (includes 4 & 5)

$

$

Not available

8

MTD 791-182875

Carburetor Assembly

Note: (includes 9 & 21)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-181801

Primer and Hose Assembly
(Superseded to 791-683974B)

$21.99

$

In Stock, Qty 20+

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10 & 15)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 791-182790

Power Shaft Assembly

$

$

Not available

15

MTD 753-1208

Carburetor Mount Gasket

$15.99

$

In Stock, only 3 left!

0

16

MTD 791-182791

Crank Case Service Assembly

Note: (includes 10, 14 & 24)

$

$

Not available

17

MTD 791-612134

Rear Mounting Pad

$

$

Not available

18

MTD 753-04306

Fuel Tank Assembly

Note: (includes 19-21)

$

$

Not available

19

MTD 753-04084

Fuel Cap Assembly

$21.99

$

Usually ships in 3-6 days

0

20

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$6.99

$

In Stock, Qty 20+

0

21

MTD 791-682039

Fuel Line Assembly

$15.99

$

In Stock, Qty 20+

0

22

MTD 791-145308

Front Mounting Pad

$

$

Not available

23

MTD 791-683065

Shroud Assembly

$

$

Not available

24

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

25

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

26

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

27

MTD 791-181065

Spacer

$

$

Not available

28

MTD 753-04232

Recoil Pulley Assembly

$

$

Not available

29

MTD 791-613102

Recoil Spring

$24.99

$

Usually ships in 3-6 days

0

30

MTD 791-181441

Pulley Retainer Assembly

$

$

Not available

31

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

32

MTD 791-180317

Fuel Tank Guard Assembly

$

$

Not available

33

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

34

MTD 791-613103

Rope

$9.99

$

In Stock, only 4 left!

0

35

MTD 791-181912

Housing Screw

$6.49

$

Usually ships in 3-6 days

0

36

MTD 791-182776

Starter Housing Assembly

Note: (includes items 28-31, 33-35 & 41)

$

$

Not available

37

MTD 791-182368

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, Qty 8

0

38

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$23.99

$

In Stock, Qty 20+

0

39

MTD 791-153592

Clutch Drum Assembly

$48.99

$

In Stock, Qty 15

0

40

MTD 791-180098

Clutch Cover Assembly

Note: (includes 41)

$32.99

$

In Stock, only 1 left!

0

41

MTD 791-181345

Clutch Cover Screw

$3.99

$

In Stock, Qty 18

0

42

MTD 791-153597

Upper Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

43

MTD 791-181937

Module Assembly
(Superseded to 753-04125)

$

$

Not available

44

MTD 791-181580

Wire Lead

$

$

Not available

45

MTD 791-610311

Spark Plug
(Superseded to 791-610311B)

$13.99

$

In Stock, Qty 8

0

46

MTD 753-04159

Exhaust Gasket
(Superseded to 753-04619)

$8.49

$

In Stock, only 3 left!

0

47

MTD 791-182174

Muffler Assembly

Note: (includes 46 & 48)

$82.99

$

Usually ships in 3-6 days

0

48

MTD 791-182464

Muffler Mounting Bolt Assembly
(Superseded to 791-147575)

$

$

Not available

49

MTD 753-1206

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 51 & 52)

$78.99

$

In Stock, only 1 left!

0

50

MTD 753-1207

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

51

MTD 753-1197

Cylinder Gasket

$

$

Not available

52

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

MTD 753-04134

Engine Gasket Kit

Note: not shown

$

$

Not available

MTD 791-180090

O.E.M. Carburetor Repair Kit

Note: not shown

$55.99

$

Usually ships in 3-6 days

0

MTD 791-180091

Gasket-Diaphragm Repair Kit

Note: not shown

$30.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring

Note: not shown

$49.99

$

Usually ships in 3-6 days

0

MTD 753-1210

Short Block Assembly

Note: (includes 10, 24, 14, 15, 45, 49-52); not shown

$

$

Not available

MTD 791-181599

Clutch Springs (Qty. 2)

Note: not shown

$10.99

$

In Stock, only 1 left!

0
