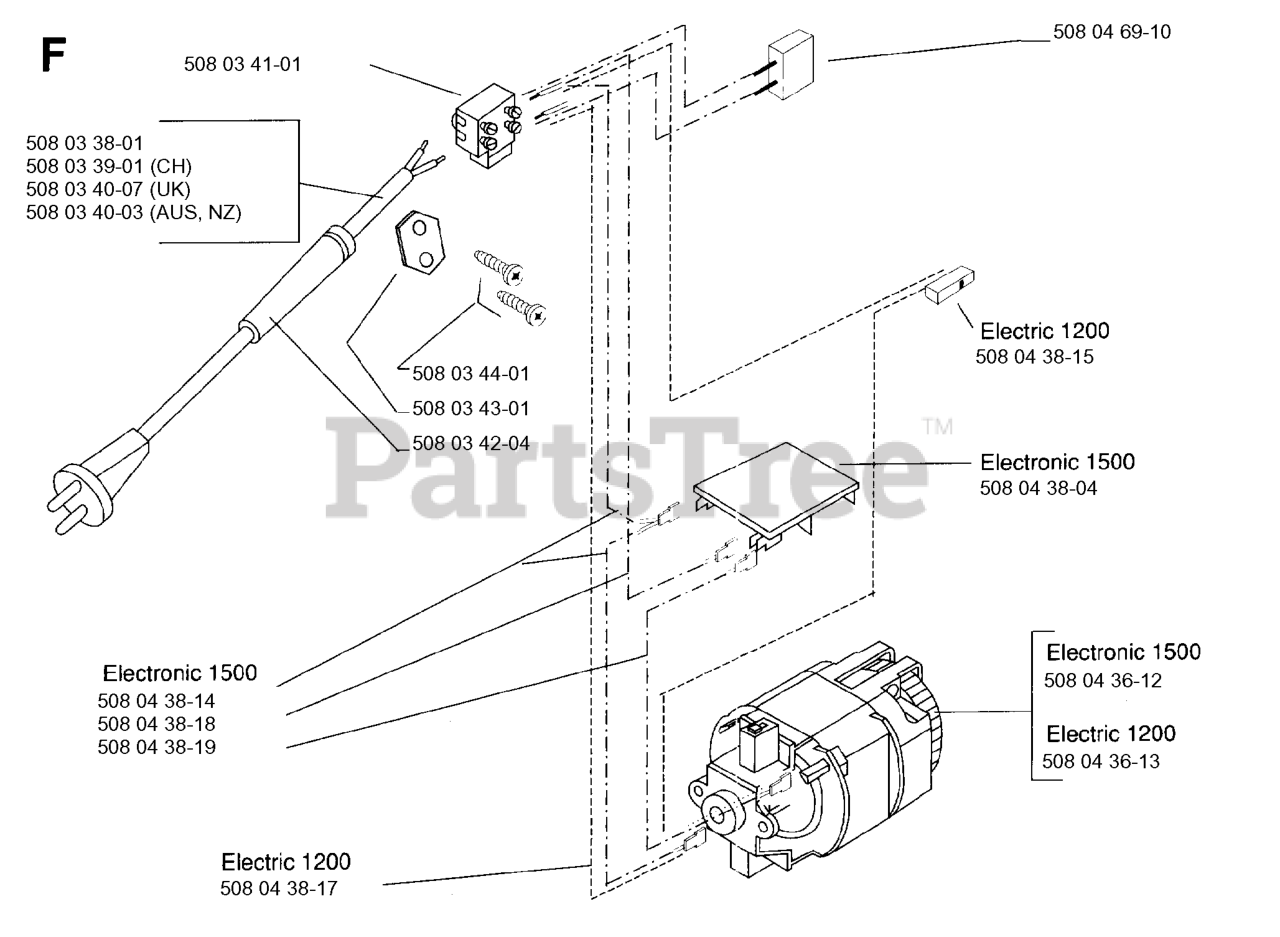

1200 - Husqvarna Chainsaw (1993-05) ELECTRICAL Parts Diagram

Chainsaw

ELECTRICAL Parts Diagram

  • Title

508 03 41-01

Husqvarna 508034101

SWITCH W/ CATCH
(Superseded to 508034103)

$20.99

$

In Stock, only 1 left!

0

508 03 38-01

Husqvarna 508033801

CABLE W/ PLUG

$

$

Not available

508 03 39-01

Husqvarna 508033901

CABLE W/ PLUG NLA

Note: CH

$

$

Not available

508 03 40-07

Husqvarna 508034007

REPL BY 508 03 40-12
(Superseded to 508034015)

Note: UK

$125.99

$

In Stock, only 4 left!

0

508 03 40-03

Husqvarna 508034003

CABLE W/ PLUG

Note: AUS, NZ

$

$

Not available

508 04 38-14

Husqvarna 508043814

LEAD

Note: ELECTRONIC 1500

$

$

Not available

508 04 38-18

Husqvarna 508043818

LEAD

$

$

Not available

508 04 38-19

Husqvarna 508043819

LEAD

$

$

Not available

508 04 38-17

Husqvarna 508043817

LEAD

Note: ELECTRIC 1200

$

$

Not available

508 03 42-04

Husqvarna 508034204

SLEEVE

$

$

Not available

508 03 43-01

Husqvarna 508034301

CABLE CLAMP

$

$

Not available

508 03 44-01

Husqvarna 508034401

SCREW

$

$

Not available

508 04 36-13

Husqvarna 508043613

REPL BY 508 04 36-27
(Superseded to 508043627)

Note: ELECTRIC 1200

$

$

Not available

508 04 36-12

Husqvarna 508043612

REPL BY 508 04 36-25
(Superseded to 508043625)

Note: ELECTRONIC 1500

$

$

Not available

508 04 38-04

Husqvarna 508043804

REPL BY 508 04 38-35
(Superseded to 508043848)

Note: ELECTRONIC 1500

$

$

Not available

508 04 38-15

Husqvarna 508043815

MICRO SWITCH
(Superseded to 508043851)

Note: ELECTRIC 1200

$

$

Not available

508 04 69-10

Husqvarna 508046910

CAPACITOR
(Superseded to 508046914)

$

$

Not available
