12001 C - Troy-Bilt Mini-Tiller (SN: 12001C0300101 & Above) MAIN ASSEMBLY Parts Diagram

Mini-Tiller

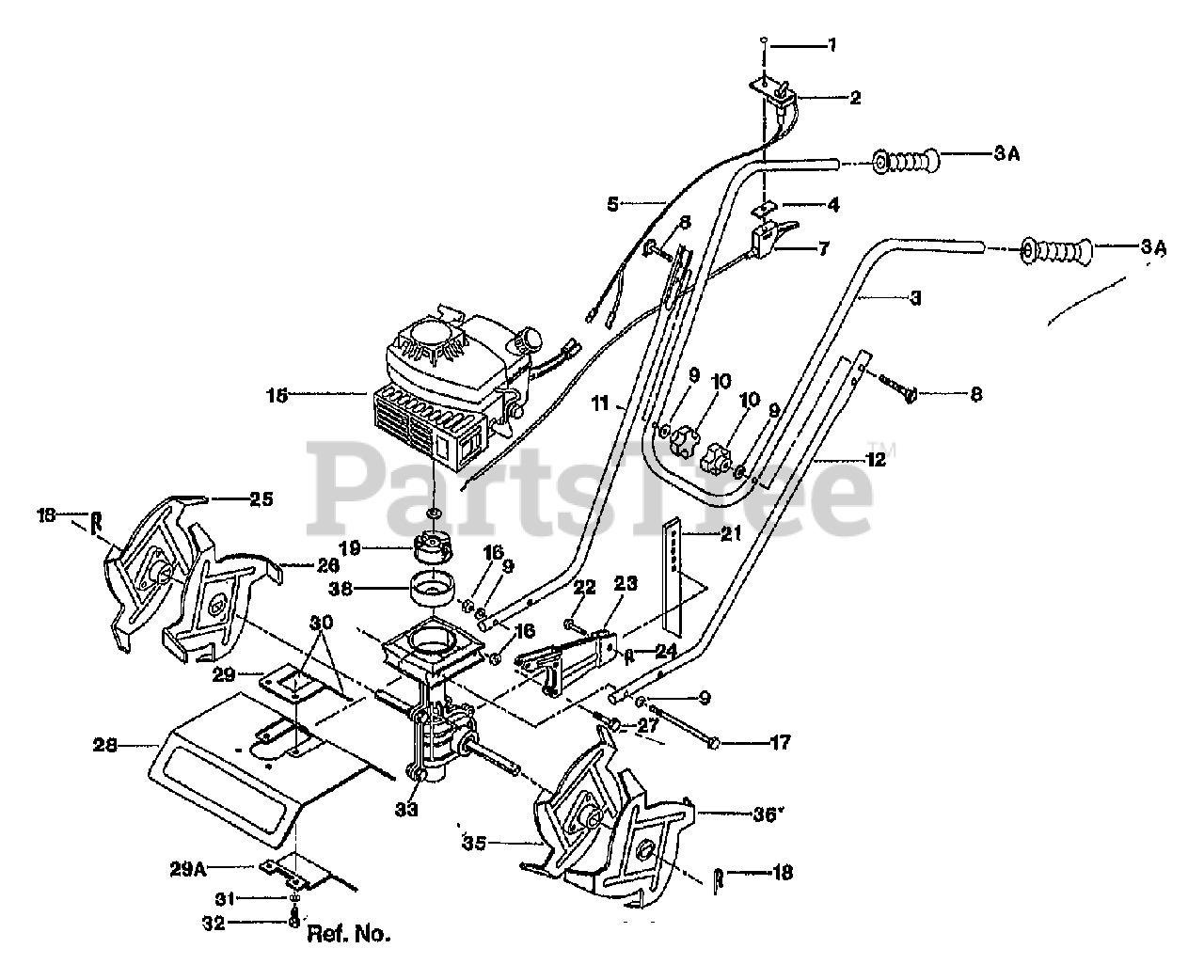

MAIN ASSEMBLY Parts Diagram

  • Title

1

MTD 1750608

SCR-PHD PHIL #10-16X1.5

$

$

Not available

2

Troy-Bilt 1983718

SWITCH-IGN. 96506

$

$

Not available

Troy-Bilt 1981012001

BRKT-SWITCH PNT

$

$

Not available

3

MTD 1981046

ASSM-UPR HANDLEBAR

$

$

Not available

3A

MTD 1983728

GRIP-HANDLEBAR 97030

$

$

Not available

4

MTD 1983649

PAD-ISOLATOR TRIGGER

$

$

Not available

5

MTD 1909812

HARNESS-WIRE ASSM

$

$

Not available

?6

0

REF. NO. NOT USED

$

$

Not available

7

MTD 1986201

ASSM-THROTTLE CONTROL

$

$

Not available

8

Troy-Bilt 1731025

SCR-CURVED HD 5/16-18X2.0
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

10

MTD 1763767

KNOB

$

$

Not available

11

MTD 1984509001

H/BAR-LWR RIGHT PNT

$

$

Not available

12

MTD 1984510001

H/BAR-LWR LEFT PNT

$

$

Not available

?13

Troy-Bilt 1187293

WASHER-.44X.187X.05

$

$

Currently unavailable

?14

MTD 1983661

SCR-HH M8-32X1.0

$

$

Not available

15

0

ENGINE, TECUMSEH TEC-200-2106

$

$

Not available

16

Troy-Bilt 1817146

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

17

MTD 1983663

SCR-HH 1/4-20X5

$

$

Not available

18

Troy-Bilt 1185590

PIN-HITCH .149DIA

$4.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 1909487

ASSM-CLUTCH ROTOR W/WASHER
(Superseded to 1909487P)

$61.99

$

Usually ships in 3-6 days

0

?20

0

REF. NO. NOT USED

$

$

Not available

21

MTD 1981014001

DRAGSTAKE-PNT

$

$

Not available

22

MTD 1983723

PIN-CLEVIS

$

$

Not available

23

MTD 1981010001

BRKT-WHEEL ASSM PNT

$

$

Not available

24

Troy-Bilt 1703011

CLIP-HAIRPIN .07 DIA
(Superseded to 914-0145)

$4.49

$

In Stock, Qty 20+

0

25

MTD 1984430

ASSM-TINE OUTER RH

$

$

Not available

26

Troy-Bilt 1984429

ASSM-TINE INNER RH

$

$

Currently unavailable

27

MTD 1983658

SCR 1/4-20X1.125 (DRAG STAKE TO TRANSMISSION)

$

$

Not available

28

Troy-Bilt 1904124

SHIELD-TINE W/DECALS

$

$

Currently unavailable

29

MTD 1981022010

HOOD-FILL PIECE MINI PNT

$

$

Not available

29A

MTD 1981018010

SHIELD-ROCK PNT

$

$

Not available

30

MTD 1983662

SCR M10-32X.375 SELF-TAPPING (FOR REAR TIME COVER PLATE)

$

$

Not available

31

Troy-Bilt 1100241

WASHER-LK .25
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

32

MTD 1100807

SCR-HH 1/4-20X2.0 G5

$

$

Not available

33

Troy-Bilt 1111600

SCR-HH 1/4-20 X .875 G5
(Superseded to 710-0206)

$4.49

$

Usually ships in 3-6 days

0

?34

0

REF. NO. NOT USED

$

$

Not available

35

Troy-Bilt 1984427

ASSM-TINE INNER LH

$

$

Currently unavailable

36

Troy-Bilt 1984428

ASSM-TINE OUTER LH

$

$

Currently unavailable

?37

0

REF. NO. NOT USED

$

$

Not available

38

Troy-Bilt 1909486

ASSM-CLUTCH & DRUM

$53.99

$

Usually ships in 3-6 days

0
