12001 C - Troy-Bilt Mini-Tiller (SN: 12001C0300101 & Above) TRANSMISSION Parts Diagram

Mini-Tiller

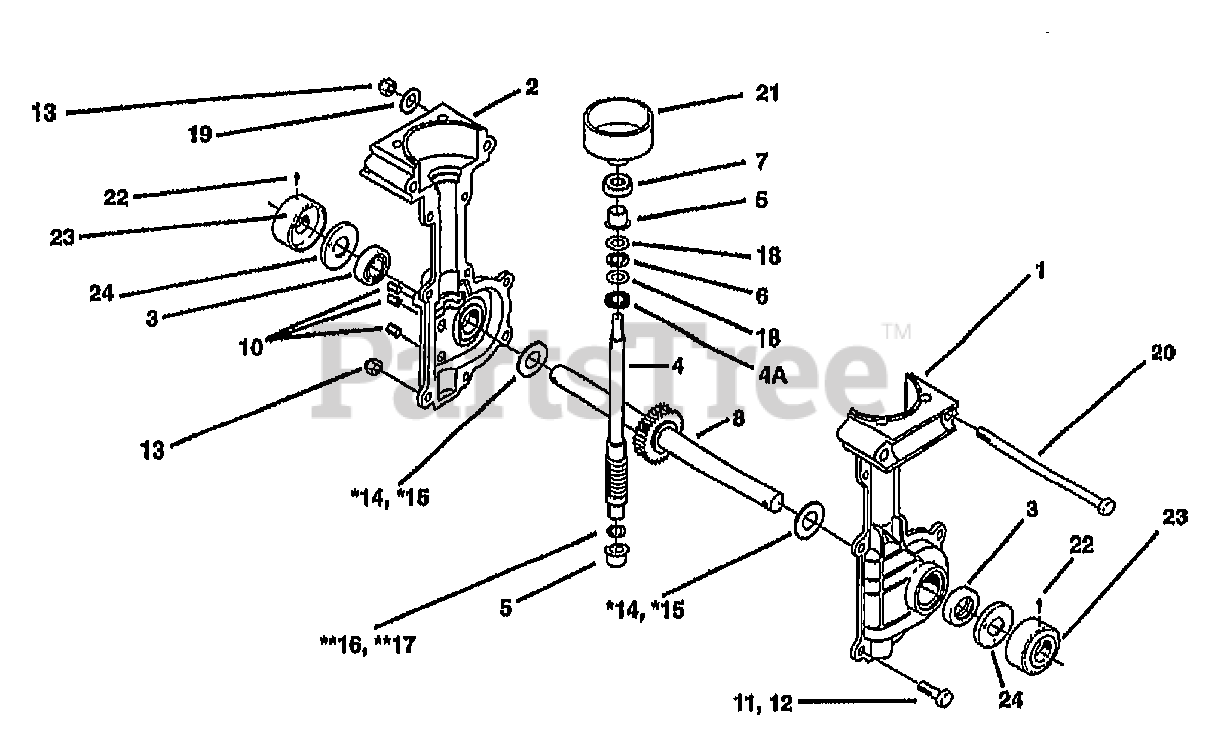

TRANSMISSION Parts Diagram

  • Title

1

Troy-Bilt 1915039

ASSM-TRANS CASE LEFT

$

$

Not available

2

MTD 1915040

ASSM-TRANS CASE RIGHT

$

$

Not available

3

Troy-Bilt 1983632

SEAL-PINION SHAFT PT/85030/00
(Superseded to 921-04044)

$8.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1983634

SHAFT-WORM PT/85032/00
(Superseded to 1918307)

$57.99

$

Usually ships in 3-6 days

0

4A

MTD 1909923

SEAL-OIL INPUT SHAFT
(Superseded to 921-04032)

$

$

Not available

5

Troy-Bilt 1983731

BEARING-INPUT

$11.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1983636

BEARING-THRUST PT/85034/00
(Superseded to 741-04052)

$

$

Not available

7

Troy-Bilt 1983637

BEARING-BALL PT/85035/00

$35.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1981052

ASSM-SHAFT OUTPUT AS/85037/00

$

$

Not available

?9

0

REF. NO. NOT USED

$

$

Not available

10

Troy-Bilt 1185741

PLUG-PIPE 1/8 NPT
(Superseded to 737-04178)

$3.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1111600

SCR-HH 1/4-20 X .875
(Superseded to 710-0206)

$4.49

$

Usually ships in 3-6 days

0

12

MTD 1983658

SCR 1/4-20X1.125

$

$

Not available

13

Troy-Bilt 1817146

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

14

MTD 1983635

WASHER-THRUST .775X.05 (.050")

$

$

Not available

15

MTD 1983635

WASHER-THRUST .775X.05 (.040")

$

$

Not available

16

Troy-Bilt 1983641

WASHER-THRUST .505X.02 (.020")

$3.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 1983642

WASHER-.76X.5X.04 THRUST (.025")
(Superseded to 936-0616)

$4.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 1983638

WASHER-THRUST .92X.5X.06

$

$

Not available

19

Troy-Bilt 1100254

WASHER-.75X.312X.065 ZP
(Superseded to 936-0159)

$

$

Not available

20

MTD 1983663

SCR-HH 1/4-20X5

$

$

Not available

21

Troy-Bilt 1909486

ASSM-CLUTCH & DRUM

$53.99

$

Usually ships in 3-6 days

0

22

MTD 1983052

SCR M10-32X.25

$

$

Not available

23

Troy-Bilt 1904183

KIT-DUST CAP

$

$

Not available

24

Troy-Bilt 1983713

WASHER-FELT 1.5X.72X.13

$4.99

$

Usually ships in 3-6 days

0

MTD 1984529

DECAL-LOGO MINI-TILLER (ON FRONT LIP OF TINE COVER)

$

$

Not available

MTD 1983094

DECAL-CAUTION (ON REAR OF TINE COVER)

$

$

Not available

MTD 1983095

DECAL-WARNING (ON REAR OF TINE COVER)

$

$

Not available

MTD 1983096

DECAL-THROTTLE (ON RIGHT HANDLEBAR)

$

$

Not available

MTD 1983097

DECAL-ENGINE ON/OFF (ON RIGHT HANDLEBAR)

$

$

Not available

Troy-Bilt 1983648

SPACER-TINE 1.0X.8X1.31LG (INSTALL WHEN OUTER TINES ARE OFF FOR CULTIVATING)

$5.99

$

Usually ships in 3-6 days

0

MTD 1983647

CUP-MEASURING

$

$

Not available

Troy-Bilt 1982393

KIT-TINE REPLACE 85059 (INCL. 25,26,35,36)

$

$

Currently unavailable

Troy-Bilt 1909803

ASSM-TRANS (MINI TLR)
(Superseded to 986-04000)

$

$

Not available

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

MTD 1981053

KIT-TINE SPACER (INCL. TWO 1983648)

$

$

Not available
