12004 (1600) - Toro Twister Utility Vehicle (SN: 220000001 - 220999999) (2002) CARBURETOR AND FUEL PUMP ASSEMBLY Parts Diagram

Twister Utility Vehicle

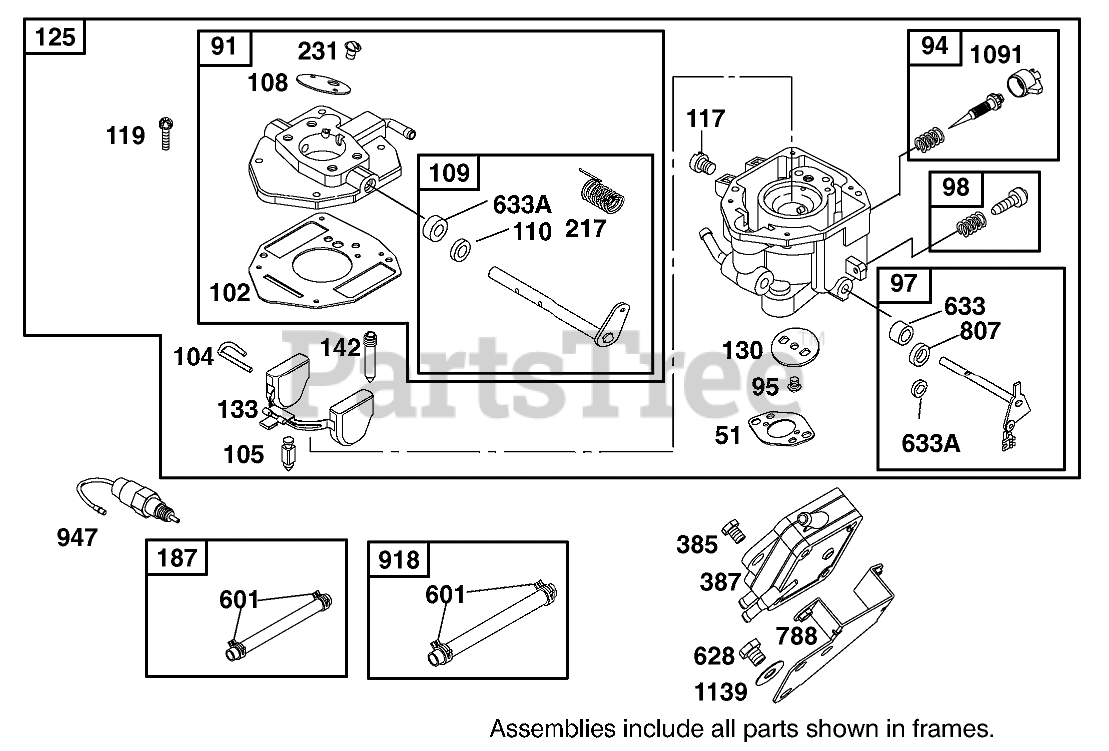

CARBURETOR AND FUEL PUMP ASSEMBLY Parts Diagram

  • Title

51

Briggs & Stratton 691694

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$2.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 691694

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$2.99

$

In Stock, Qty 20+

0

91

Briggs & Stratton 808964

Body-Carburetor, Upper

$205.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 808257

Idle Mixture Kit
(Superseded to 842870)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$44.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

Screw

$5.99

$

In Stock, only 1 left!

0

97

Briggs & Stratton 809007

Shaft-Throttle

$42.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 808177

Idle Speed Kit

$13.99

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 692077

Gasket-Body, Carburetor

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$25.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690723

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$9.49

$

In Stock, Qty 5

0

105

Briggs & Stratton 692078

Valve-Needle, Float
(Superseded to 808798)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Not available

108

Briggs & Stratton 690719

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 809062

Shaft-Choke
(Superseded to 845022)

$

$

Not available

110

Briggs & Stratton 806861

Washer

$4.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 806986

Jet-Main

$12.99

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 690720

Screw

$3.49

$

In Stock, only 2 left!

0

125

Briggs & Stratton 809092

Carburetor
(Superseded to 842107)

$347.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 690726

Valve-Throttle

$18.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 806961

Float-Carburetor
(Superseded to 844546)

$29.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 806987

Nozzle-Carburetor

$33.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 691050

Line-Fuel (Cut to Required Length)
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

217

Briggs & Stratton 806862

Spring-Return, Choke

$10.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 690718

Screw

$5.99

$

In Stock, only 1 left!

0

385

Briggs & Stratton 693169

Screw
(Superseded to 807084)

$3.49

$

In Stock, Qty 17

0

387

Briggs & Stratton 808656

Pump-Fuel
(Superseded to 597338)

$27.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

Clamp-Hose

$3.99

$

In Stock, Qty 7

0

628

Briggs & Stratton 806660

Screw

$3.99

$

In Stock, only 1 left!

0

633

Briggs & Stratton 806131

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.99

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 690722

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$15.99

$

In Stock, only 1 left!

0

788

Briggs & Stratton 691559

Bracket-Pump, Fuel

$24.99

$

In Stock, only 2 left!

0

807

Briggs & Stratton 805557

Collar-Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 393815

Line-Vacuum
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 692094

Solenoid-Fuel

$166.99

$

In Stock, only 1 left!

0

1091

Briggs & Stratton 691516

Cap-Limiter

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$8.49

$

Usually ships in 2-12 days

0

1139

Briggs & Stratton 806497

WASHER

$3.49

$

In Stock, Qty 6
