12004 TC (1600) - Toro Twister Utility Vehicle (SN: 220000001 - 220999999) (2002) Cylinder, Oil Filter and Dipstick Assembly Parts Diagram

Twister Utility Vehicle

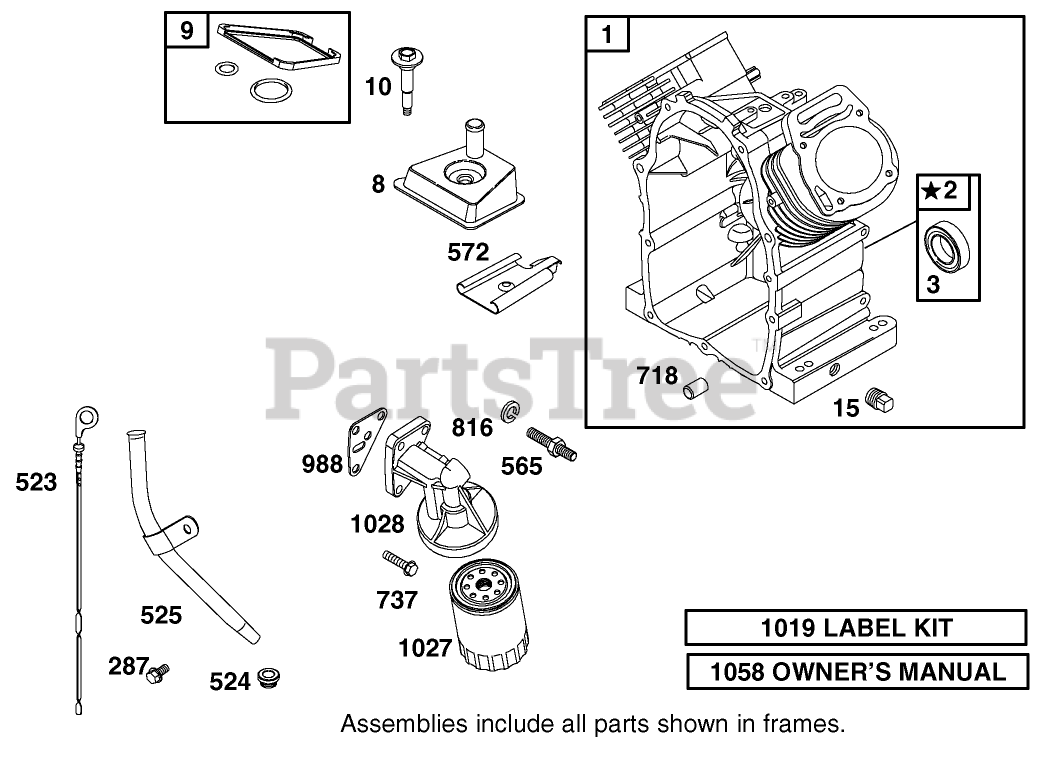

Cylinder, Oil Filter and Dipstick Assembly Parts Diagram

  • Title

1

Toro 692178

Cylinder ASM

$

$

Currently unavailable

2

Toro 808534

Bushing-Seal Kit

$

$

Currently unavailable

3

Toro 805101

Seal-Oil

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

8

Toro 808984

Breather ASM

$

$

Currently unavailable

9

Toro 807893

Breather Gasket

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

10

Toro 690751

Screw

$

$

Currently unavailable

15

Toro 690946

Plug-Drain, Oil

$8.99

$

Usually ships in 3-6 days

0

287

Toro 692062

Screw

$

$

Currently unavailable

523

Toro 693175

Dipstick

$

$

Currently unavailable

524

Toro 693172

Seal-Tube, Dipstick

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

525

Toro 693173

Tube-Dipstick

$

$

Currently unavailable

565

Toro 690682

Stud

$

$

Currently unavailable

572

Toro 690686

Baffle-Breather

$

$

Currently unavailable

718

Toro 690684

Pin-Locating

$

$

Currently unavailable

737

Toro 690679

Screw

$

$

Currently unavailable

816

Toro 690706

Washer

$

$

Currently unavailable

988

Toro 692063

Gasket-Adapter, Oil Filter

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

1019

Toro 808036

Label Kit

$

$

Currently unavailable

1027

Toro 492932

Filter-Oil

$

$

Currently unavailable

1028

Toro 808235

Adapter-Filter, Oil

$

$

Currently unavailable

1058

Toro 274790

Owner-s Manual(Emission Engines)

$

$

Currently unavailable
