1204 (148-610-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Piston and Rod (Engine S/N after 1729900003) Parts Diagram

Garden Tractor

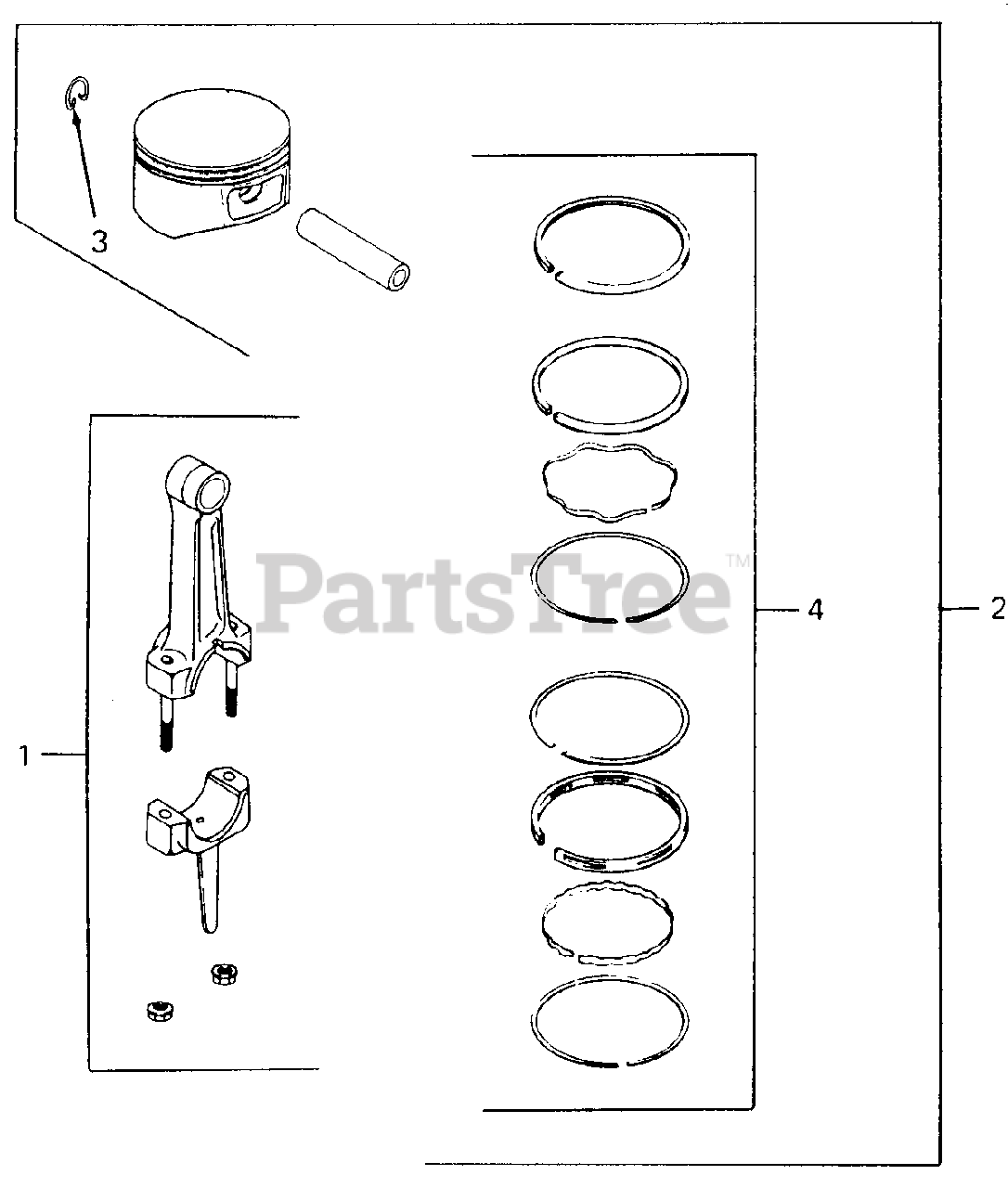

Piston and Rod (Engine S/N after 1729900003) Parts Diagram

  • Title

1

Cub Cadet KH-45-067-24

Connecting Rod (Std)

$

$

Not available

Cub Cadet KH-45-067-25

Connecting Rod (.010)

$

$

Not available

2

Cub Cadet KH-47-874-16

Piston w/Ring Set (Std)

Note: [Includes Ref No. 3 (Qty 2) & 4]

$

$

Not available

Cub Cadet KH-47-874-17

Piston w/Ring Set (.003)

$

$

Currently unavailable

Cub Cadet KH-47-874-18

Piston w/Ring Set (.010)

$

$

Not available

Cub Cadet KH-47-874-19

Piston w/Ring Set (.020)

$

$

Not available

Cub Cadet KH-47-874-20

Piston w/Ring Set (.030)

$

$

Not available

3

Cub Cadet KH-47-018-01

Retainer, Piston Pin

$

$

Not available

4

Cub Cadet KH-47-018-01

Ring Set (Std & .003)

$

$

Not available

Cub Cadet KH-47-108-02

Ring Set (.010)

$

$

Not available

Cub Cadet KH-47-108-03

Ring Set (.020)

$

$

Not available

Cub Cadet KH-47-108-04

Ring Set (.030)

$

$

Not available

Cub Cadet KH-47-522-96

Short Block

$

$

Not available

Cub Cadet KH-47-782-69

Miniblock

$

$

Not available

Cub Cadet KH-47-755-27

Gasket Set w/Seals

$

$

Not available

Cub Cadet KH-47-004-02

Gasket Set w/o Seals

$

$

Not available
