12061 - Troy-Bilt Tuffy Rear-Tine Tiller (SN: 120610100101 & Above) WHEEL & TILLER SHAFT ASSEMBLY Parts Diagram

Tuffy Rear-Tine Tiller

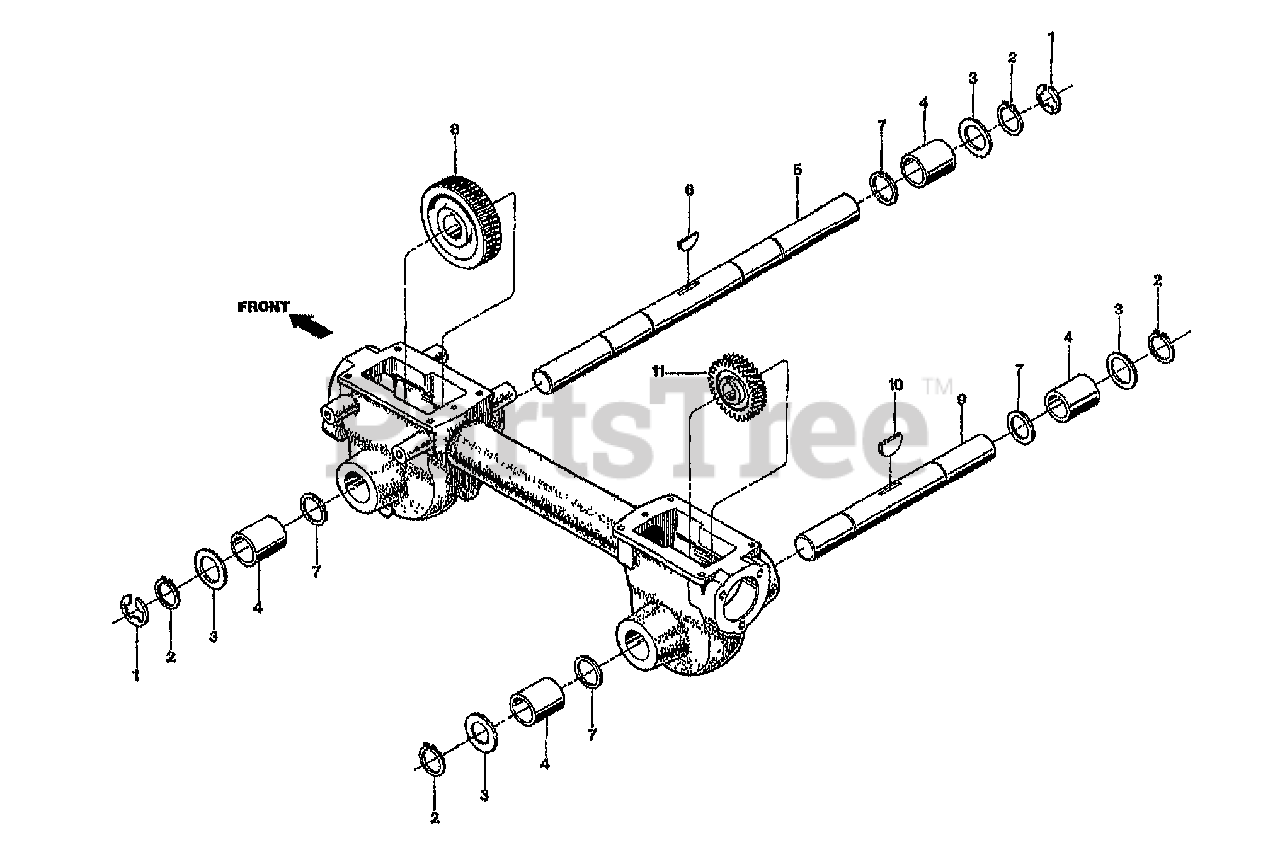

WHEEL & TILLER SHAFT ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 9512

RING-RETAINING 5133-989
(Superseded to GW-9512)

$3.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 9511

RING-HEAVY EXT .906 ID
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1166-1

SHIM-1.375X1.015X.062
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1166-2

SHIM-1.375X1.015X.03
(Superseded to 736-04260)

$7.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1166-3

SHIM-1.375X1.015X.015
(Superseded to 736-04259)

$7.49

$

In Stock, Qty 18

0

3

Troy-Bilt 1166-4

SHIM-1.375X1.015X.01
(Superseded to 736-04258)

$4.49

$

In Stock, Qty 6

0

3

Troy-Bilt 1166-5

SHIM-1.375X1.015X.005
(Superseded to 736-04257)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 1086

BUSHING-1.25X1.005X1.5
(Superseded to 941-04300)

$17.99

$

In Stock, Qty 16

0

5

Troy-Bilt 55004

SHAFT-WHEEL MACH
(Superseded to 753-05576)

$

$

Not available

6

Troy-Bilt 9305

KEY-HI PRO .25X1.062
(Superseded to 714-04059)

$7.49

$

In Stock, only 4 left!

0

7

Troy-Bilt 1132-2

SHIM-1.234X1.015X.062
(Superseded to 736-04310)

$4.99

$

In Stock, Qty 18

0

8

Troy-Bilt 50041

GEAR-WORM 61 TEETH MACH

$

$

Currently unavailable

9

Troy-Bilt 55006

SHAFT-TILLER MACH

$

$

Currently unavailable

9

Troy-Bilt 1915074

SHAFT-TUFFY TLR MACH {12155}
(Superseded to 911-04078)

$150.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1104

KEY-WOODRUFF .25X1.12
(Superseded to GW-1104)

$10.99

$

In Stock, Qty 18

0

11

MTD 50042

GEAR-WORM BRONZE MACH

$

$

Not available

11

Troy-Bilt 1904279

GEAR-WORM TINE MACH {12155}
(Superseded to 917-04383)

$162.99

$

In Stock, only 2 left!

0

Troy-Bilt 1360A

OIL (1901964)

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable
