1208 (131-552F100) - Cub Cadet Rear-Engine Riding Mower (1991) Electrical System For Lawn Tractors Parts Diagram

Rear-Engine Riding Mower

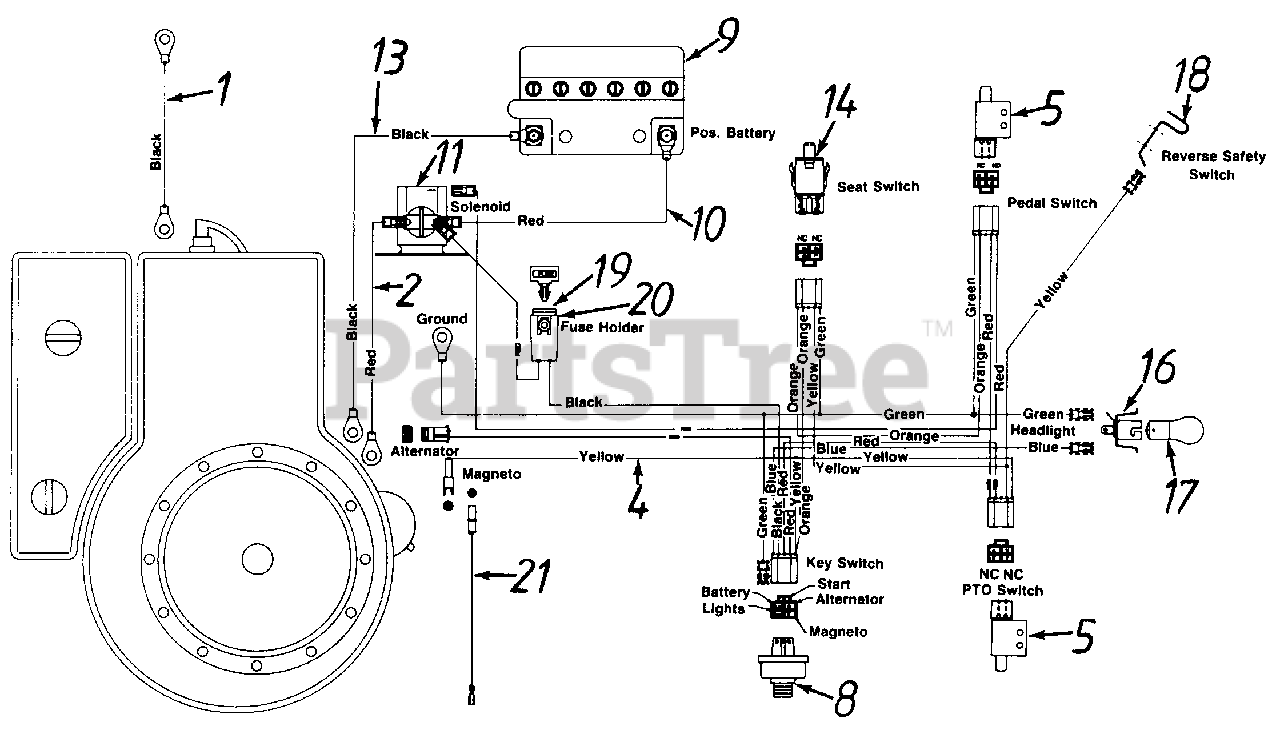

Electrical System For Lawn Tractors Parts Diagram

  • Title
1

Cub Cadet 725-0977

Elec. Wire 8 Ga. x 9.0" Lg.

$

$

Not available

2

Cub Cadet 725-0424

Elec. Wire

$

$

Not available

4

Cub Cadet 725-3175

Wire Harness

$

$

Not available

5

Cub Cadet 725-3169

Safety Switch
(Superseded to 925-04039)

$22.99

$

In Stock, Qty 20+

0

Cub Cadet 731-0757

Convoluted Tubing 29" Lg.

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 725-3163

Ignition Switch
(Superseded to 925-3163)

$44.99

$

In Stock, Qty 20+

0

9

Cub Cadet 725-0514A

Battery 12V
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 725-0929

Elec. Wire Red w/Boot

$

$

Not available

11

Cub Cadet 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

13

Cub Cadet 725-0979

Elec. Wire 8 Ga. x 17" Lg.

$

$

Not available

14

Cub Cadet 725-1441

Seat Switch

$

$

Not available

16

Cub Cadet 725-1058A

Headlight Socket
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 7

0

17

Cub Cadet 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

18

Cub Cadet 725-1303

Safety Switch
(Superseded to 925-1303)

$5.99

$

In Stock, Qty 8

0

19

Cub Cadet 725-1625

Fuse, Automotive Type 7-1/2 Amp.

$7.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 729-0207

Fuse Holder

$

$

Not available

Cub Cadet 729-0209

Fuse Holder Mtg. Clip

Note: (Not Shown)

$

$

Not available

21

UNKNOWN

$

$

Not available
