1208 - Weed Eater String Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

String Trimmer, Electric

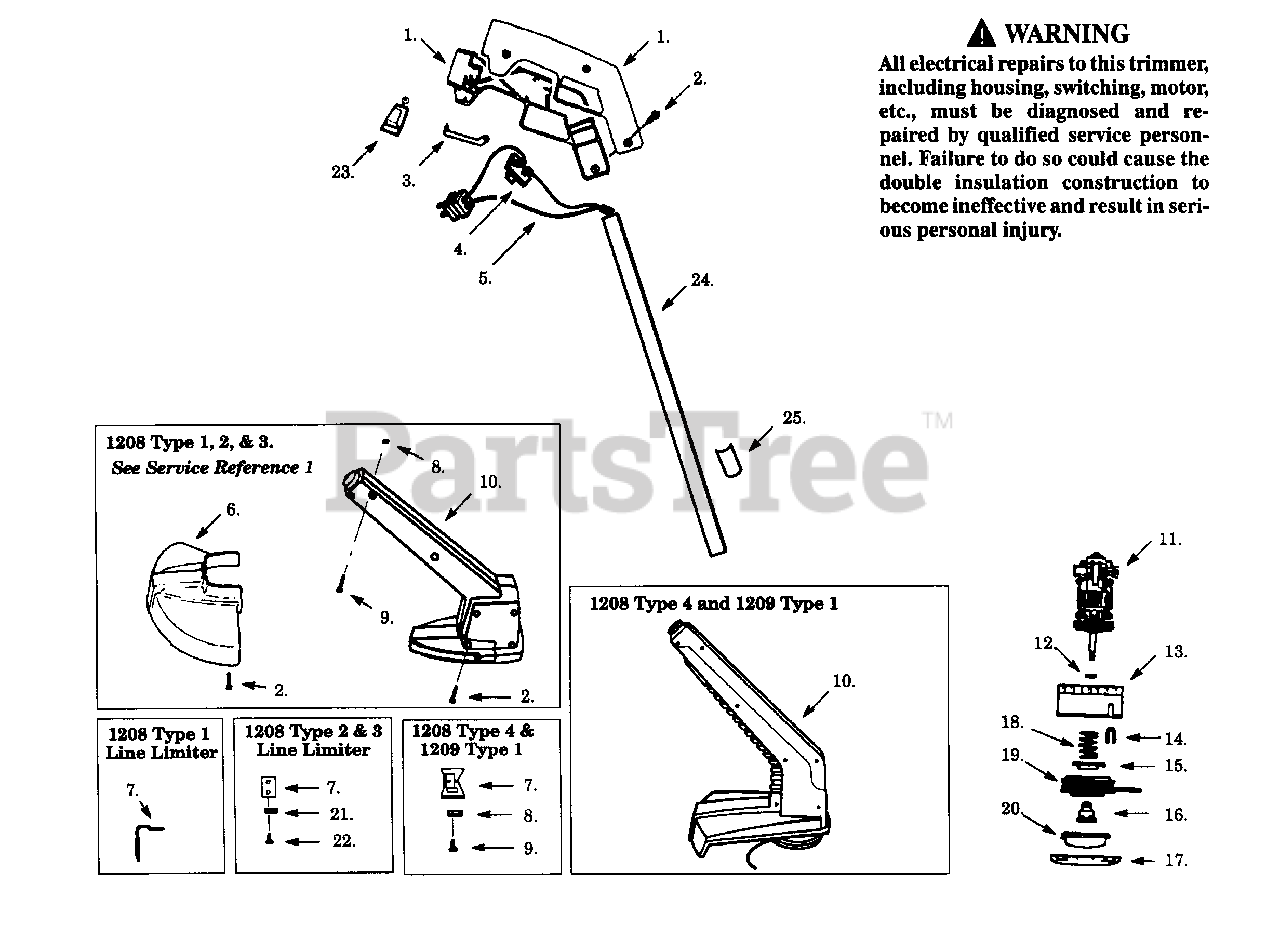

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 530347598

Handle Set

$

$

Not available

2

Poulan 530352036

Screw

$0.99

$

Usually ships in 3-10 days

0

3

Poulan 530347654

Trigger

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530347897

On/Off Switch

$

$

Not available

5

Poulan 530401656

Wiring Harness

Note: (Incl. 4)

$

$

Not available

6

Shield, 1208 Type 1 See Service Ref. 1

Note: No longer available.

$

$

Not available

6

Poulan 530351803

Shield, 1208 Type 2 & 3

$10.99

$

Usually ships in 3-10 days

0

7

Poulan 530350362

Line Limiter, 1208 Type 1

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530351802

Line Limiter, 1208 Type 2 & 3

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 534958001

Line Limiter, 1208 Type 4

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 534938002

Line Limiter, 1209 Type 1

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 534790500

Nut

$3.49

$

In Stock, Qty 6

0

9

Poulan 530348050

Screw

$0.99

$

Usually ships in 3-10 days

0

10

Motor Housing Set, 1208 Type 1-See Service Ref. 1

Note: No longer available.

$

$

Not available

10

Poulan 530351808

Motor Housing Set, 1208 Type 2

$18.99

$

Usually ships in 3-10 days

0

10

Poulan 530400113

Motor Housing Set, 1208 Type 3

$10.99

$

Usually ships in 3-10 days

0

10

Poulan 530036713

Motor Housing Set, 1208 T4 & 1209T1

$13.99

$

Usually ships in 3-10 days

0

11

Poulan 530347695

Motor Assembly, 1208 Type 1 & 2

$

$

Not available

11

Poulan 530400772

Motor Assembly, 1208 Type 3 & 4, 1209 Type 1

$

$

Not available

12

Poulan 530001717

Washer

$3.99

$

In Stock, only 1 left!

0

13

Poulan 530347573

Hub

$

$

Not available

14

Poulan 530340594

Line Saver

$1.99

$

Usually ships in 3-10 days

0

15

Poulan 530340732

Spring Cap

$1.99

$

Usually ships in 3-10 days

0

16

Poulan 530350366

Drive Gear

$4.99

$

In Stock, only 1 left!

0

17

Poulan 530340591

Cover

$

$

Not available

18

Poulan 530340006

Spring

$3.99

$

In Stock, only 1 left!

0

19

Poulan 952701521

Spool

Note: (Incl. Line)

$

$

Not available

20

Poulan 530340592

Tap Button

$

$

Not available

21

Poulan 530351801

Blade Cover

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 530351800

Screw

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530347653

Cord Retainer

$

$

Not available

24

Poulan 530400270

Tube w/decal

$8.99

$

Usually ships in 3-10 days

0

25

Poulan 530400274

Warning Decal

$

$

Not available

Poulan 530083568

Operator's Manual

Note: Not Shown.

$

$

Not available

Poulan 530401368

Carton Contents Bag

Note: Not Shown.

$

$

Not available
